X-AI 32 01 3 Product Description
HI 801 021 E Rev. 4.00 Page 27 of 58
3.7 System Cable
The system cables are used to wire the connector boards with the field zone via field
termination assemblies or inline terminals.
Identical Cable Plugs

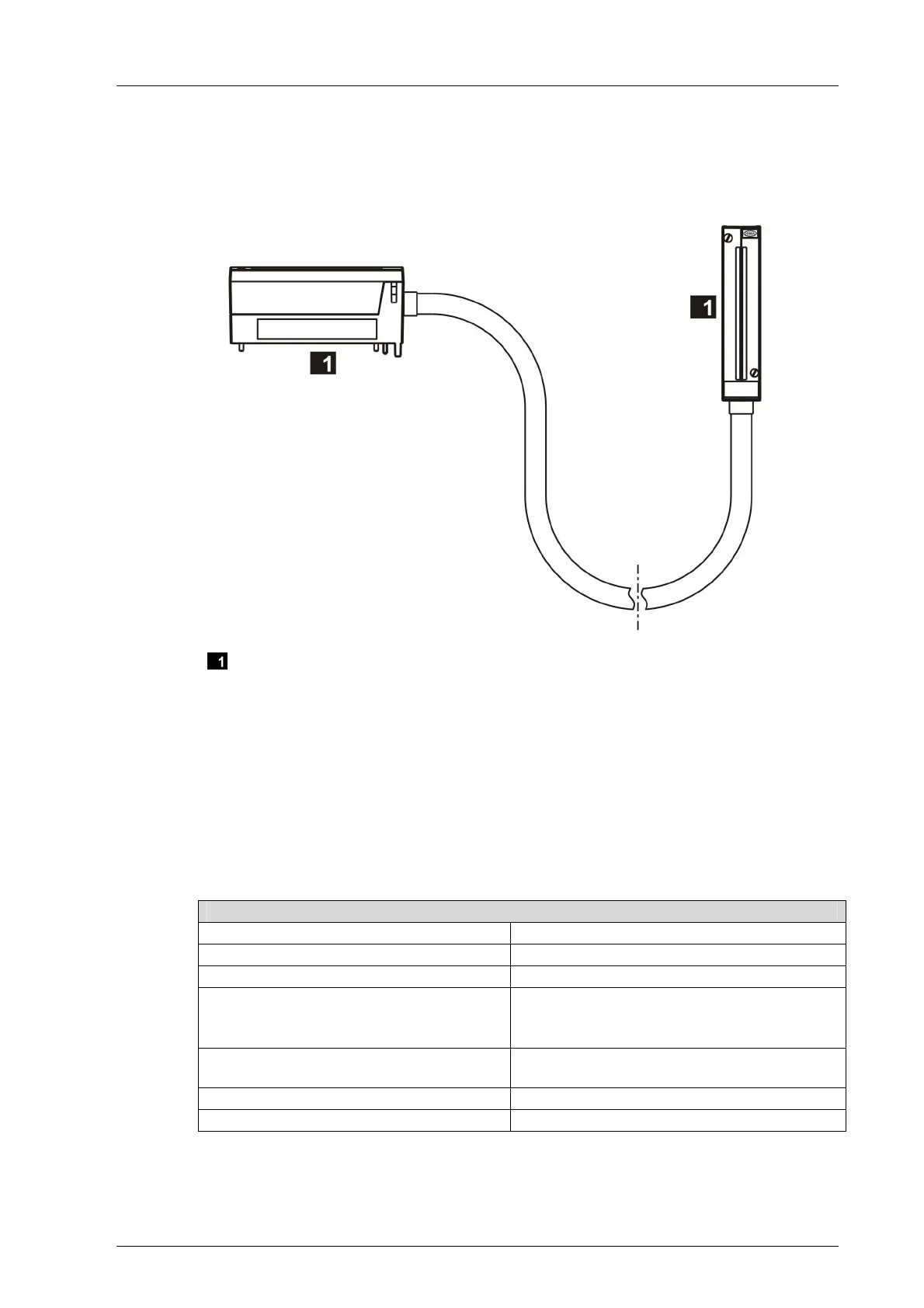

Figure 9: System Cable
Depending on the type of connector board, two different types of system cables are
available.
3.7.1 System Cable X-CA 005
The X-CA 005 system cable is used to connect the X-CB 008 03/04/07 and
X-CB 019 03/04 connector boards to the field zone via field termination assemblies or inline
terminals.
General
Cable LIYCY-TP 38 x 2 x 0.25 mm²
Wire Finely stranded
Average outer diameter (d) approx. 16.8 mm
Minimum bending radius
Fixed laying
Flexible application
5 x d
10 x d
Combustion behavior
Flame resistant and self-extinguishing in
accordance with IEC 60332-1-2, -2-2
Length 5…30 m
Color coding Based on DIN 47100, see Table 15.
Table 17: Cable Data X-CA 005
