HIMA X-AI 32 01 User Manual

4 Start-up X-AI 32 01
Page 44 of 58 HI 801 021 E Rev. 4.00
4.4.2 Wiring Transmitters via Field Termination Assembly
Passive and active two-wire transmitters are connected via the X-FTA 002 01 as described
in
Figure 17:. For further information, refer to the X-FTA 002 01 Manual (HI 801 117 E).
AI-
S-
Connector Board
S1+
AI1+
AI1_R+
X-AI 32 01
Field Termination
Assembly
X-FTA 002 01
A1
B1
AI-
S-
S32+
AI 32 +
AI 32_R+
X-AI 32 01
B32
C32
1
3
2
3
2
4
5
6
Passive Two-Wire Transmitter
Transmitter Supply
Analog Input
System Cable with Cable Plug
Active Two-Wire Transmitter
External Transmitter Supply

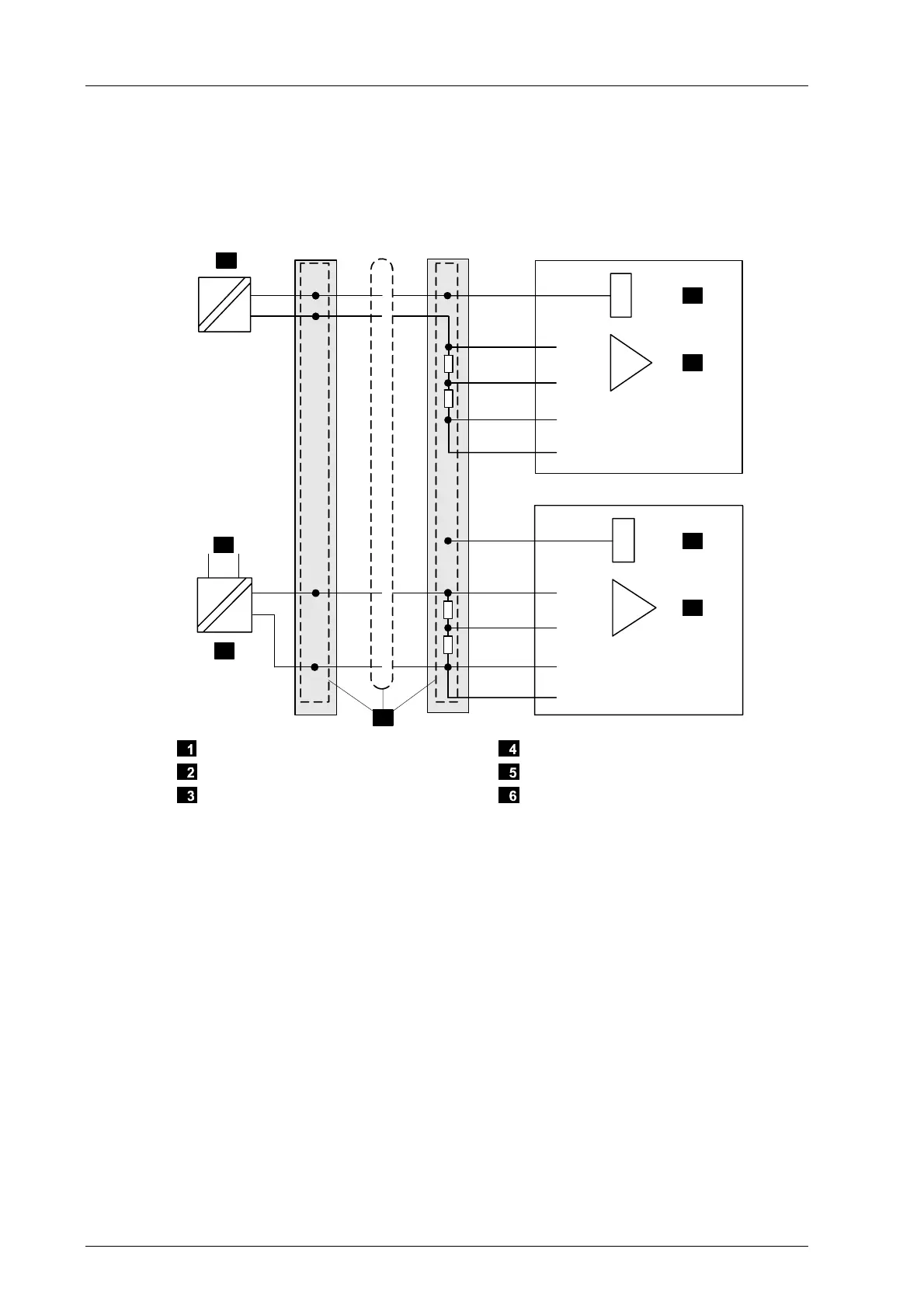

Figure 17: Connection via Field Termination Assembly
