1.2.2 BAT54-F Single

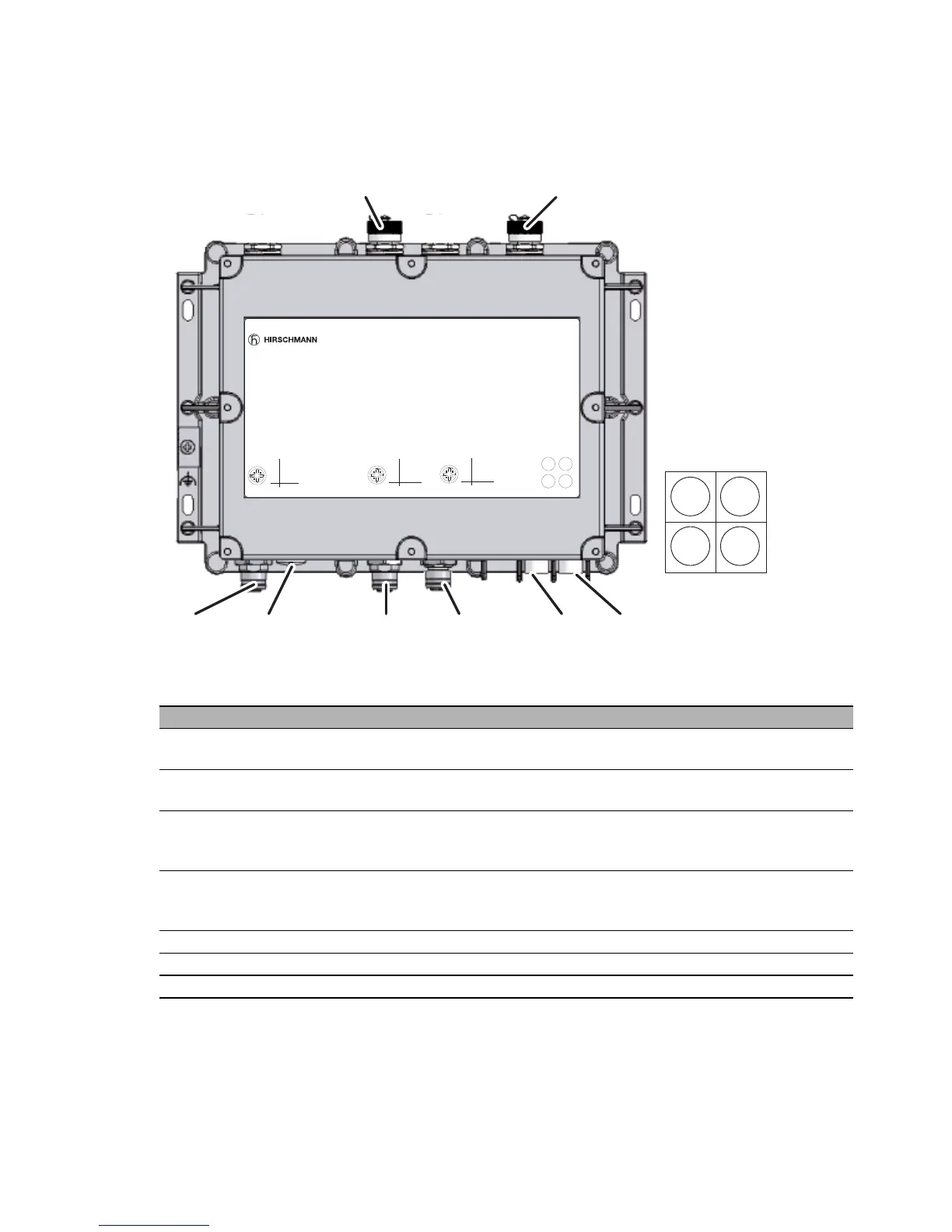

The device is equipped with the following connectors and operation
elements:
Interfaces and display and control elements
1 V.24 Serial interface, 4-pin M12 socket with A coding, data rate min. 19.2 kbit/s, max.
115 kbit/s, connector for serial configuration cable
2 Reset Reset button behind a removable IP67 cap
restarts the device or resets the configuration
3 Ethernet 2 Second Ethernet port
4-pin M12 socket with D coding, 10/100BASE-TX, Autosensing, Power over
Ethernet (PoE), automatic MDI/MDIX recognition (no crossover cable required)
4 Ethernet 1 First Ethernet port
4-pin M12 socket with D coding, 10/100BASE-TX, Autosensing, Power over
Ethernet (PoE), automatic MDI/MDIX recognition (no crossover cable required)
5 LED 4 display elements (power, LS/DA1, LS/DA2, WLAN)
6 AUX Auxiliary connector for the WLAN module for connecting external antennas
7 Main Main connector for the WLAN module for connecting external antennas
