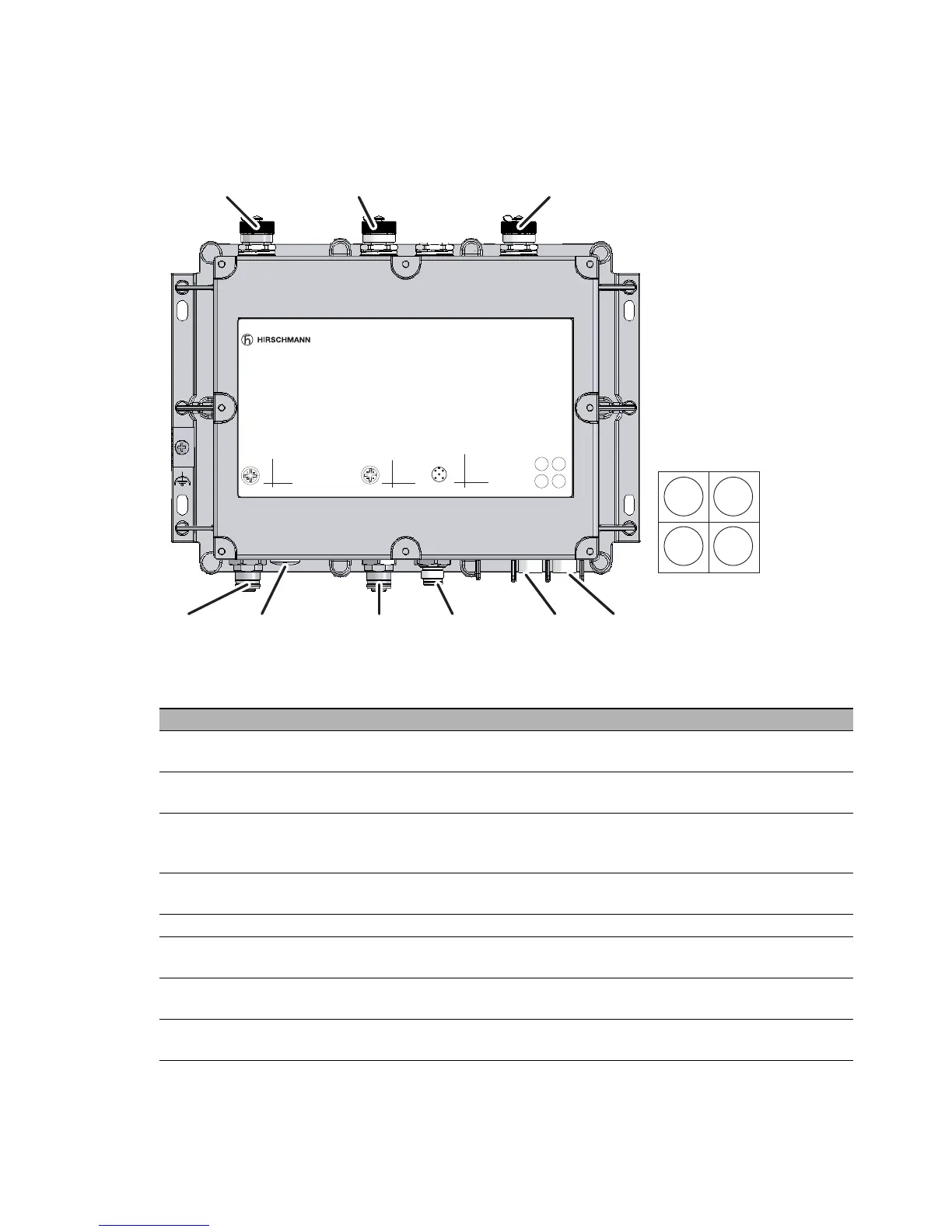

1.2.4 BAT300-F
The device is equipped with the following connectors and operation
elements:
Interfaces and display and control elements
1 V.24 Serial interface, 4-pin M12 socket with A coding, data rate min. 19.2 kbit/s, max.
115 kbit/s, connector for serial configuration cable
2 Reset Reset button behind a removable IP67 cap
restarts the device or resets the configuration
3 Ethernet Ethernet port:
4-pin M12 socket with D coding, 10/100BASE-TX, Autosensing, Power over
Ethernet (PoE), automatic MDI/MDIX recognition (no crossover cable required)
4 Power Power supply connector for safety extra-low voltage (SELV/PELV), 5-pin M12
plug
5 LED 4 display elements (power, LS/DA, WLAN, NC)
6 Antenna 3 Main connector for the WLAN module for connecting the third external
antenna
7 Antenna 2 Main connector for the WLAN module for connecting the second external
antenna
8 Antenna 1 Main connector for the WLAN module for connecting the first external
antenna
4
1
2
3
1
2
3
4
Pin
TX
RX
N.C.
GND
Function
V.24
1
2
3
4
Pin
TD+
RD+
TD-
RD-
Function
4
1
2
3
Ethernet
43
2
1
5
1
2
3
4
5
Pin
+24V DC
0 V
0 V
+24V DC
N.C.
Function
Reset
Power
LED
Antenna 1
Antenna 2
Antenna 3
BAT300-F
IP67 WLAN Access Point
LS/DAP
Uin : 24 VDC
Uin : 48 VDC
CLASS 2
CLASS 2
Iin : 420 mA
Iin : 170 mA (PoE)
WLAN
NC
8 7 6
31 42 5 5
BAT300-F
LS/DA
Power
WLAN
NC
