2.12.2 10/100 Mbit/s twisted pair connection
In the BAT-Rail, the 10/100 Mbit/s twisted pair connections are RJ45
sockets.
10/100 Mbit/s ports enable the connection of terminal devices or independent
network segments according to the IEEE 802.3 100BASE-TX / 10BASE-T
standard.
These ports support:
Autonegotiation
Autopolarity
Autocrossing (if autonegotiation is activated)
100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode
State on delivery: autonegotiation activated.
The socket housing is electrically connected to the bottom panel.

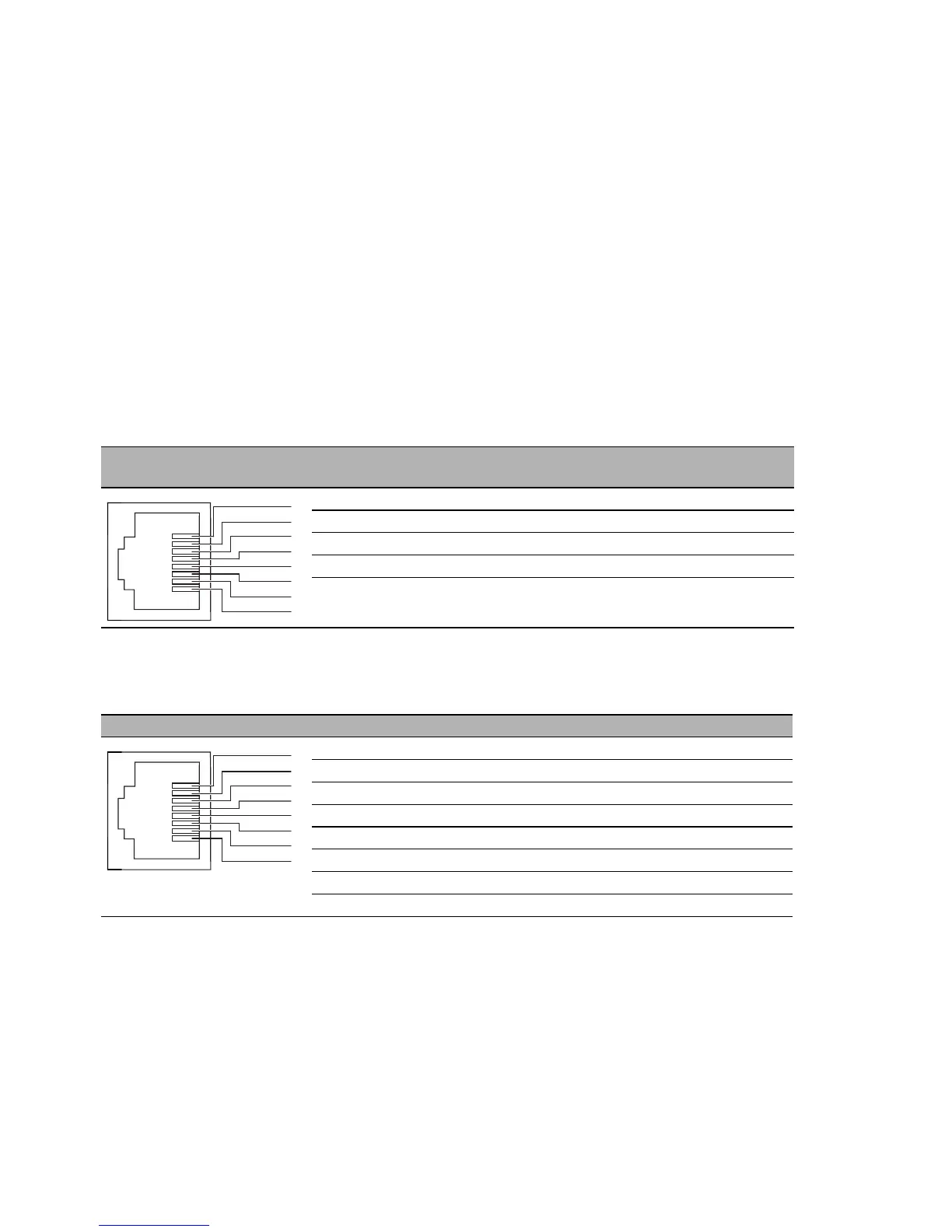

Figure Pin Data PoE voltage input
1 RD+ Receive Data + V+
2 RD- Receive Data - V+
3 TD+ Transmit Data + V-
6 TD- Transmit Data - V-
4,5,7,8 Not used
Table 8: Pin assignment of a TP/TX interface in MDI-X mode, RJ45 socket. PoE
voltage input via the wire pairs transmitting the signal (phantom voltage).
Figure Pin Data PoE voltage input
1 RD+ Receive Data + —
2 RD- Receive Data - —
3 TD+ Transmit Data + —
4—— V-
5—— V-
6 TD- Transmit Data - —
7—— V+
8—— V+
Table 9: Pin assignment of a TP/TX interface in MDI-X mode, RJ45 socket. PoE
voltage input via the free line pairs (spare pairs).
