Hirschmann BAT series - BAT300-Rail

Installation BAT
Release 05 03/2013
27
1.2.8 BAT300-Rail

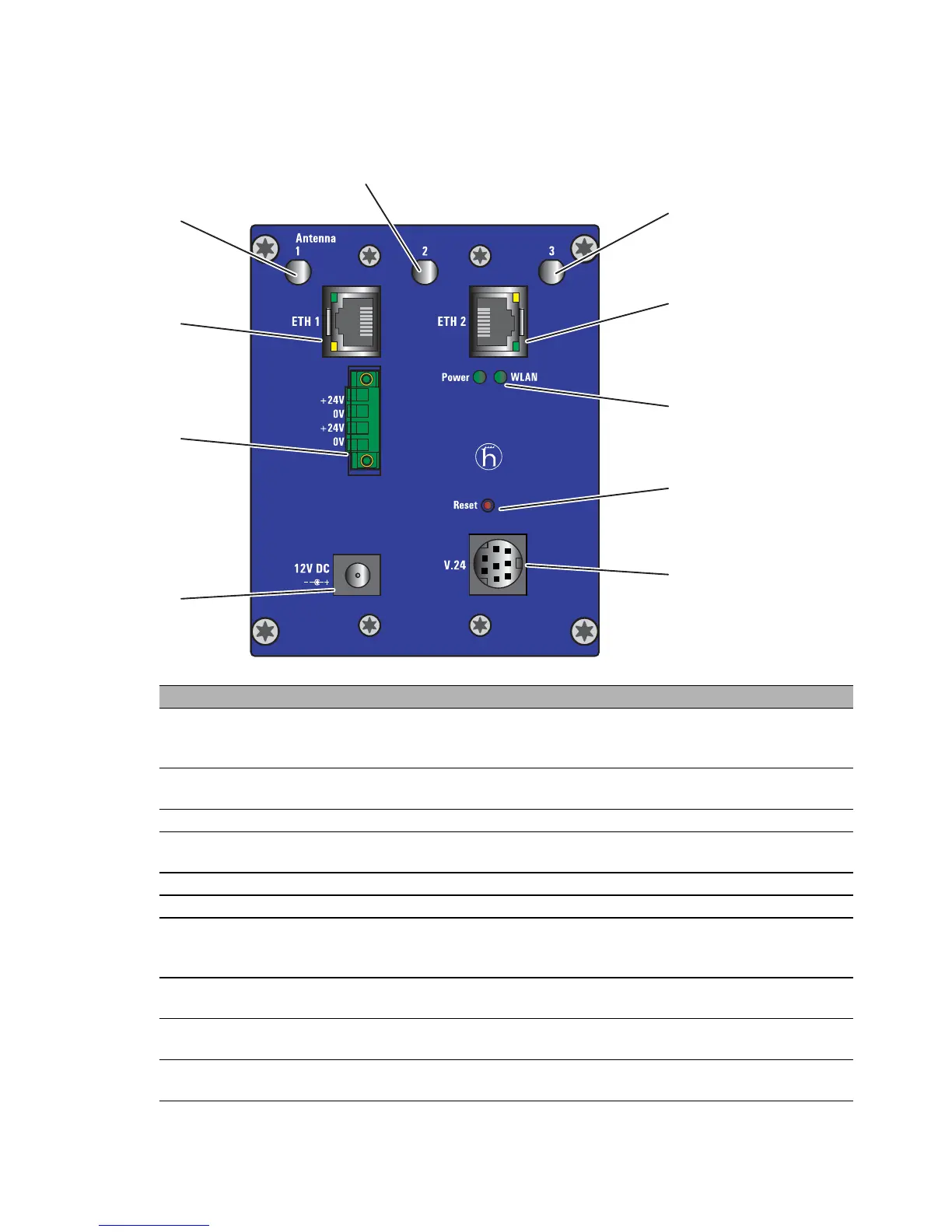

The device is equipped with the following connectors and operation
elements:
Interfaces and display and control elements
1 ETH1 First Ethernet port
10/100BASE-TX, Autosensing, Power over Ethernet (PoE), automatic
MDI/MDIX recognition (no crossover cable required)
2+24V
0V
Power, power supply connector for safety extra-low voltage (SELV/PELV)
3 12V DC Power, power supply connector for safety extra-low voltage (SELV/PELV)
4 V.24 MiniDin serial interface, data rate min. 19.2 kbit/s, max. 115 kbit/s, connector for
serial configuration cable
5 Reset Reset button to restart device or reset the configuration
6 LED 2 display elements (power, WLAN)
7 ETH2 Second Ethernet port
10/100BASE-TX, Autosensing, Power over Ethernet (PoE), automatic
MDI/MDIX recognition (no crossover cable required)
8 Antenna 3 Main connector for the WLAN module for connecting the third external
antenna
9 Antenna 2 Main connector for the WLAN module for connecting the second external
antenna
10 Antenna 1 Main connector for the WLAN module for connecting the first external
antenna
BAT300-Rail
9
10
1
2
3
4
7
8
5
6
