Hirschmann BAT series User Manual

Installation BAT
Release 05 03/2013
39
2.8.2 Connections for external antennas on BAT-Rail
 BAT54-Rail
The devices have four Reverse satellite master antenna (SMA)
connectors for connecting external antennas.

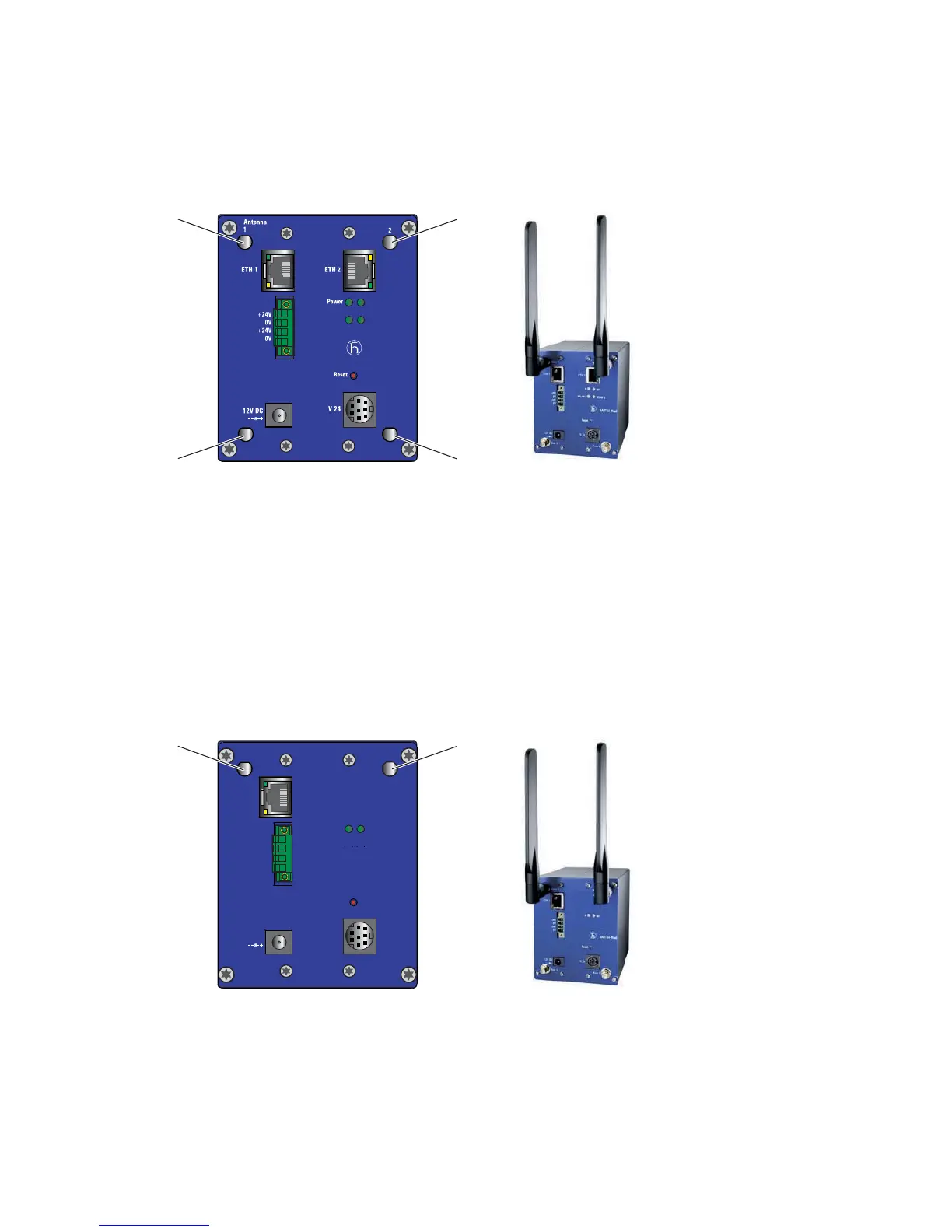

Figure 12: Connections for external antennas on BAT54-Rail
1 - Antenna 1
2 - Antenna 2
3 - Aux1
4 - Aux2
 BAT54-Rail Single
The devices have two Reverse SMA connectors for connecting external
antennas.
Figure 13: Connections for external antennas on BAT54-Rail Single
1 - Main
2 - Aux
BAT54-Rail
WLAN2
WLAN1
M1
Aux1
Aux2
1
3
4
2
x
BAT54-Rail Single
Main Aux
Reset
V.24
12V DC
+24V
0V
+24V
0V
ETH
WLAN
P
1
2
