2.10 Grounding
2.10.1 BAT-F
A separate anti-torsion screw connector on the housing is provided for the
functional ground (FE) . It is indicated by the functional ground symbol ( ).
The functional ground is electrically connected to the switching ground and
to the metal housing of the device.
For the ground wire, use a copper wire with a minimum cross section of
4mm
2
to 6 mm
2
(for North America: AWG 11 to AWG 9) (including any
terminal sleeve used), and implement the grounding of the device via the
screw connector.
Clamp the ground wire between the two rectangular fastening plates - as
shown in the figure below - and fasten the screw.
Make sure that the stripped part of the ground wire is not in direct contact
with the aluminum housing of the device.

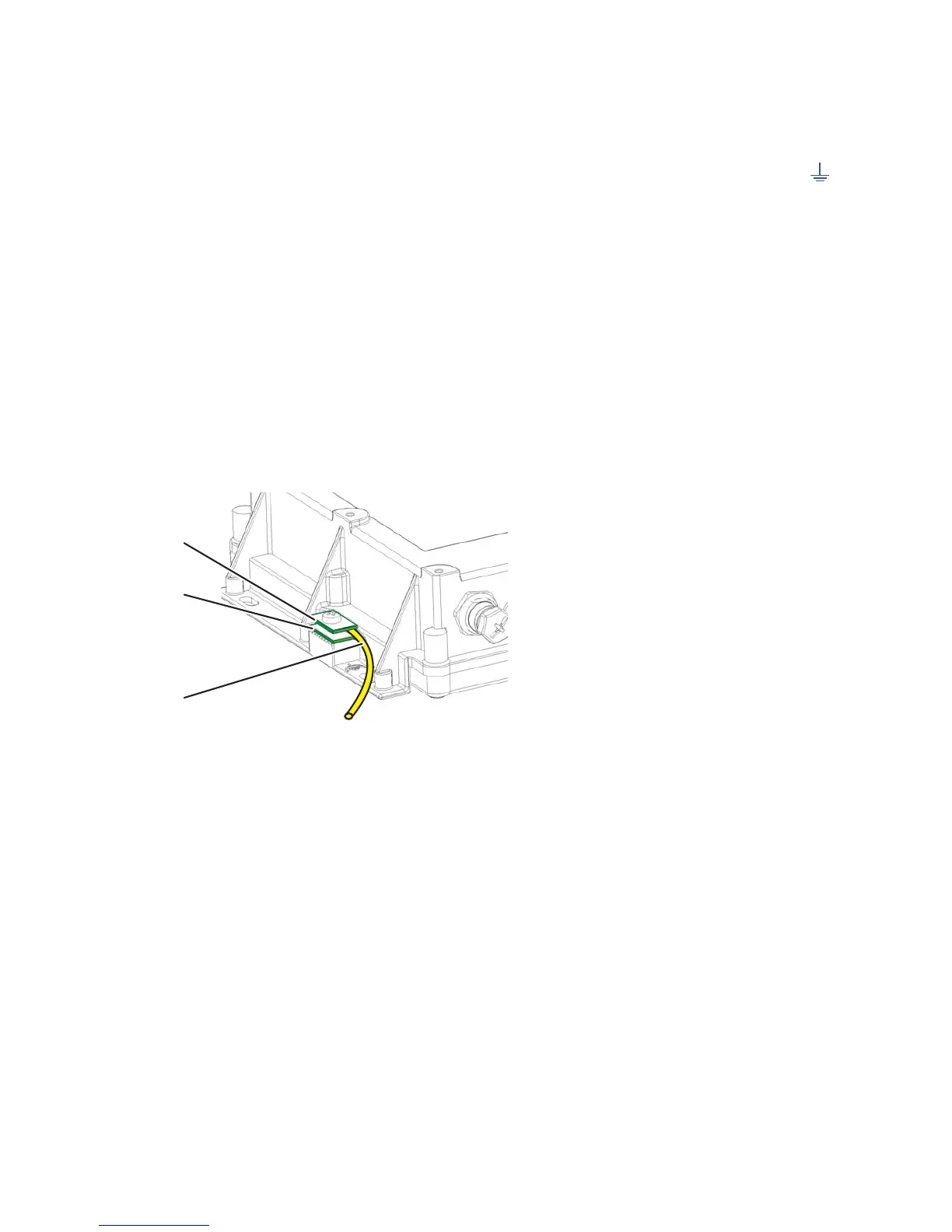

Figure 16: BAT54-F ground connection
1 - Fastening plates for ground wire
2 - Ground wire
2.10.2 BAT-Rail
The lower panel of the device housing is grounded by means of the DIN rail.
