Hirschmann BAT series User Manual

24
Installation BAT
Release 05 03/2013

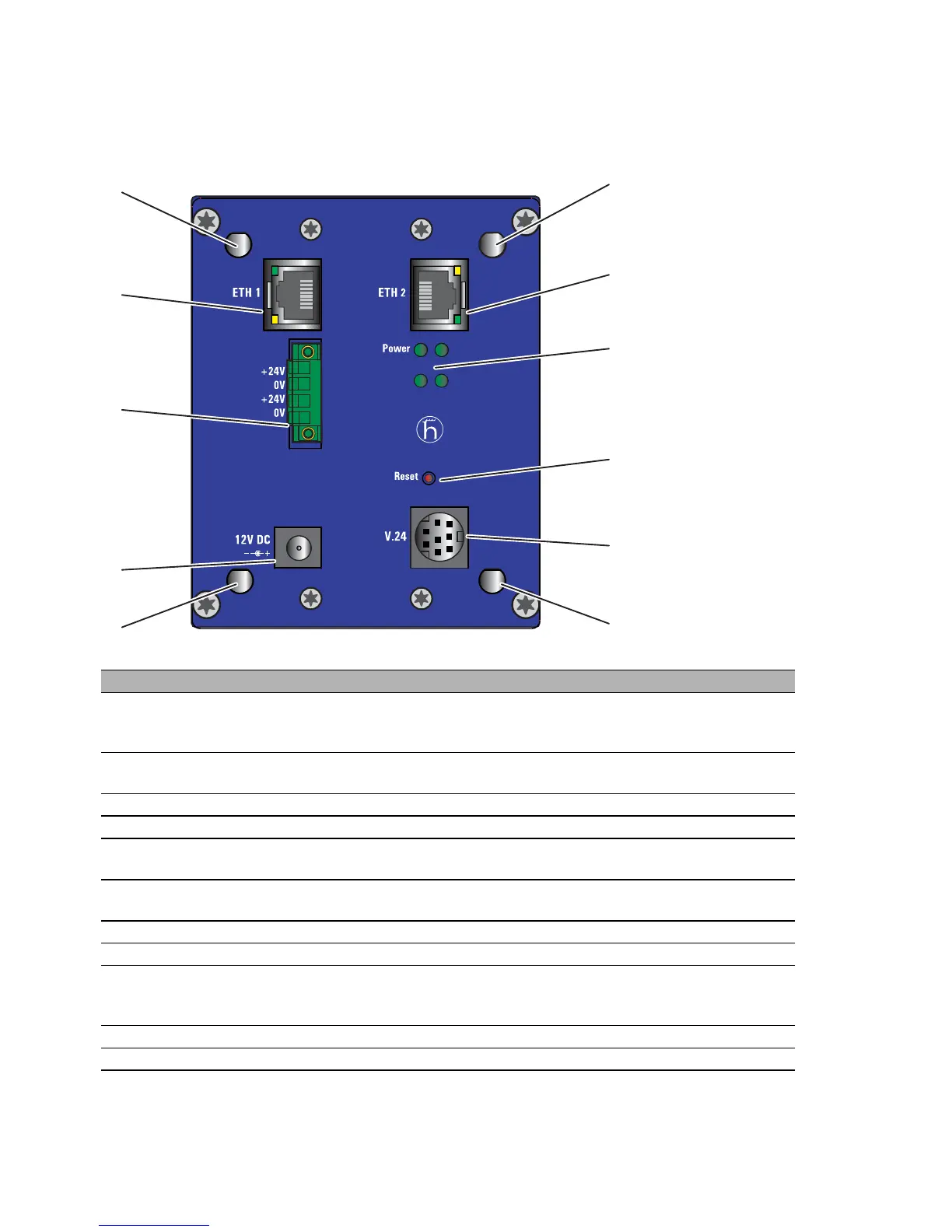

1.2.5 BAT54-Rail
The device is equipped with the following connectors and operation
elements:
Interfaces and display and control elements
1 ETH1 First Ethernet port
10/100BASE-TX, Autosensing, Power over Ethernet (PoE), automatic
MDI/MDIX recognition (no crossover cable required)
2 +24V
0V
Power, power supply connector for safety extra-low voltage (SELV/PELV)
3 12V DC Power, power supply connector for safety extra-low voltage (SELV/PELV)
4 AUX 1 Auxiliary connector for the first WLAN module for connecting external antennas
5 AUX 2 Auxiliary connector for the second WLAN module for connecting external
antennas
6 V.24 MiniDin serial interface, data rate min. 19.2 kbit/s, max. 115 kbit/s, connector for
serial configuration cable
7 Reset Reset button to restart device or reset the configuration
8 LED 4 display elements (power, M1, WLAN1, WLAN2)
9 ETH2 Second Ethernet port
10/100BASE-TX, Autosensing, Power over Ethernet (PoE), automatic
MDI/MDIX recognition (no crossover cable required)
10 Main 2 Main connector for the second WLAN module for connecting external antennas
11 Main 1 Main connector for the first WLAN module for connecting external antennas
BAT54-Rail
WLAN2
WLAN1
M1
Aux1
Aux2
Main 1 Main 2
11
1
2
3
4
5
6
9
10
7
8
