Hirschmann BAT series User Manual

Installation BAT
Release 05 03/2013
25

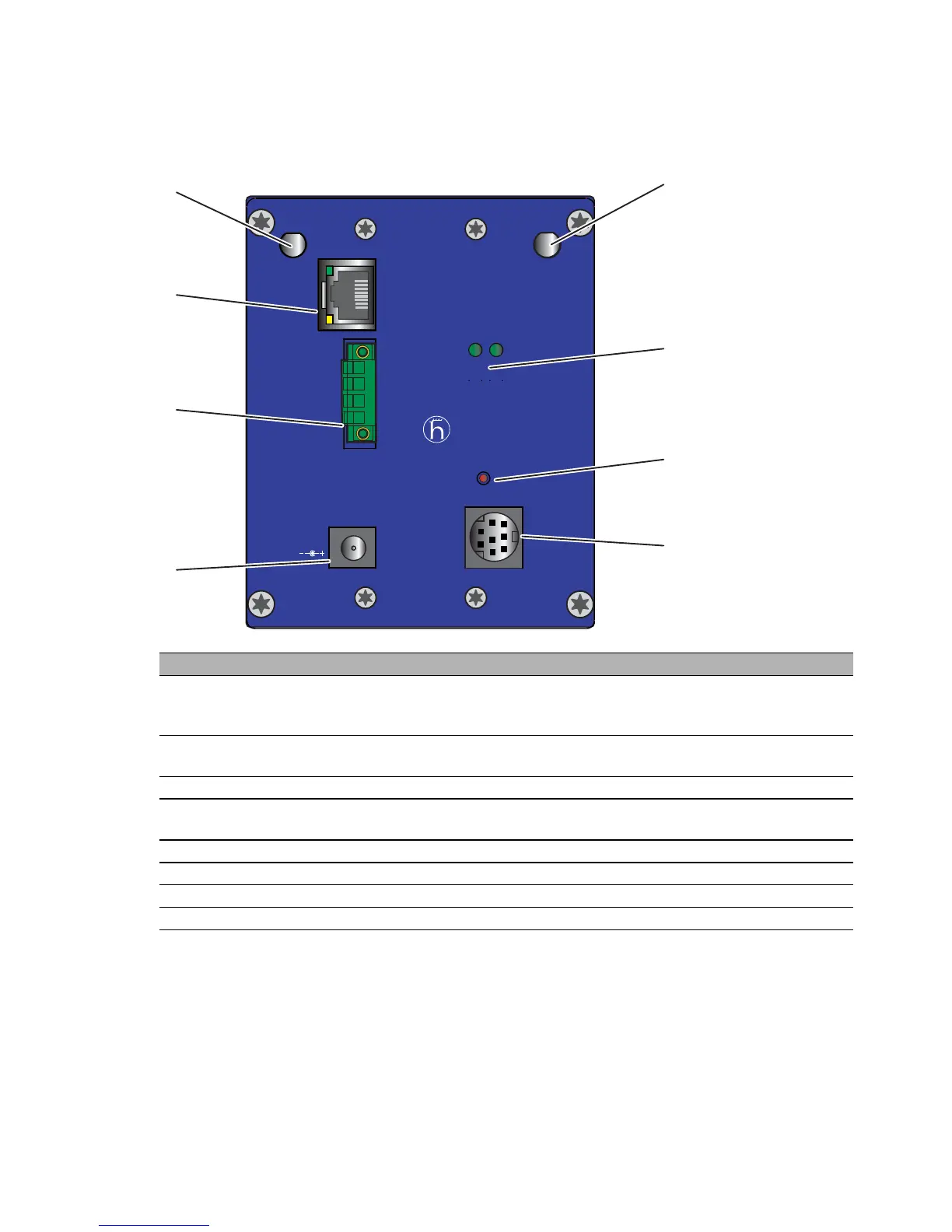

1.2.6 BAT54-Rail Single
The device is equipped with the following connectors and operation
elements:
Interfaces and display and control elements
1 ETH Ethernet port:
10/100BASE-TX, Autosensing, Power over Ethernet (PoE), automatic
MDI/MDIX recognition (no crossover cable required)
2+24V
0V
Power, power supply connector for safety extra-low voltage (SELV/PELV)
3 12V DC Power, power supply connector for safety extra-low voltage (SELV/PELV)
4 V.24 MiniDin serial interface, data rate min. 19.2 kbit/s, max. 115 kbit/s, connector for
serial configuration cable
5 Reset Reset button to restart device or reset the configuration
6 LED 2 display elements (power, WLAN)
7 AUX Auxiliary connector for the WLAN module for connecting external antennas
8 Main Main connector for the WLAN module for connecting external antennas
8
1
2
3
4
7
5
6
x
BAT54-Rail Single
Main Aux
Reset
V.24
12V DC
+24V
0V
+24V
0V
ETH
WLAN
P
