Hirschmann BAT series User Manual

22
Installation BAT
Release 05 03/2013

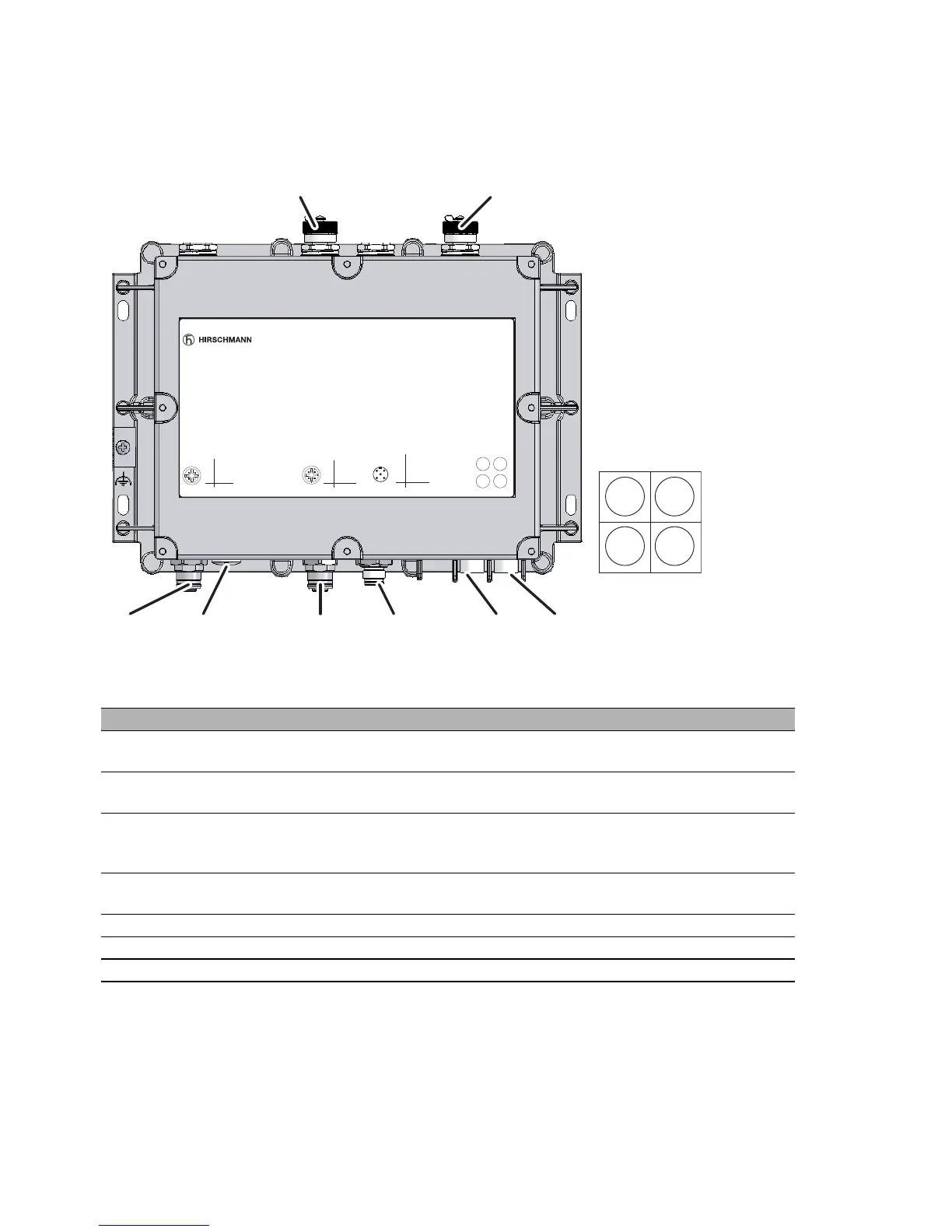

1.2.3 BAT54-F Client
The device is equipped with the following connectors and operation
elements:
Interfaces and display and control elements
1 V.24 Serial interface, 4-pin M12 socket with A coding, data rate min. 19.2 kbit/s, max.
115 kbit/s, connector for serial configuration cable
2 Reset Reset button behind a removable IP67 cap
restarts the device or resets the configuration
3 Ethernet Ethernet port:
4-pin M12 socket with D coding, 10/100BASE-TX, Autosensing, Power over
Ethernet (PoE), automatic MDI/MDIX recognition (no crossover cable required)
4 Power Power supply connector for safety extra-low voltage (SELV/PELV), 5-pin M12
plug
5 LED 4 display elements (power, LS/DA, WLAN, NC)
6 AUX Auxiliary connector for the WLAN module for connecting external antennas
7 Main Main connector for the WLAN module for connecting external antennas
4
1
2
3
1
2
3
4
Pin
TX
RX
N.C.
GND
Function
V.24
Reset
LED
Main
AUX
BAT54-F Client
IP67 WLAN Access Point
Uin : 24 VDC
Uin : 48 VDC
CLASS 2
CLASS 2
Iin : 420 mA
Iin : 170 mA (PoE)
WLAN
1
2
3
4
Pin
TD+
RD+
TD-
RD-
Function
4
1
2
3
Ethernet
43
2
1
5
1
2
3
4
5
Pin
+24V DC
0 V
0 V
+24V DC
N.C.
Function
Power
LS/DAP
NC
7 6
31 42 5 5
BAT54-F Client
LS/DA
Power
NC
WLAN
