36
Installation MSP30/32/40/42 and MSM20/22/24/40/42/46/50
Release
12
06/2018
Media module MSM50
Pin Signal, terminal Function
1 OFF-1 NC contact, channel 1
2 CENTER-1 Center contact, channel 1
3 ON-1 NO contact, channel 1
4 OFF-2 NC contact, channel 2
5 CENTER-2 Center contact, channel 2
6 ON-2 NO contact, channel 2
7 OFF-3 NC contact, channel 3
8 CENTER-3 Center contact, channel 3
9 ON-3 NO contact, channel 3
10 OFF-4 NC contact, channel 4
11 CENTER-4 Center contact, channel 4
12 ON-4 NO contact, channel 4
Table 22: Pin assignment of the digital outputs
Pin Signal, terminal Function
13 AUX_GND Reference potential
14 AUX_+24 V Auxiliary voltage
Table 23: Pin assignment of the auxiliary voltage connection
Pin Signal, terminal Function
15 IN-4-GND Reference potential, channel 4
16 IN-4 Signal input, channel 4
17 IN-3-GND Reference potential, channel 3
18 IN-3 Signal input, channel 3
19 IN-2-GND Reference potential, channel 2
20 IN-2 Signal input, channel 2
21 IN-1-GND Reference potential, channel 1
22 IN-1 Signal input, channel 1
Table 24: Pin assignment of the digital inputs

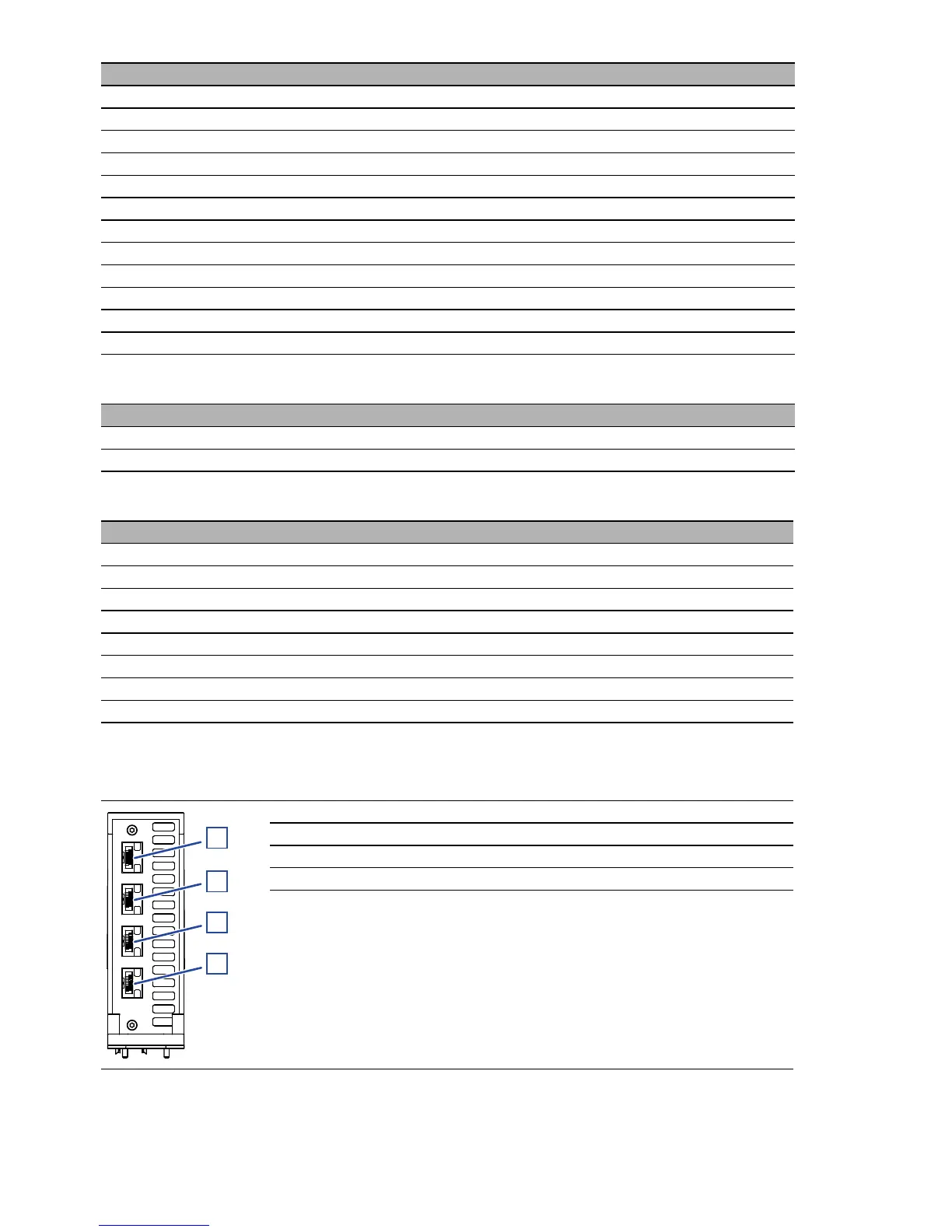

1 Port 1 SFP slot
2 Port 2 SFP slot
3 Port 3 SFP slot
4 Port 4 SFP slot
Table 25: MSM50-Q6Q6Q6Q6...
