Installation MSP30/32/40/42 and MSM20/22/24/40/42/46/50
Release
12
06/2018
59
2.7.2 Device variants featuring customer-specific version
with the characteristic value HX
Proceed as follows:
Remove the protective cap from the slot for the media module on the
device.
Mount the media module on the slot.

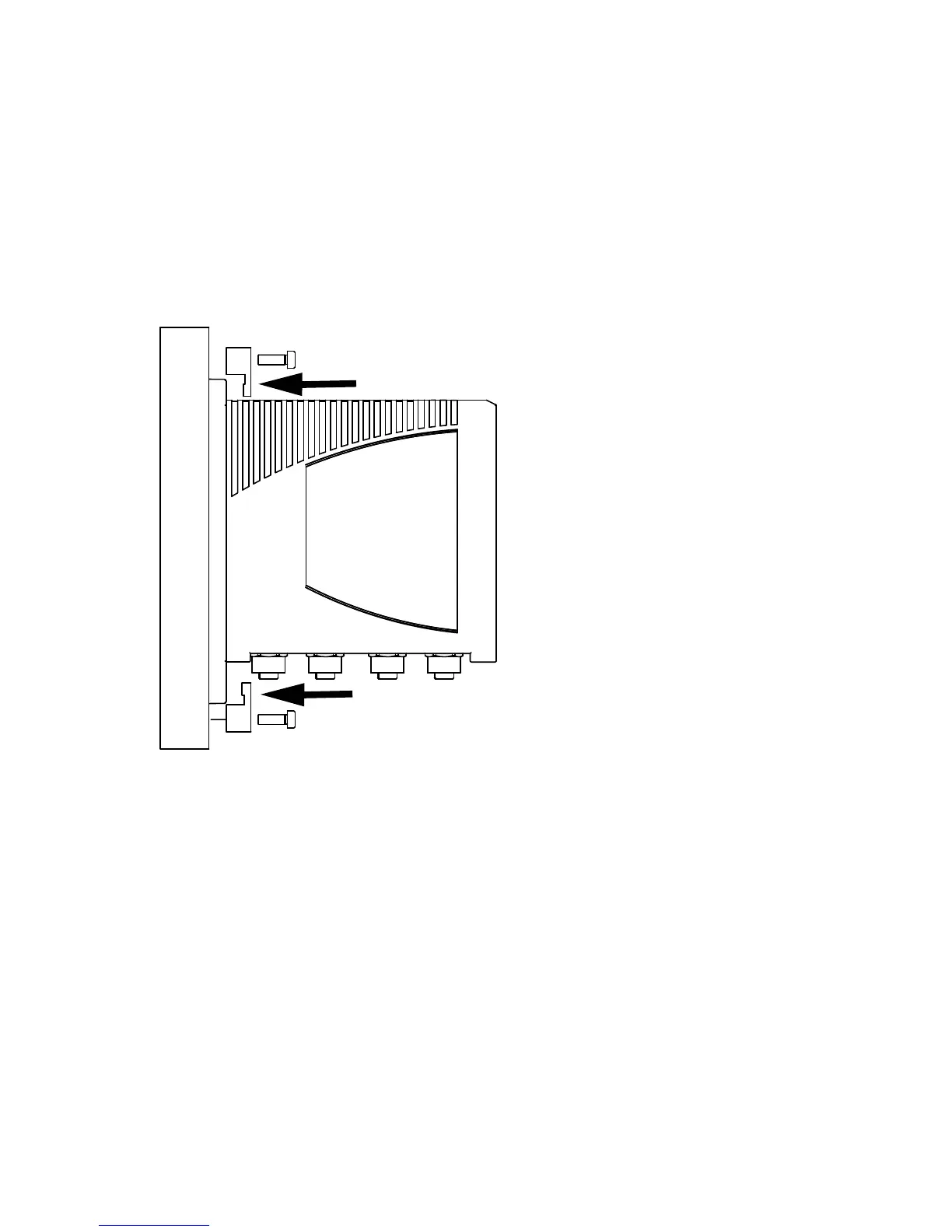

Fasten the device with the hardware elements provided by screwing to
the basic device.
You find the prescribed tightening torque in chapter:
“General technical data” on page 72
Note: Media modules with characteristic value HX are exclusively designed
for installation on MSP basic devices with characteristic value HX.
2.7.3 Connecting the external PoE supply voltage of media
module MSM46
Remove the power connector from the device.
Connect the protective conductor with the clamp.
Connect the PoE voltage to the 3-pin terminal block.
You find the prescribed tightening torque in chapter:
“General technical data” on page 72
The supply voltage inputs are designed for operation with safety extra-low
voltage. Connect only SELV circuits with voltage restrictions in line with IEC/
EN 60950-1 to the supply voltage connections.
