Hirschmann MSP30 User Manual

58
Installation MSP30/32/40/42 and MSM20/22/24/40/42/46/50
Release 12 06/2018
2.7.1 Device variants featuring customer-specific version
with the characteristic value HH
Proceed as follows:
 Remove the protective cap from the slot for the media module on the
device.

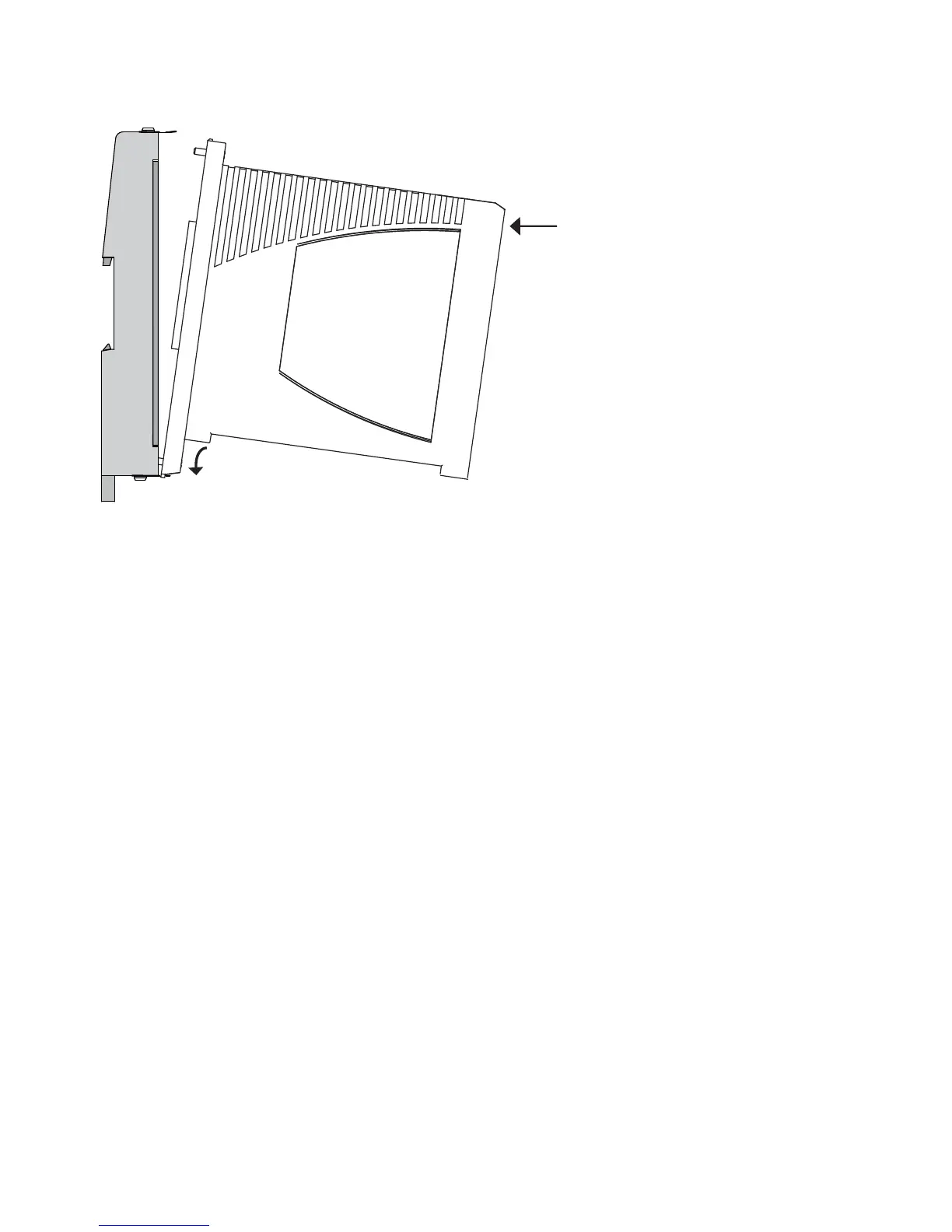

 Insert the latch on the bottom of the media module into the opening in the
lower positioning bar of the basic device.
 Press the media module against the basic device until the latch on the top
of the media module snaps into the upper female multipoint connector.
 Fasten the media modules with 2 screws in the backplane.
You find the prescribed tightening torque in chapter:
“General technical data” on page 72
Note: On the basic device MSP40/42, the media module slot 1 is coded
differently from the other slots. Only MSM50 media modules can be installed
on this media module slot.
1
2
