68
Installation MSP30/32/40/42 and MSM20/22/24/40/42/46/50
Release 12 06/2018
7 Disassembly
7.1 Removing an SFP transceiver (optional)

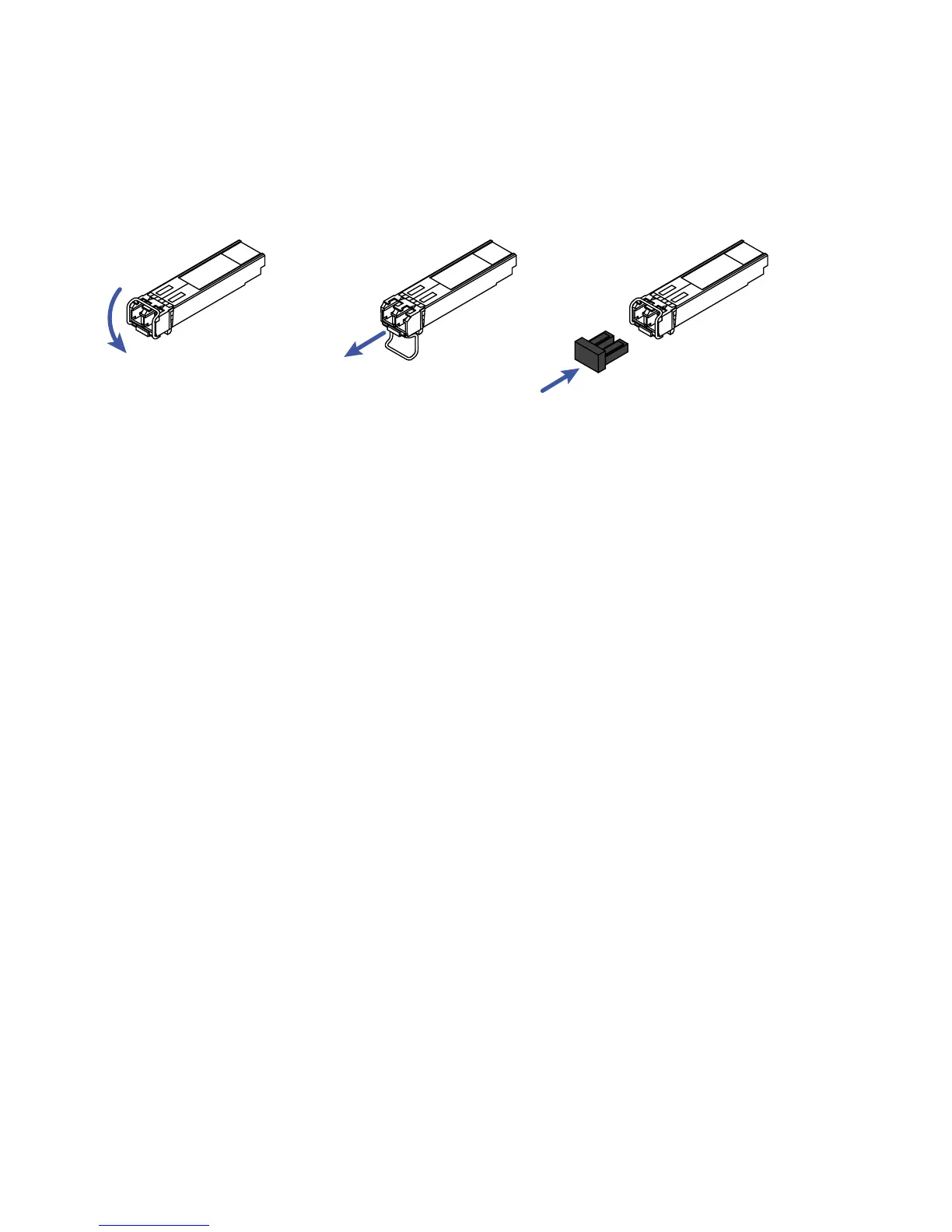

Figure 7: Removing an SFP transceiver: Removal sequence
Proceed as follows:
 Open the locking mechanism of the SFP transceiver (1).
 Pull the SFP transceiver out of the slot via the open locking
mechanism (2).
 Close the SFP transceiver with the protection cap (3).
7.2 Removing a media module
You have the option to remove the media modules while the device is
operating.
