Hirschmann PowerMICE MM2-4TX1 User Manual

26
PowerMICE
Release 01 04/2014

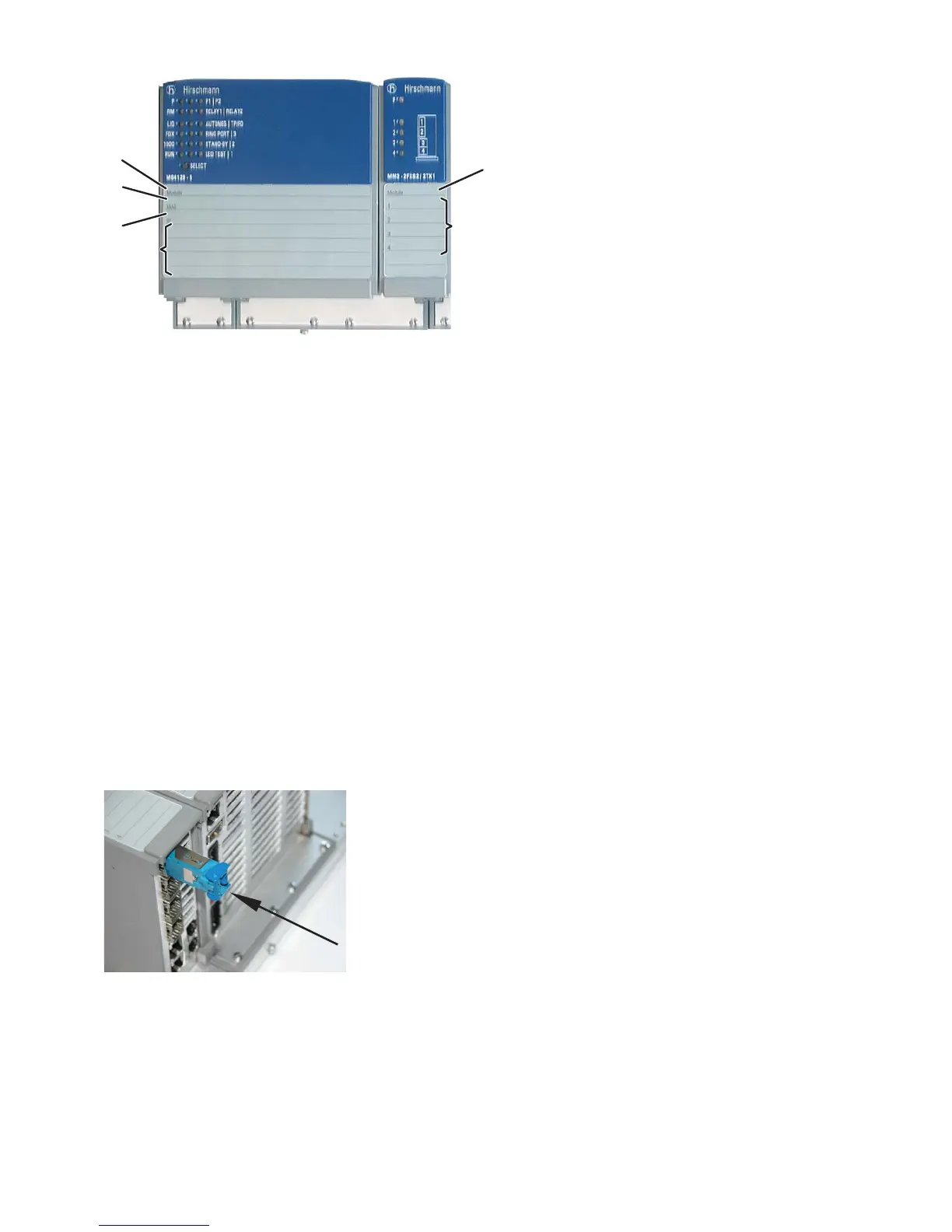

Figure 10: Label areas
1 – Labeling the media modules: name of the module
2 – Labeling the media modules: port assignment of module for each port
3 – Labeling the basic module: additional entries if required
4 – Labeling the basic module: IP address of the device
5 – Labeling the basic module: MAC address of the device
6 – Labeling the basic module: name of the module
 Attach the labels included in the delivery to the basic module and the
media modules as required.
2.2.4 Installing the SFP modules
 To attach an SFP module, first remove the protective cap over the socket.
 Push the SFP module with the lock closed into the socket until it latches
audibly in place.
Note: Only use SFP modules from Hirschmann (see page 54 “Accessories”).
Figure 11: Installing an SFP module
