PowerMICE
Release 01 04/2014
 100 Mbit/s F/O connection
These ports are DSC connectors, ST connectors or MTRJ connectors.
100 MBit/s F/O ports enable the connection of terminal devices or
independent network segments in compliance with the IEEE 802.3
100BASE-FX standard.
These ports support:
 Full or half duplex mode
Delivery state: full duplex FDX
Note: Make sure that the LH ports are only connected with LH ports, SM
ports are only connected with SM ports, and MM ports only with MM ports.
 1000 Mbit/s F/O connection
These ports are SFP slots.
1000 Mbit/s F/O ports enable the connection of terminal devices or
independent network segments according to the IEEE 802.3 1000BASE-
SX/1000BASE-LX standard.
These ports support:
 Autonegotiation
 Full duplex mode
Delivery state: autonegotiation activated
Note: Make sure that the LH ports are only connected with LH ports, SX
ports are only connected with SX ports, and LX ports only with LX ports.
 AUI connection
AUI ports (Attachment Unit Interface) enable you to connect a terminal
device via an AUI cable in accordance with IEEE 802.3-2002. These ports
support:
 SQE test
 DTEPower-Monitor
Delivery condition: Both functions not enabled. The housing of the Sub-D
plug is electrically isolated from the lower panel of the device.

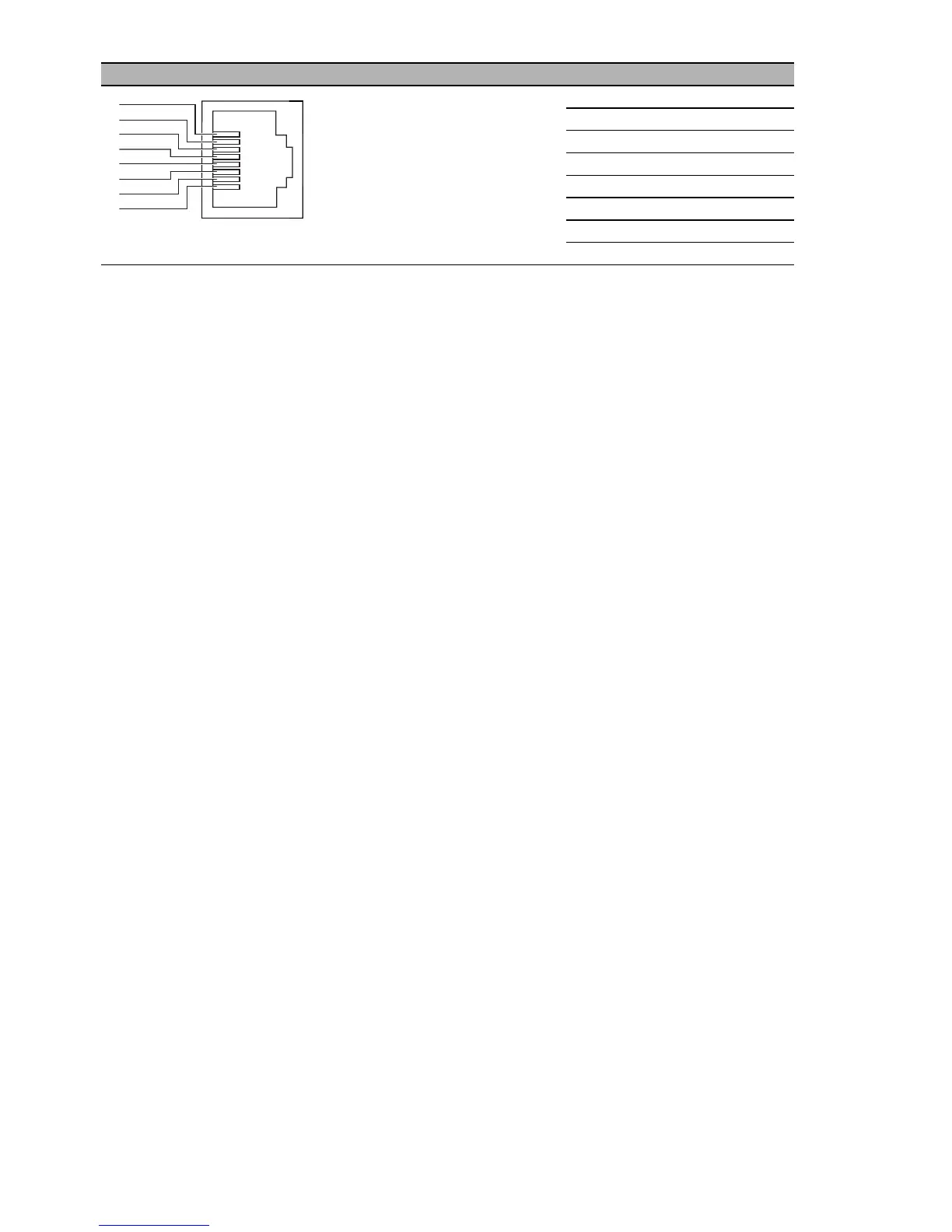

Figure Pin Function
1 BI_DB +
2 BI_DB -
3 BI_DA +
4 BI_DD +
5 BI_DD -
6 BI_DA -
7 BI_DC +
8 BI_DC -
Table 9: Pin assignment of a 1000 Mbit/s TP interface, RJ45 socket
8
7
6
5
4
3
2
1
