PowerMICE
Release
01
04/2014
43

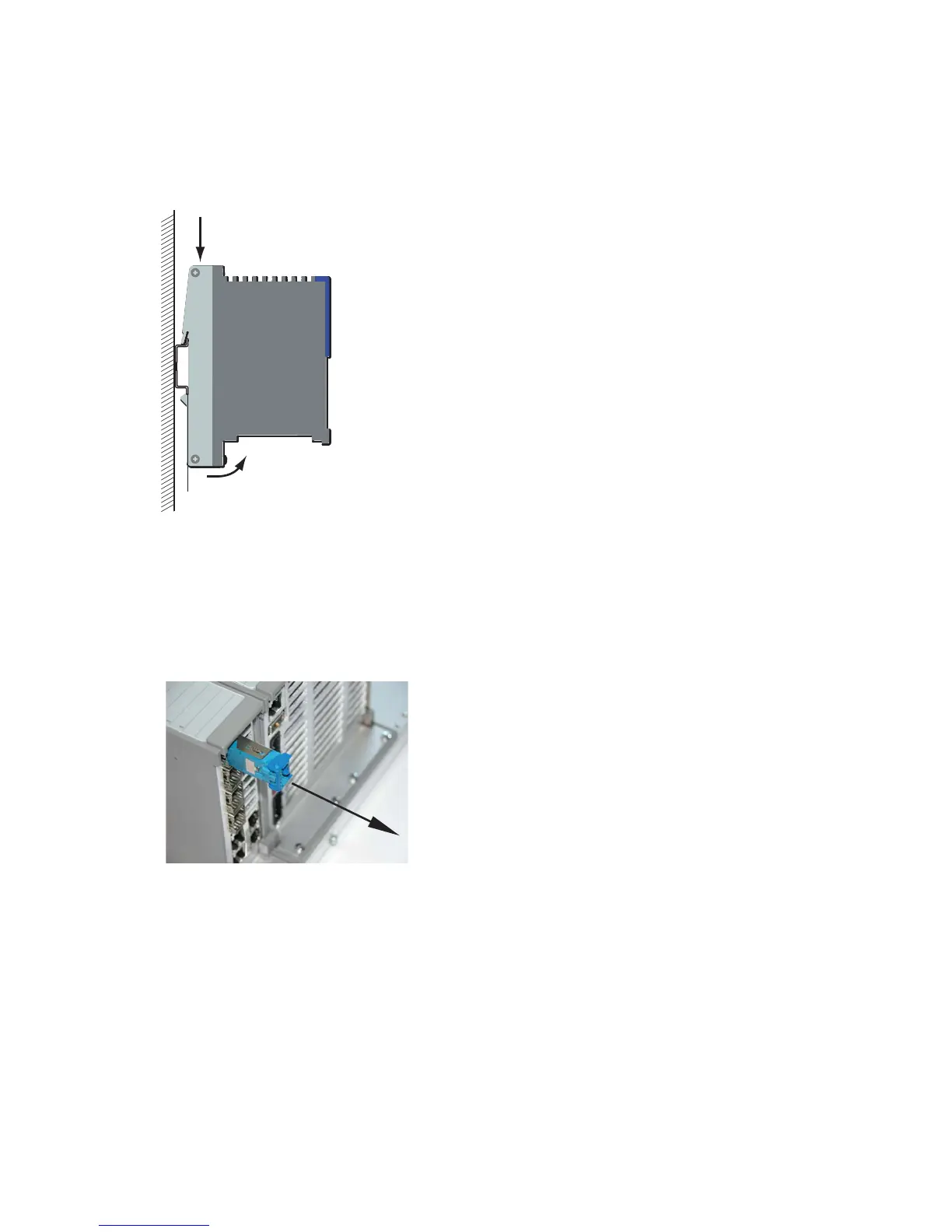

2.6 Disassembly
Disassembling the device
To remove the device from the hat rail, press the device downwards
and pull it out from under the hat rail.
Figure 18: Disassembly
Disassembling the SFP modules
Pull the module out of the socket by means of the opened lock.
Close the socket with the protective cap.
Figure 19: Deinstalling an SFP module
