PowerMICE
Release 01 04/2014
33
 10/100 Mbit/s twisted pair connection on
MM22-T1T1T1T1 PoE media module
These connections are RJ45 sockets.
10/100 Mbit/s TP PoE ports enable the connection of terminal devices or
independent network segments according to the IEEE 802.3 10BASE-T/
100BASE-TX and IEEE 802.3af (Power over Ethernet) standards.
These ports support:
 Autonegotiation
 Autopolarity
 Autocrossing (if autonegotiation is activated)
 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
 10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode
 Power over Ethernet (PoE)
Delivery state: autonegotiation activated
The socket housing is electrically connected to the front panel.
The PoE voltage is fed in via pins 4&5 and 7&8 (spare pairs).
 10/100/1000 Mbit/s twisted pair connection
These connections are RJ45 sockets.
10/100/1000 Mbit/s TP ports enable the connection of terminal devices or
independent network segments according to the IEEE 802.3 10BASE-T/
100BASE-TX/1000BASE-T standard.
These ports support:
 Autonegotiation
 Autopolarity
 Autocrossing (if autonegotiation is activated)
 1000 Mbit/s full duplex
 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
 10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode
Delivery state: autonegotiation activated
The socket housing is electrically connected to the front panel.
The pin assignment corresponds to MDI-X.

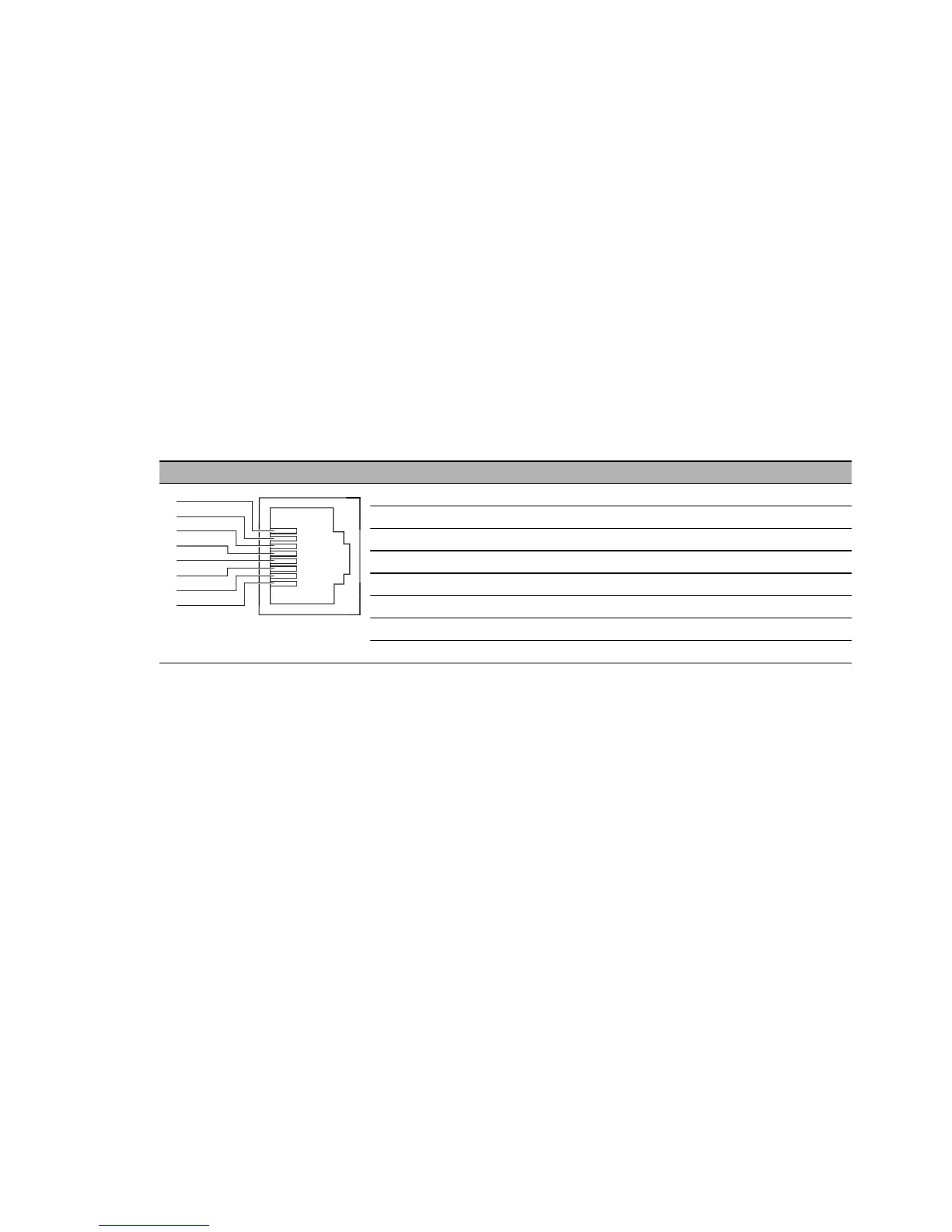

Figure Pin Function
1 RD+ Receive Data +
2 RD- Receive Data -
3 TD+ Transmit Data +
4 V+ Plus terminal of the supply voltage
5 V+ Plus terminal of the supply voltage
6 TD- Transmit Data -
7 V- Minus terminal of the supply voltage
8 V- Minus terminal of the supply voltage
Table 8: Pin assignment of the TP/TX interface for PoE for supply via the free line
pairs (spare pairs), RJ45 plug
8
7
6
5
4
3
2
1
