26

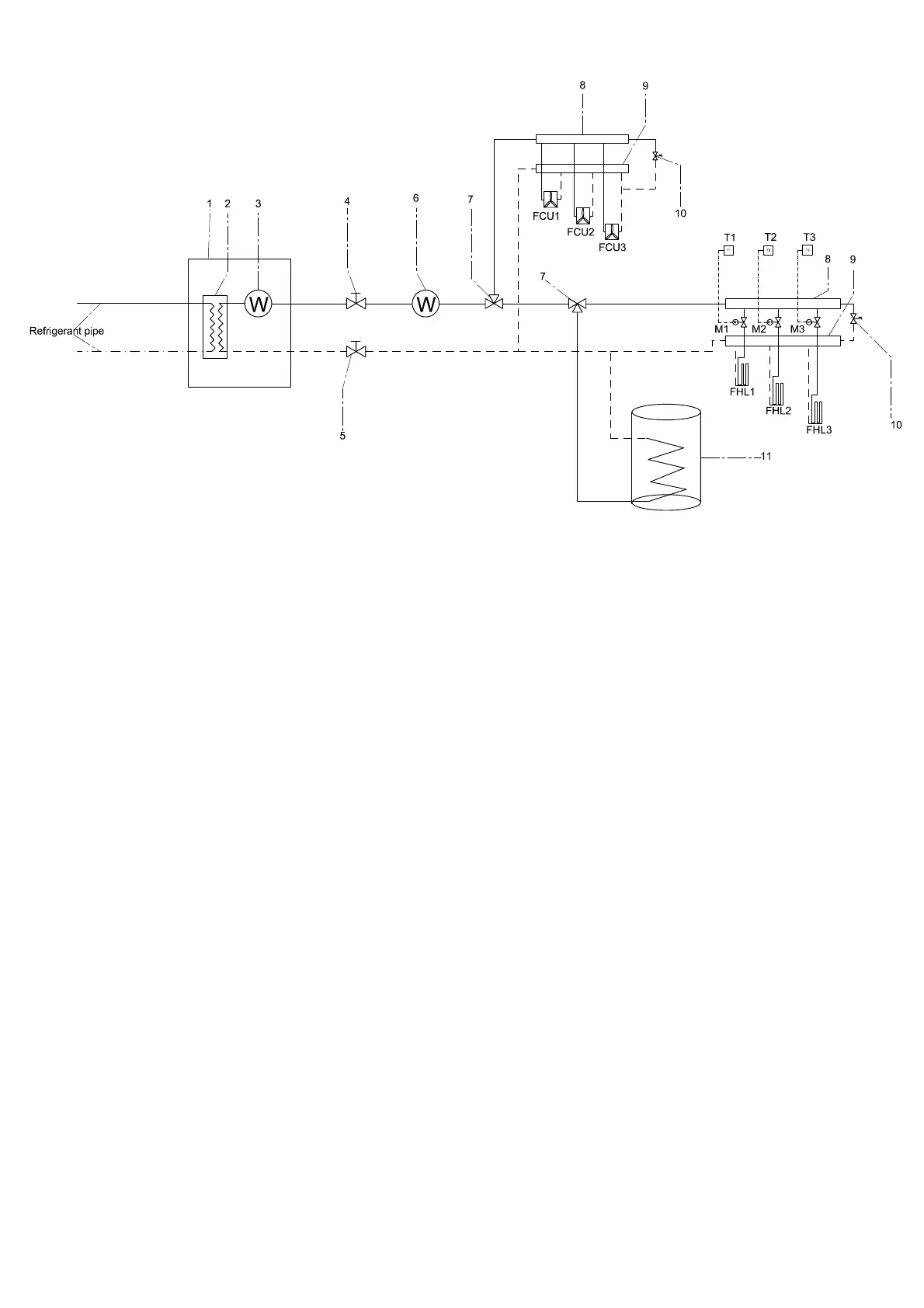

1. Water Module
2. Plate Heat Exchanger
3. Water Pump
4. Ball Valve
5. Ball Valve
6.
Water Pump(Field-Supplied)
(The selection method is detailed in the section 12"Install External Water Pump" )
7. Tee(Field-Supplied) (The installation method is detailed in the section 11"Install Electric Three-way Valve")
8. Water Separator(Field-Supplied)
9. Water Accumulator(Field-Supplied)
10. Bypass Valve(Field-Supplied)
FCU1...3 Fan Coil Unit(Field-Supplied)
FHL1...3 Flooring Heating Circuit (Field-Supplied)
T1...3 Temperature Controller for Separated Room using Floor Heating(Field-Supplied)
M1...3 Separated Remote Controlling Valve(Field-Supplied)
11. Domestic Water Tank
