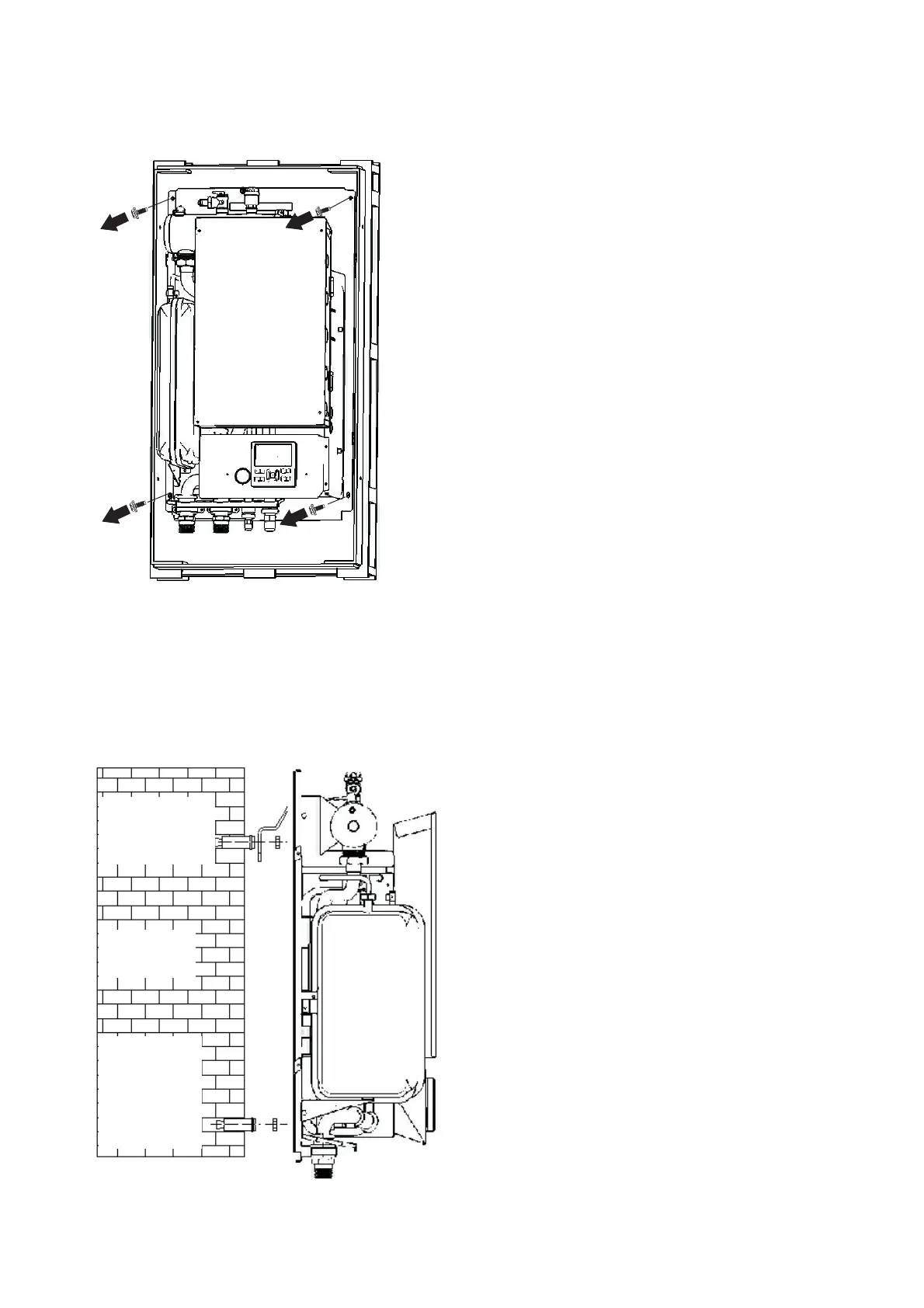

● As shown below, remove four screws on wood
base and separate the unit from packing base
and wood base.
7.2.2 Install Water Module
● Mounting wall must bear running weight of
water module (76kg);
a. Water module does not tilt;
b. Water module does not have abnormal
vibration and noise when running;
● Hang water module to wall board.
Horizontally install
wall hanging plate
to wall by 3
expansion bolts
Hang water
module to water
hanging board
Fix the bottom of
water module
through 2 holes in
outer edge of
bottom plate by
using 2 M8
expansion bolts
To Next Page
