10.1 General Check
(1) Ensure all electrical apparatus used on site
(2) Check voltage is within rated voltage ±6%. If too
low, system will not start. If too high, electrical
parts will be burnt out.
(3) Check cable capacity. See specification of
power line connected on site in table 10.1.
(4) Confirm ground wire is connected.

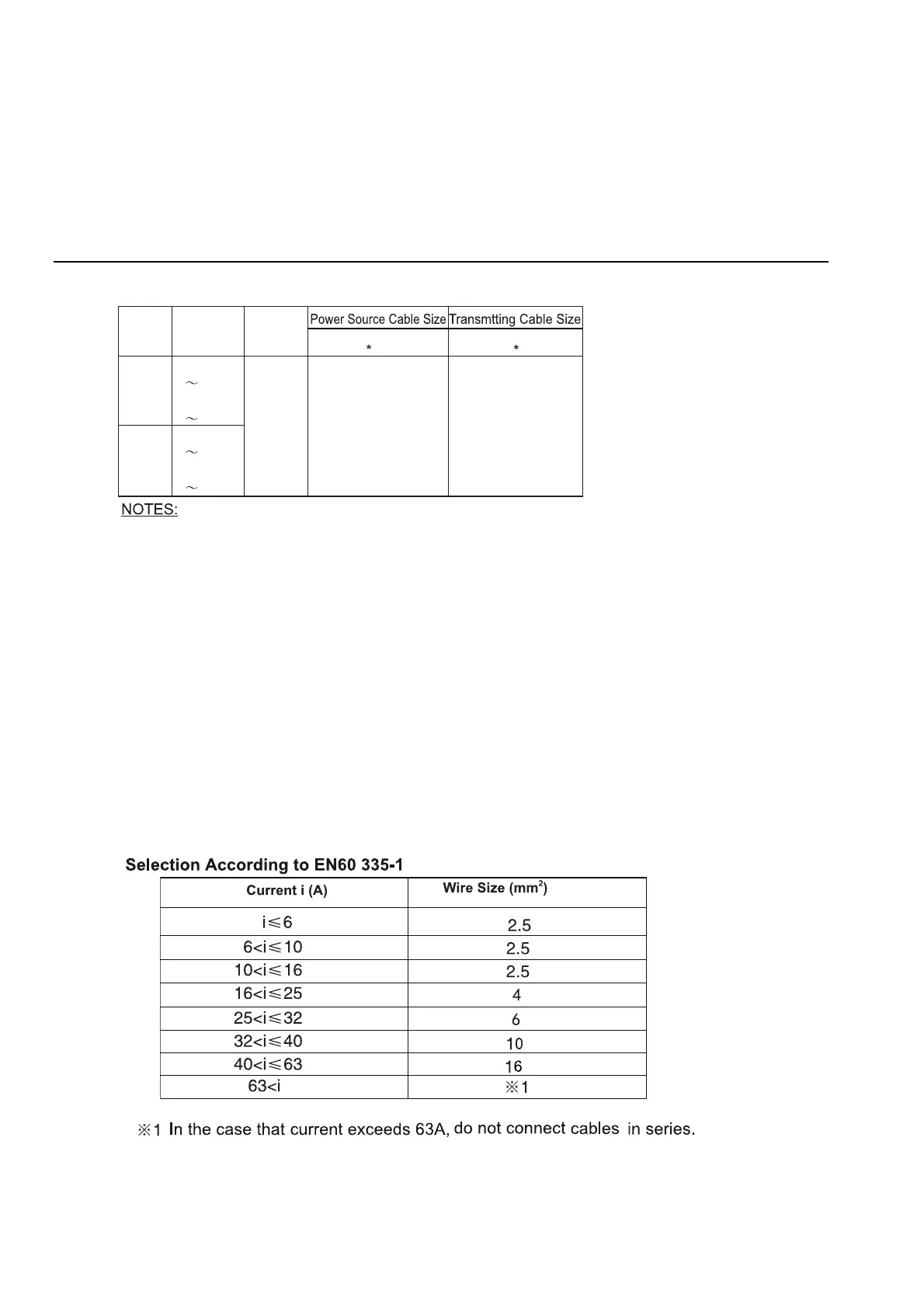

Table 10.1 Electrical Parameters of Water Module and Electric Wire Specification
2.5mm 0.75mm
22
Power
Source
EN60 335 -1
1
EN60 335 -1
1
220V-240V
50Hz
Capacity
16.9A
80
:
Current
220V
60Hz
220V-240V
50Hz
220V
60Hz
160
(power switch, cut-out switch, lead, conduit and terminal block) are selected according to technical
manual and national electrician standard. Wiring must be made according to national specification.
(1) Field wiring shall be in conformity to local laws and regulations, and all wiring operations
must be performed by qualified professionals.
(2) Refer to relevant standards for above-noted power cord size.
(3) Where power cord is connected through junction box in series, be sure to determine the
total current and choose wires based on the table below.
(4) As a minimum, the chosen wires shall not be lighter than the polychloroprene sheathed
flexible cord (code designation 60245 IEC 57).
(5) Use a shielded cable for the transmitting circuit and connect the shield layer to ground.
(6) Install a multi-pole main switch with a space of 3.0mm or more between each phase.
(7) Power cord installation requires a longer ground wire than current-carrying wire.
