27
No. Tool No. Tool No. Tool No. Tool
1 Handsaw 6
Pipe
Bender
11 Spanner 16 Leveller
2 Screwdriver 7 Pliers 12
Charging
Cylinder
17
Clamper for
Solderless
Terminals
3
Vacuum
Pump
8 Pipe Cutter 13
Gauge
Manifold
18
Hoist (for
Indoor Unit)
4
Refrigerant
Gas Hose
9 Brazing Kit 14
Cutter for
Wires
19 Ammeter
5 Megohmmeter 10
Hexagon
Wrench
15
Gas Leak
Detector
20
Voltage
Meter
4. Necessary Tools and Instrument List for Installation
About vacuum pump, refrigerant gas hose, charging cylinder and multifunctional measuring instruments,
use suitable equipments for R410A respectively. Do not mix other refrigerant.
Foreign matters such as moisture, oxidation scale and grease easily affect the performance of refrigerant,
so the moisture, dusts and oil in the refrigerating system must be removed. If not use the specified materials
and tools, it may lead to an explosion, personal injury, refrigerant leakage, electrical failure or a fire.
5. Transportation and Handling
5.1 Transportation
● Transport water module in the packing boxes.
● Unpack the product only before installation for
avoiding damage during transportation.
● Transport the product as close to the installation
location as practical before unpacking.
5.2 Handling
● Water module is about 74kg and needs two or
more persons for moving and handling.
● Take protection measures during handling (wear
gloves etc.)
● Do not remove wood base during handling by
hand.
● Take surface protection measures and be careful
not to damage the face panel on the unit’s surface
during handling.
● Do not grasp the pipes and face panel during
handling.
●

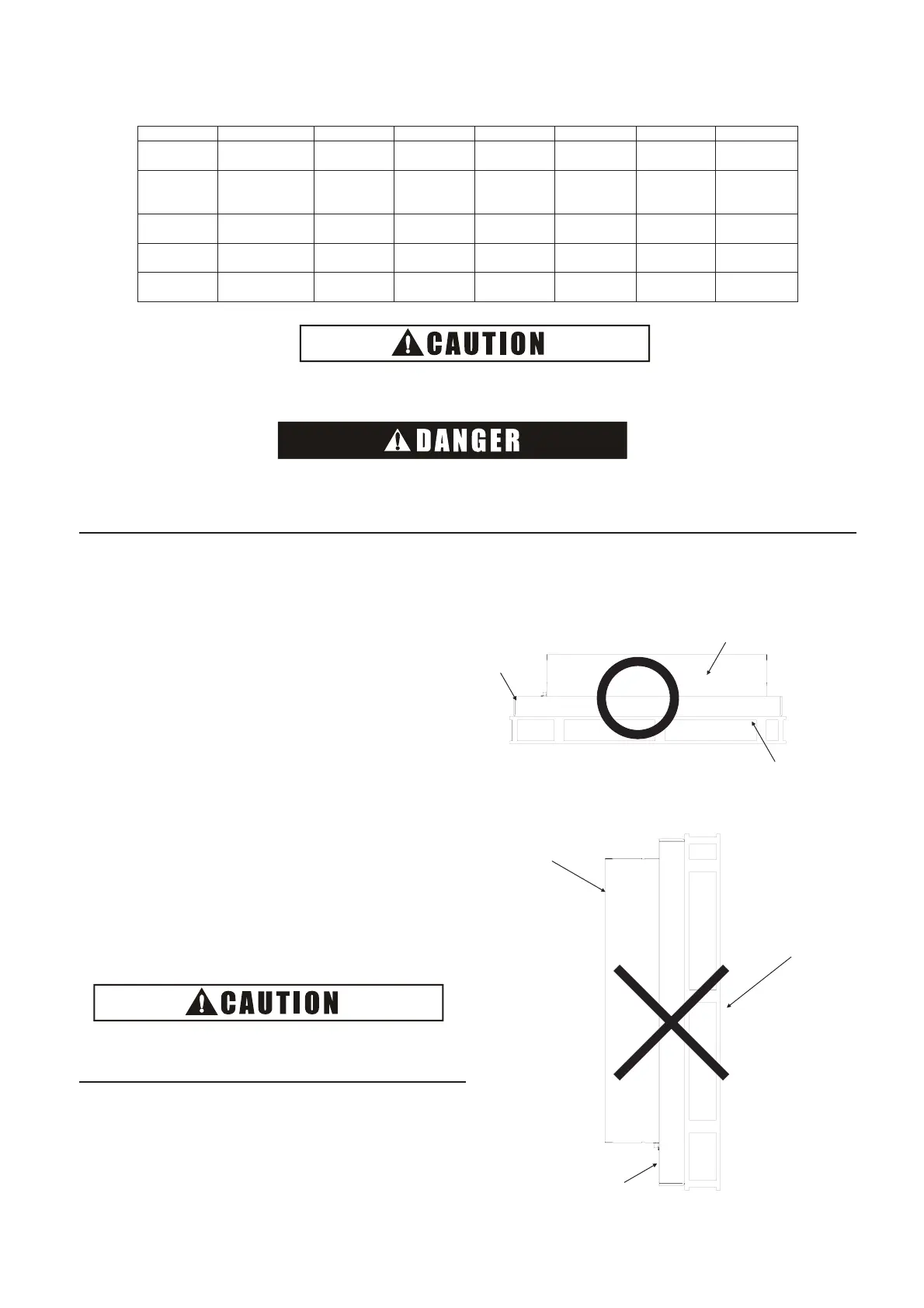

Pay attention to the placement of water module,
see the Fig right, avoid falling.
Correct
Water Tank
Water Module
Water Module
Wood Base
Wood Base
W
rong
Paper
About vacuum pump, refrigerant gas hose, charging cylinder and multifunctional measuring instruments,
use suitable equipments for R410A respectively. Do not mix other refrigerant.
Foreign matters such as moisture, oxidation scale and grease easily affect the performance of refrigerant,
so the moisture, dusts and oil in the refrigerating system must be removed. If not use the specified materials
and tools, it may lead to an explosion, personal injury, refrigerant leakage, electrical failure or a fire.
Do not step on the cardboard of the external packageDo not step on the cardboard of the external package
or put any materials on the air conditioneror put any materials on the air conditioner. Four layers. Four layers
are allowed for stacking during transportation.are allowed for stacking during transportation.
