■ Checking brake pedal
CAUTION
TO avoid personal injury:
Stop the engine and chock the wheels
before checking brake pedal.
1.Inspect the brake pedals for free play and
smooth operation.
Adjust if incorrect free play is found. (see
checking brake pedal in” EVERY 200 HOURS
in PERIODIC SERVICE section)

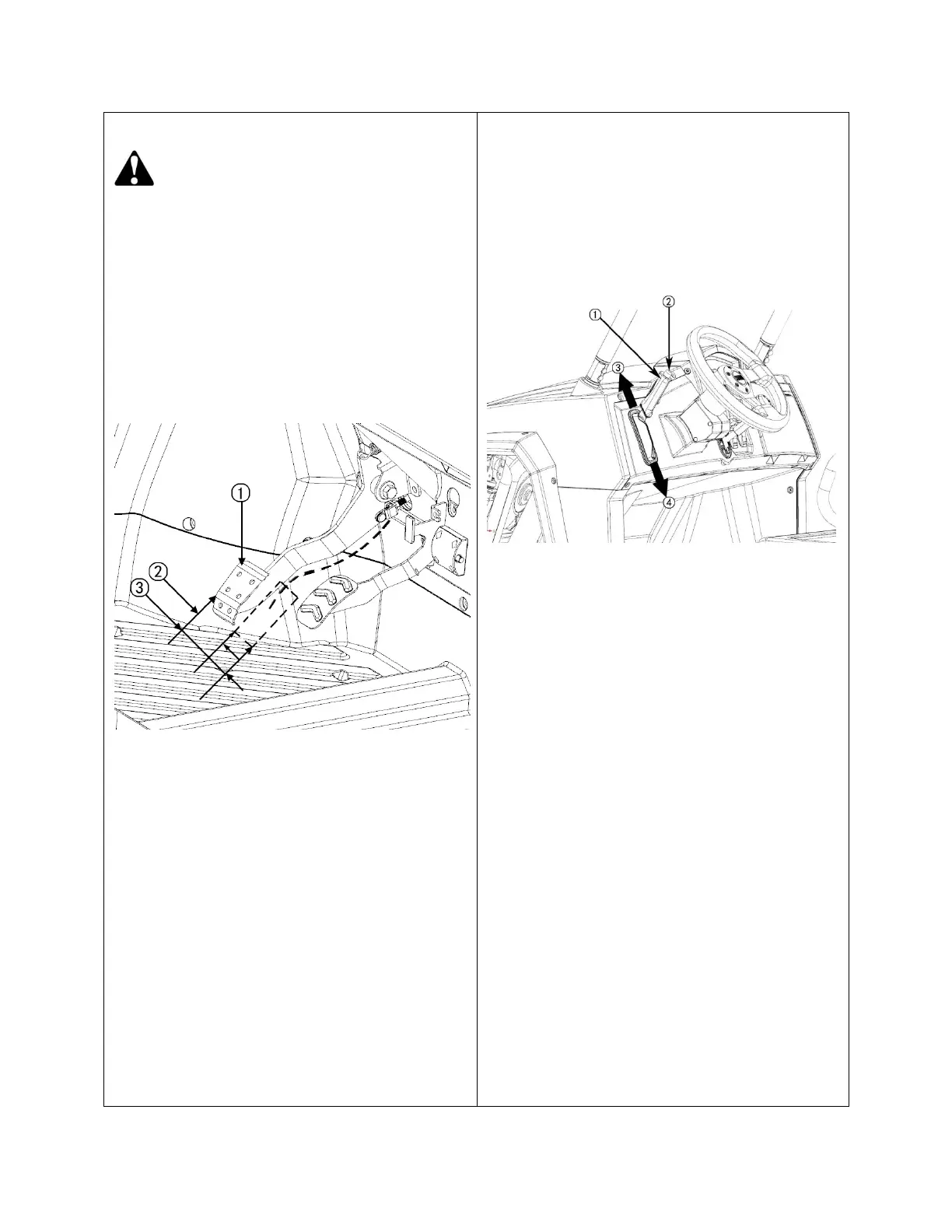

① Brake pedal ② FREE TRAVEL
③ PEDAL STROKE
■ Checking parking brake
Pull the parking brake lever to apply the
brakes with the key switch in the "ON" position
and the parking brake indicator should come on.
To release the brake, push in the button on the
tip of the parking brake lever and tilt the lever
down.
NOTE
Make sure the parking brake warning lamp on
the display goes off when parking brake lever
and tilt the lever down.
NOTE
Make sure the parking brake warning lamp on
the display goes off when parking brake lever
is down.
① Parking brake lever ② Release button
③ RELEASE ④ PULL
■ Checking gauges meter and warning
lamps
1. Inspect the instrument panel for broken
gauges meter and warning lamps.
2. Replace if broken.
■ Checking head light turn signal light etc
1. Inspect lights for broken bulbs and lenses
2. Replace if broken
■ Checking seat belt and ROPS
1. Always check condition of seat belt and
ROPS attaching hardware before
operating vehicle.
2. Replace if damaged.
■ Checking tire inflation pressure
Though the tire pressure is factory-set to the
