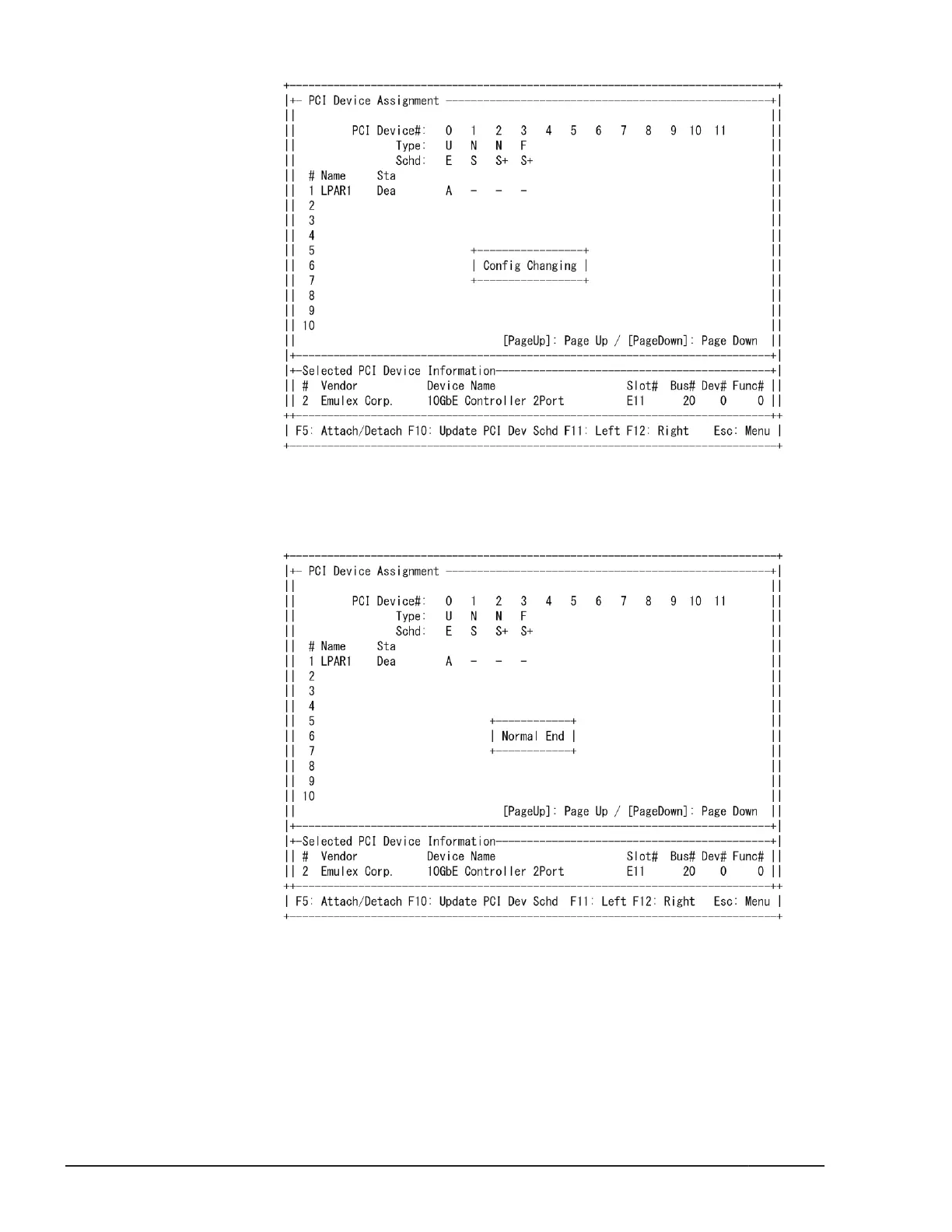

Figure 5-26 Config Changing execution screen
4. The Normal End sub-screen appears, which completes the changing of
the scheduling mode.
Figure 5-27 Config Changing completion screen
Changing the Scheduling Mode to Dedicated Mode
1. On the PCI Device Assignment screen, place the cursor at Schd of the
PCI device whose scheduling mode is to be changed and press Enter.
5-20
Setup of LPAR manager
Hitachi Compute Blade 500 Series Logical partitioning manager User's Guide
