Recommended LPAR manager Configuration (SAN Boot)
Recommended configuration of the LPAR manager system is shown below.
(In this Example, 10 Gbps Ethernet Mezzanine Card (4port) is installed to the
expansion slot 1, and 8 Gbps FC Mezzanine Card (2port) is installed to the
expansion slot 2)

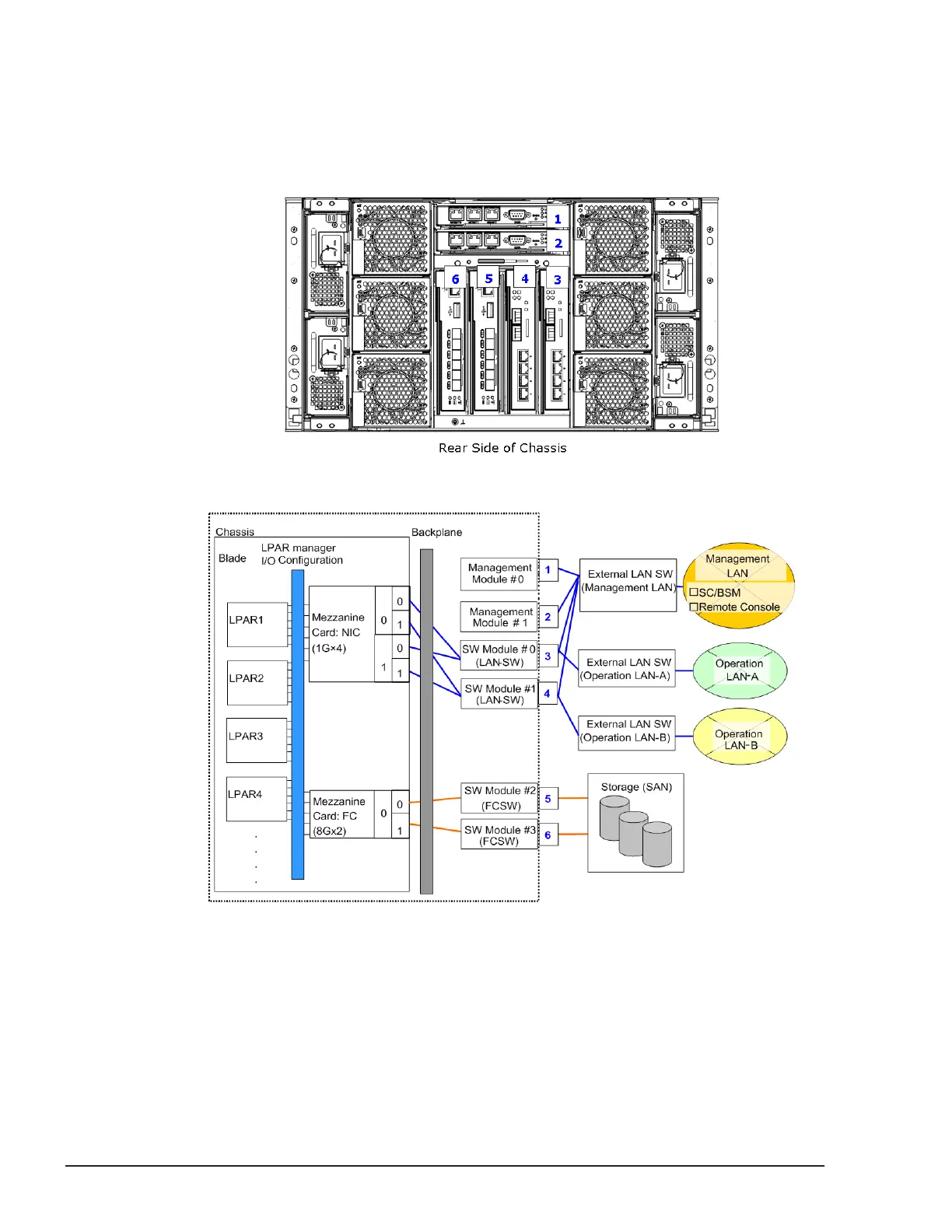

Figure E-1 Rear Side of Server Chassis
Figure E-2 LPAR manager Interface Configuration
Logical Partition Configuration
Example screen of Logical Partition Configuration is below. (Generating and
configuring 4 LPARs at this example)
