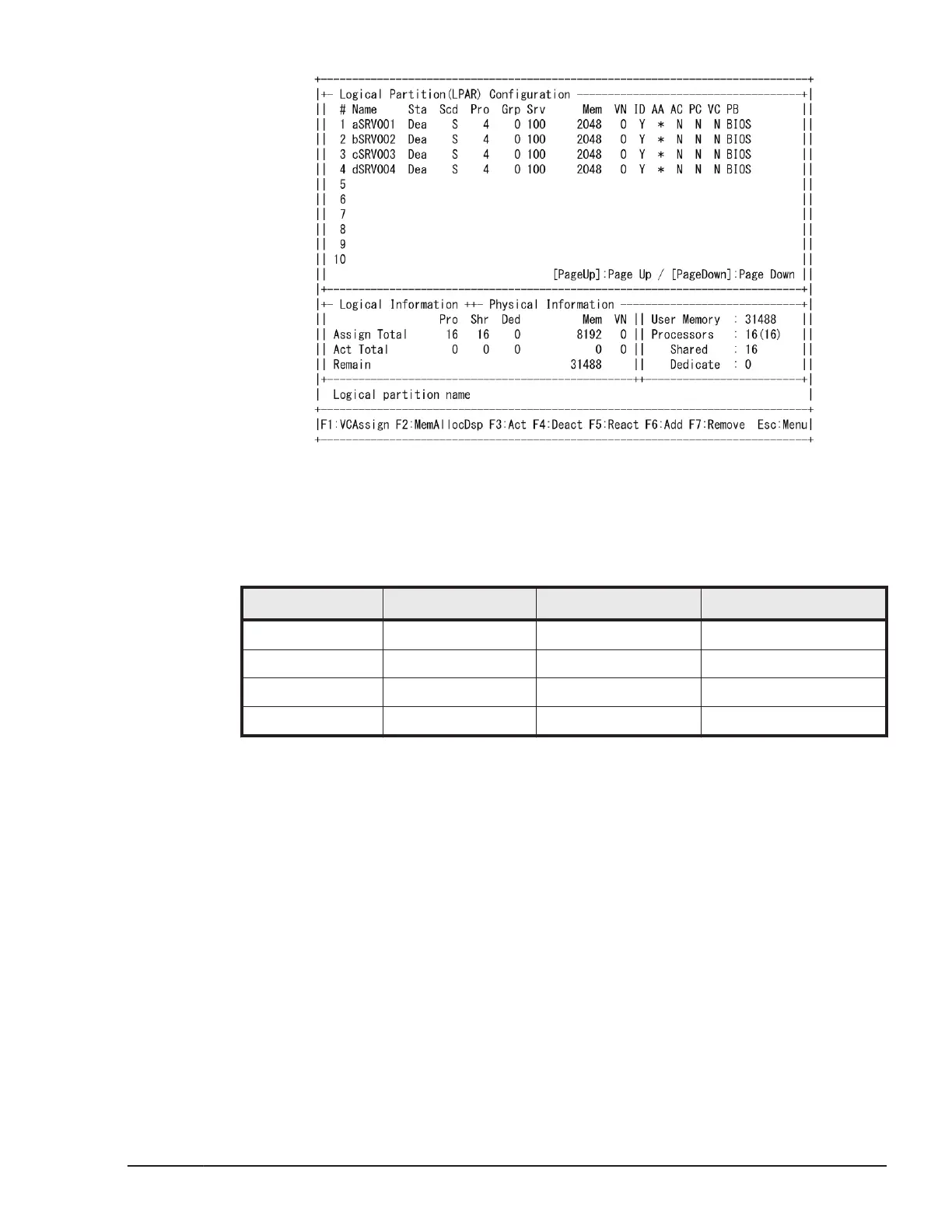

Figure E-3 Example of 4 LPARs Configuration
In example screen, all parameters for LPAR are set in default values except 3
parameters in the table below.
Table E-1 Example of 4 LPARs Configuration
LPAR No. LPAR Name Processor (No.) Amount of Memory
LPAR1 aSRV001 Shared (4) 2048MB
LPAR2 bSRV002 Shared (4) 2048MB
LPAR3 cSRV003 Shared (4) 2048MB
LPAR4 dSRV004 Shared (4) 2048MB
Virtual NIC Assignment
Example screen of Virtual NIC Assignment is below. Shared NICs (VNIC ID:
1a through 6b) correspond to port of physical NICs one-to-one. Therefore
configurable range of the VNIC IDs depends on configuration of physical
NICs. Configurable VNIC IDs can be confirmed on the sub-screen which is
displayed by selecting configuration of VNCI ID.
In this example, "VNIC ID: 1a through 4b" are set to 4 LPARs.
System Configuration
E-3
Hitachi Compute Blade 500 Series Logical partitioning manager User's Guide
