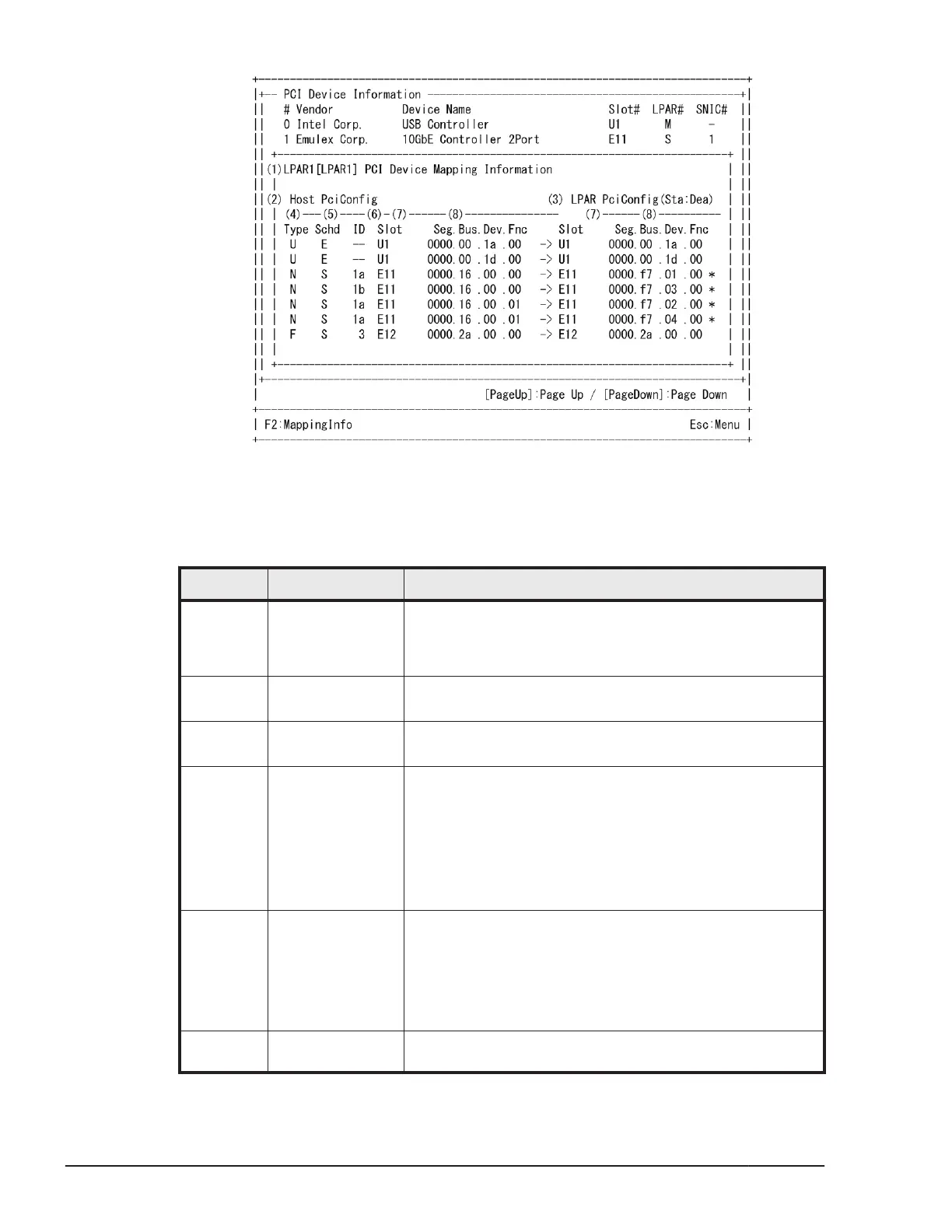

Figure 7-12 PCI Devices Mapping Information Screen
The following table describes each item on this screen.
Table 7-14 Details of PCI Devices Mapping Information Screen
No. Item Description
(1) LPARxxx[yyy] Displays LPAR No. and LPAR Name
xxx: LPAR No.
yyy: LPAR Name
(2) Host PciConfig Displays physical PCI device information which is
assigned to the LPAR.
(3) LPAR PciConfig Displays PCI config address of physical PCI devices which
are assigned to the LPAR.
(4) Type Displays the type of physical PCI devices.
U: USB controller
N: Network Interface Card (NIC)
Add "v" to the end of line when using VF NIC.
F: Fibre Channel (FC)
S: SCSI controller or RAID controller
(5) Schd Displays scheduling mode of physical PCI devices.
D: Dedicated mode
S: Shared mode
E: Exclusive shared mode
-: Virtual NIC
(6) ID Displays IDs which are used by the LPAR. (Only case that
scheduling mode of physical NIC is shared mode)
7-38
Operation by LPAR manager Screen
Hitachi Compute Blade 500 Series Logical partitioning manager User's Guide
