Hitachi EC2-605 - Selector Switch Configuration



13


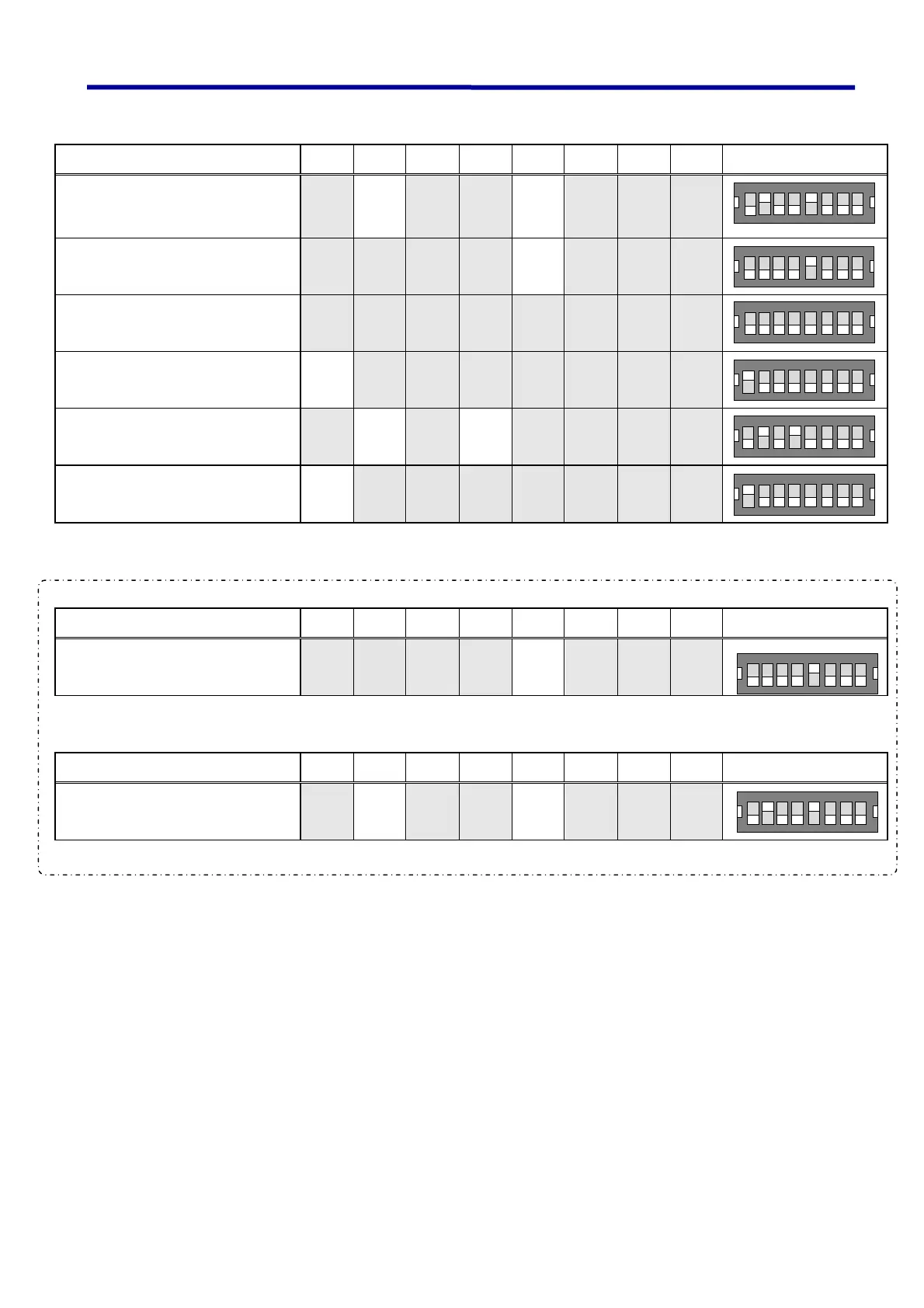

Table1: Setting of the functional selector switch（Basic setting）
Machine type/Mode set No.1 No.2 No.3 No.4 No.5 No.6 No.7 No.8 Diagram
UA-03/UA-04/UAG
OUG/OUG-10T
※Exclusion setting Table2
OFF ON OFF OFF ON OFF OFF OFF
HVF5/UVF5S/VFI-2
※Exclusion setting Table3
OFF OFF OFF OFF ON OFF OFF OFF
Other Elevator Type
(Including UAX)
OFF OFF OFF OFF OFF OFF OFF OFF
Door PCB
ON
OFF OFF OFF OFF OFF OFF OFF
Group Control
(MPU Type：SGC-MPU,WMPU)
OFF ON OFF ON OFF OFF OFF OFF
Group Control
(Other MPU Type)
ON
OFF OFF OFF OFF OFF OFF OFF
Table2: Setting of the functional selector switch（
MODE9,38,39,3C,3D
）
Machine type/Mode set No.1 No.2 No.3 No.4 No.5 No.6 No.7 No.8 Diagram
UA-03/UA-04/UAG
OUG/OUG-10T
OFF OFF OFF OFF ON OFF OFF OFF
Table3: Setting of the functional selector switch（
MODE76,78
）
Machine type/Mode set No.1 No.2 No.3 No.4 No.5 No.6 No.7 No.8 Diagram
HVF5/UVF5S/VFI-2
OFF ON OFF OFF ON OFF OFF OFF



3. Connection Method. How to Turn the Power ON-OFF

2
345
67
8
1
ON

345
67
8
1
ON
2

345
67
8
ON
2
1

345
67
8
ON
2
1

345
67
8
1
ON
2

2
345
67
8
1
ON

345
67
8
ON
2
1

345
67
8
1
ON
2
