Hitachi Advanced Server HA820 G2 User Guide 16
Item Description Status
4 Health LED
1
• Solid green = Normal
• Flashing green (1 Hz/cycle per sec) = iLO
is rebooting
• Flashing amber = System degraded
•
Flashing red (1 Hz/cycle per sec) =
System critical3
1
. When all four LEDs described in this table flash simultaneously, a power fault has occurred.
2
. Facility power is not present, the power cord is not attached, no power supplies are installed, power
supply failure has occurred, or the power button cable is disconnected.
3
. If the health LED indicates a degraded or critical state, review the system or use iLO to review the system
health status.

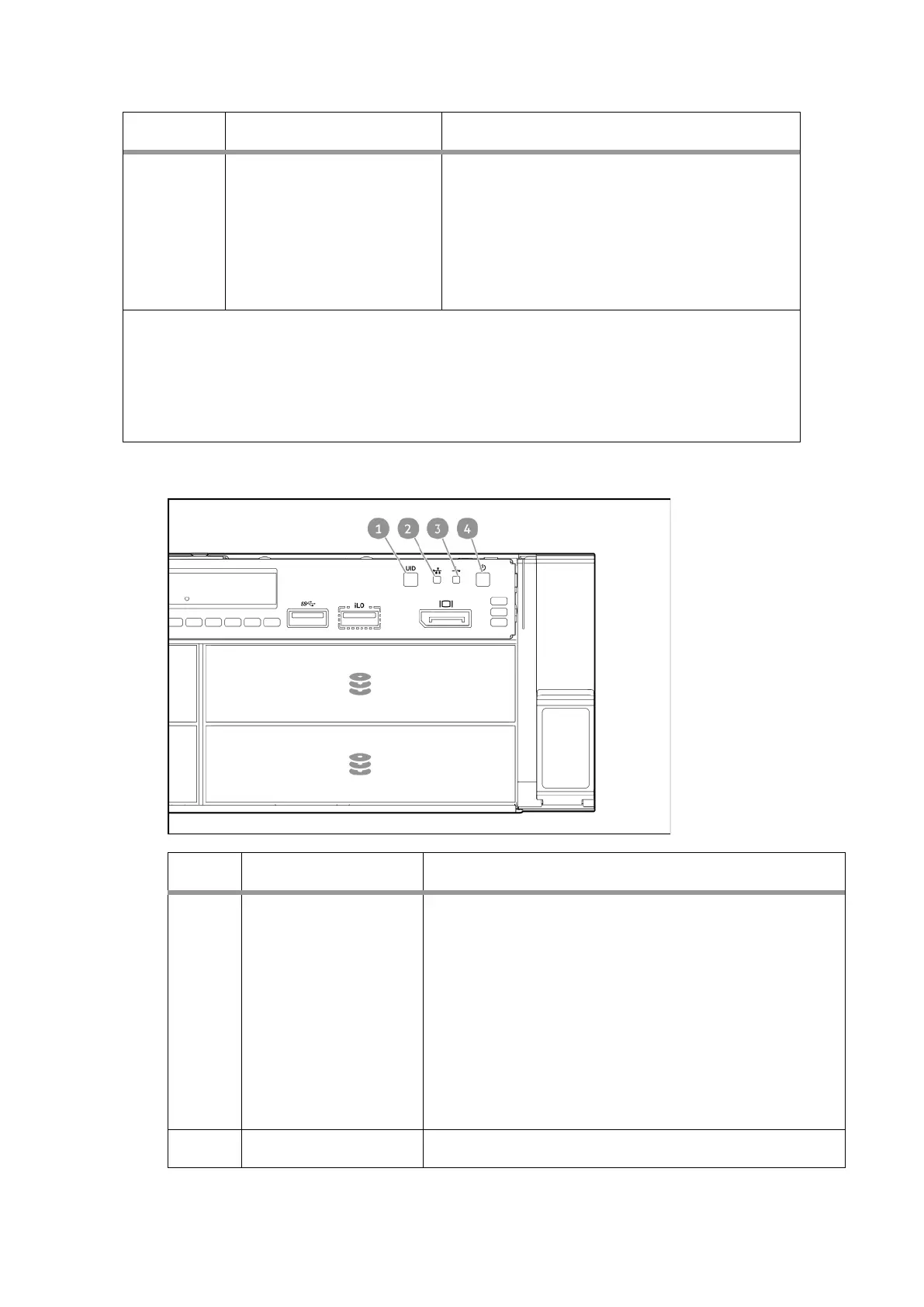

LFF power switch module LEDs and buttons
Item Description Status
1 UID button/LED
1
•
Solid
blue = Activated
•
Flashing
blue:
◦ 1 Hz/cycle per sec = Remote management or
firmware upgrade in progress
◦ 4 Hz/cycle per sec = iLO manual reboot
sequence initiated
◦ 8 Hz/cycle per sec = iLO manual reboot
sequence in progress
◦ Off = Deactivated
2 NIC status LED
1
• Solid green = Link to network
