Using Intelligent Output Terminals
The intelligent output terminals are programmable in a similar way to the intelligent
input terminals. The inverter has several output functions that you can assign individu-
ally to three physical logic outputs. Two of the outputs are open-collector transistors, and
the third output is the alarm relay (form C – normally open and normally closed
contacts). The relay is assigned the alarm function by default, but you can assign it to
any of the functions that the open-collector outputs use.

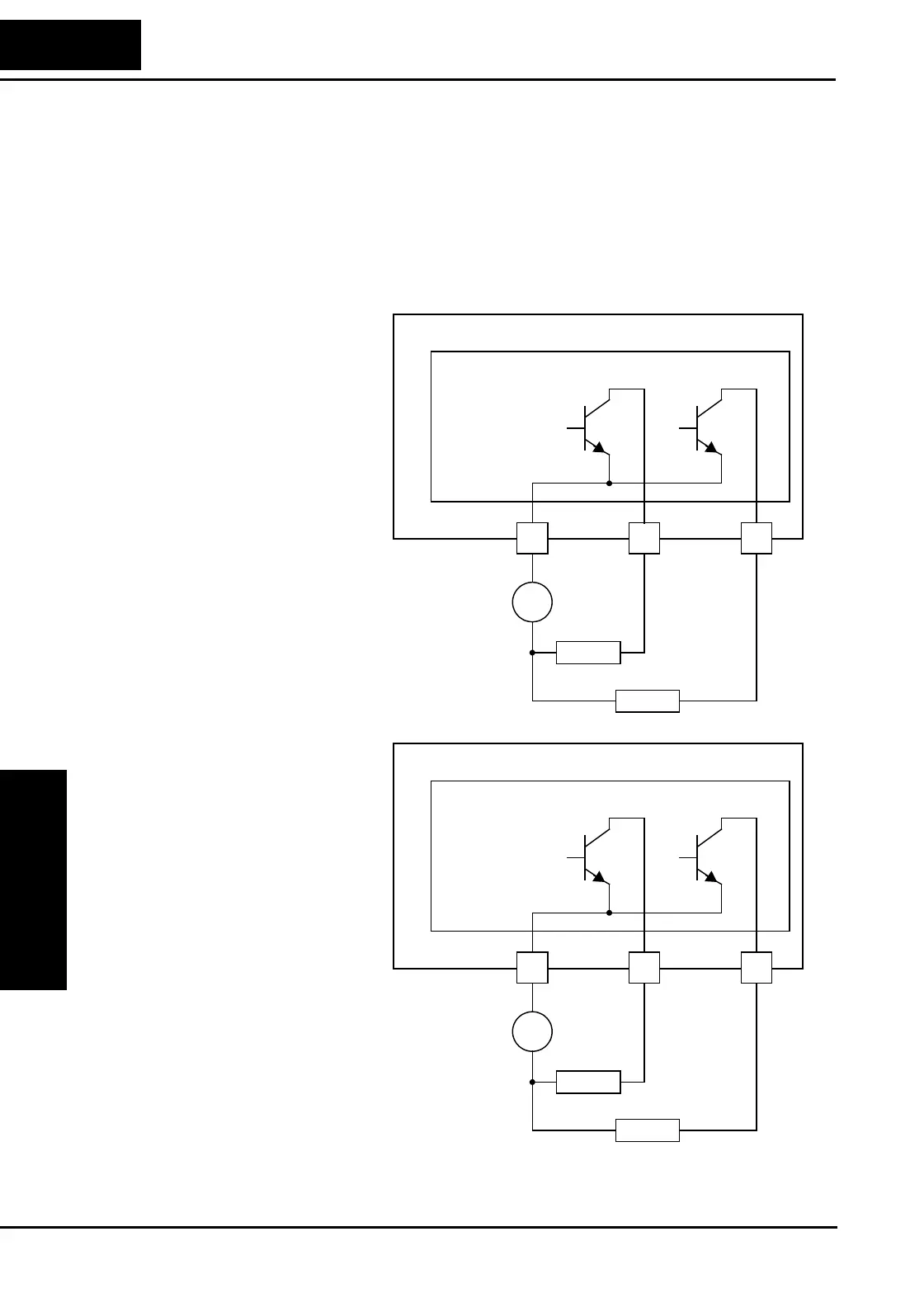

Sinking Outputs,
Open Collector
Sinking Outputs,
Open Collector with
External Relays
L200 Inverter
12 11 CM2
Open collector outputs
Load
Load
–
+
Logic output
common
The open-collector transistor
outputs can handle up to
50mA each. We highly recom-
mend that you use an external
power source as shown. It
must be capable of providing
at least 100mA to drive both
outputs at full load. To drive
loads that require more than
50mA, use external relay
circuits as shown to the right.
L200 Inverter
12 11 CM2
Open collector outputs
Load
Load
–
+
Logic output
common
If you need output current
greater than 50mA, use the
inverter output to drive a small
relay. Be sure to use a diode
across the coil of the relay as
shown (reverse-biased) in
order to suppress the turn-off
spike, or use a solid-state
relay.

Hitachi L200 Series Specifications

General

Output Frequency	0.1-400Hz
Communication	RS-485 (Modbus RTU)
Frequency Range	0.1-400Hz
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Input Voltage	200-240V
Control Method	V/f control, Sensorless vector control
Overload Capacity	150% for 60 seconds
Protection	Overcurrent, overvoltage, undervoltage, overload, overheating, short circuit
Output Voltage	3-phase, 0 to input voltage
Cooling Method	Forced air cooling
Humidity	5% to 95% RH (non-condensing)
Altitude	Up to 1000m without derating
Braking Unit	Built-in braking transistor (for models up to 7.5kW), External braking resistor can be connected
