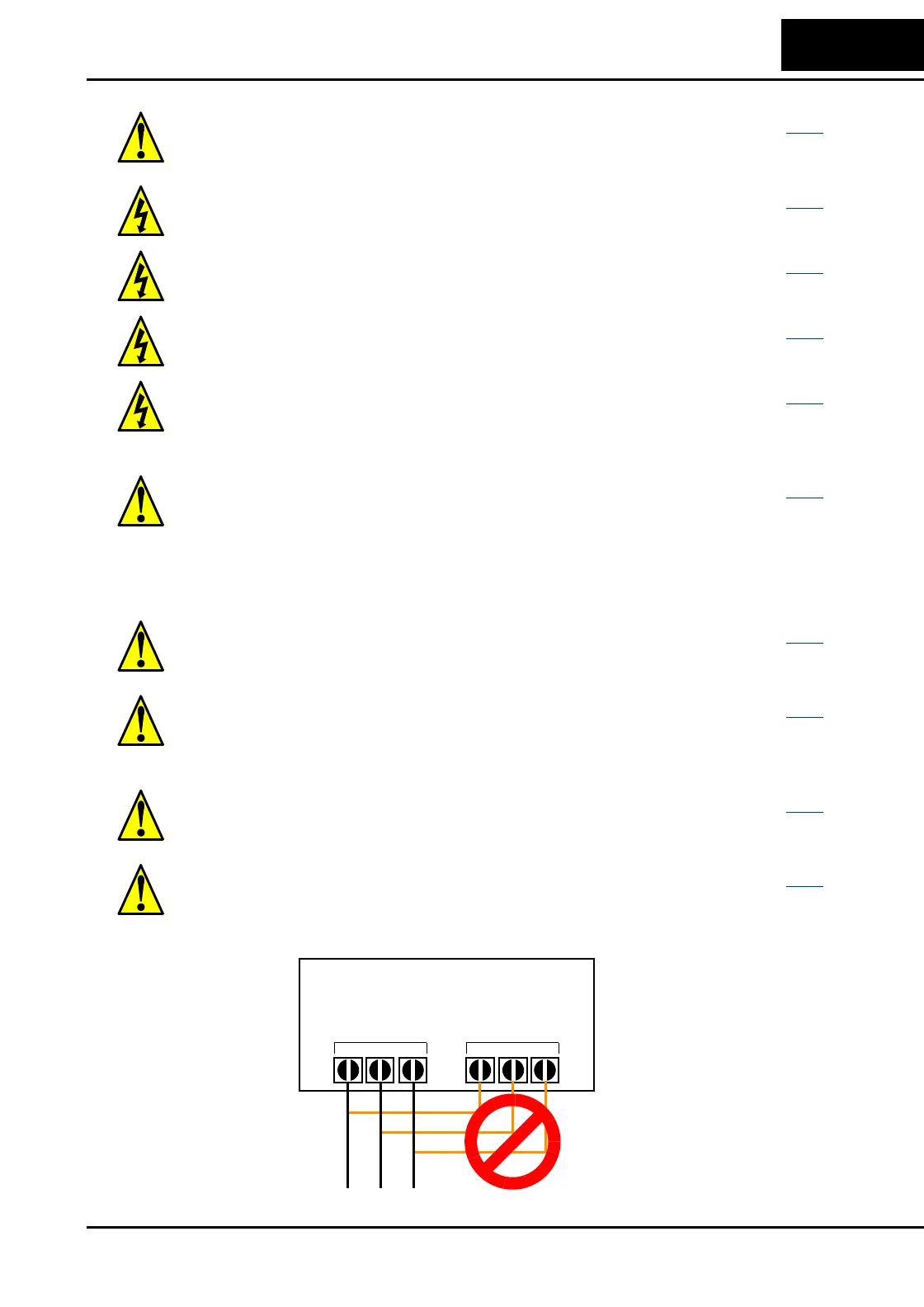

Wiring - Cautions for Electrical Practices
WARNING: “Suitable for use on a circuit capable of delivering not more
than 5,000 rms symmetrical amperes, 480 V maximum.” For models with
suffix H.
.... 2–15
HIGH VOLTAGE: Be sure to ground the unit. Otherwise, there is a
danger of electric shock and/or fire.
.... 2–15
HIGH VOLTAGE: Wiring work shall be carried out only by qualified
personnel. Otherwise, there is a danger of electric shock and/or fire.
.... 2–15
HIGH VOLTAGE: Implement wiring after checking that the power
supply is OFF. Otherwise, you may incur electric shock and/or fire.
.... 2–15
HIGH VOLTAGE: Do not connect wiring to an inverter or operate an
inverter that is not mounted according the instructions given in this
manual. Otherwise, there is a danger of electric shock and/or injury to
personnel.
.... 2–15
WARNING: Make sure the input power to the inverter is OFF. If the drive
has been powered, leave it OFF for five minutes before continuing.
.... 2–21
CAUTION: Fasten the screws with the specified fastening torque in the
table below. Check for any loosening of screws. Otherwise, there is the
danger of fire.
.... 2–17
CAUTION: Be sure that the input voltage matches the inverter specifica-
tions: • Single/Three phase 200 to 240 V 50/60 Hz (up to 2.2kW) for
NFEF/NFU models • Three phase 200 to 240V 50/60Hz (above 2.2kW)
for LFU models • Three phase 380 to 480 V 50/60Hz for HFEF models
.... 2–18
CAUTION: Be sure not to power a three-phase-only inverter with single
phase power. Otherwise, there is the possibility of damage to the inverter
and the danger of fire.
.... 2–18
CAUTION: Be sure not to connect an AC power supply to the output
terminals. Otherwise, there is the possibility of damage to the inverter
and the danger of injury and/or fire.
.... 2–19
Power Input Output to Motor
L200 Inverter

Hitachi L200 Series Specifications

General

Output Frequency	0.1-400Hz
Communication	RS-485 (Modbus RTU)
Frequency Range	0.1-400Hz
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Input Voltage	200-240V
Control Method	V/f control, Sensorless vector control
Overload Capacity	150% for 60 seconds
Protection	Overcurrent, overvoltage, undervoltage, overload, overheating, short circuit
Output Voltage	3-phase, 0 to input voltage
Cooling Method	Forced air cooling
Humidity	5% to 95% RH (non-condensing)
Altitude	Up to 1000m without derating
Braking Unit	Built-in braking transistor (for models up to 7.5kW), External braking resistor can be connected
