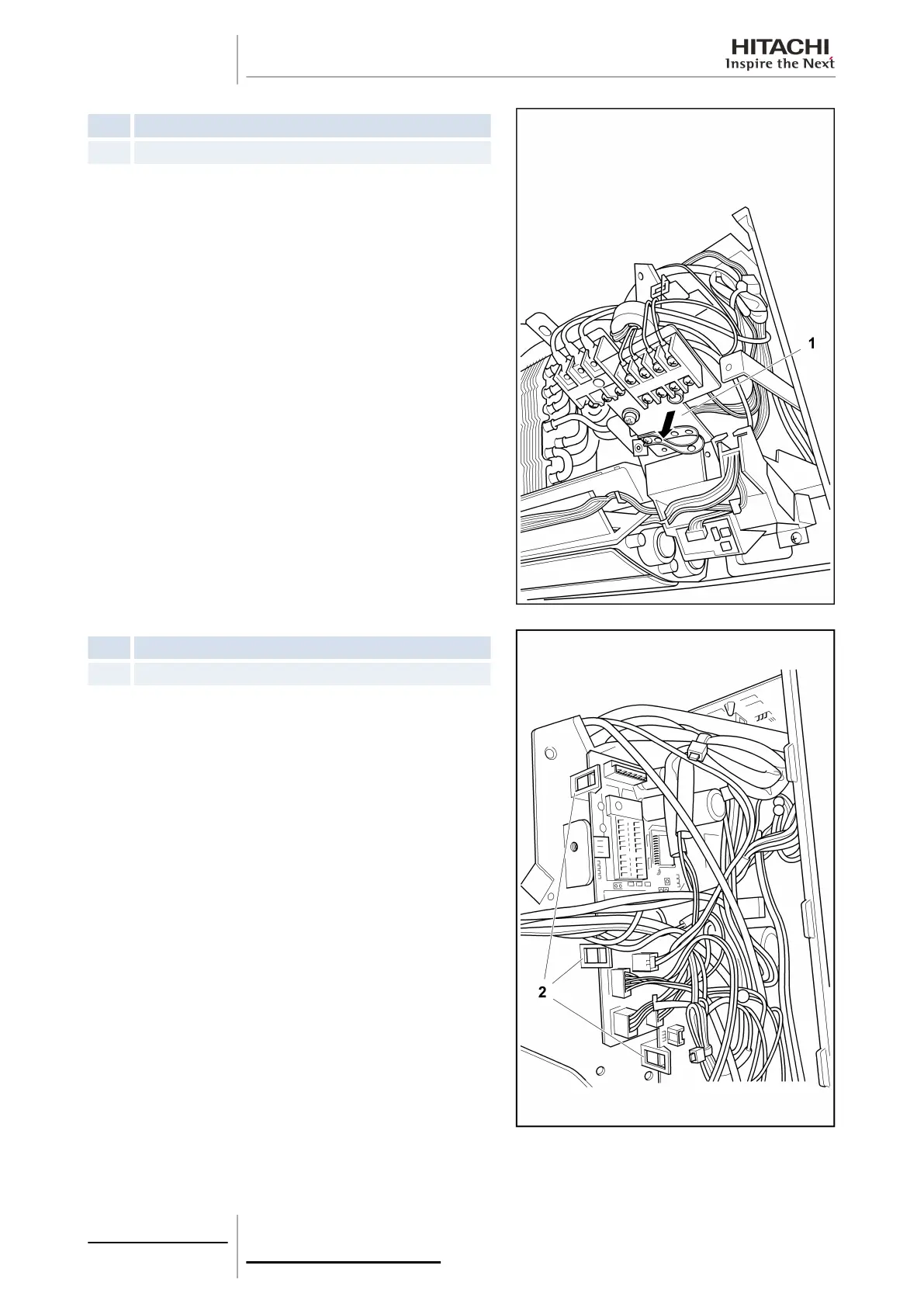

Nº Part
1 Terminal board fixture plate
Remove a screw from the terminal board fixture plate and remove
it.
Nº Part
1 Three front spacers
Remove the thermistor from the main PCB for outlet and inlet liquid,
external transmission, remote control, power supply, external I/O,
automatic louver, screen PCB, fan motor, receiver PCB and
expansion valve connector.
Detach the three front spacers from the main PCB and remove the
PCB from the electrical box.
10 Servicing
336
SMGB0063 rev. 1 - 10/2010
