Hitron CGNVM User’s Guide
POWER Green, steady The CGNVM is running on AC power via the power
cord.
Green, blinking
(optional)
The CGNVM is running on battery power when AC
power is disconnected.
Off The CGNVM is not running on AC power via the
power cord.
DS Green, blinking The CGNVM is searching for a downstream
frequency on the CABLE connection.
Green, steady The CGNVM has successfully located and locked
onto a single downstream frequency on the CABLE
connection.
Blue, steady The CGNVM is successfully engaged in channel
bonding on the downstream connection.
Off There is no downstream activity on the CABLE
connection.
US Green, blinking The CGNVM is searching for an upstream
frequency on the CABLE connection.
Green, steady The CGNVM has successfully located and locked
onto a single upstream frequency on the CABLE
connection.
Blue, steady The CGNVM is successfully engaged in channel
bonding on the upstream connection.
Off There is no upstream activity on the CABLE
connection.
Online Green, blinking The CGNVM’s cable modem is registering with the
service provider’s CMTS.
Green, steady The CGNVM’s cable modem has successfully
registered with the service provider and is ready for
data transfer.
Off The CGNVM’s cable modem is offline.
WIRELESS
(2.4GHZ)
Off The 2.4GHz wireless network is not enabled.
Green, steady The 2.4GHz wireless network is enabled, and no
data is being transmitted or received over the
2.4GHz wireless network.
Green, blinking The 2.4GHz wireless network is enabled, and data
is being transmitted or received over the 2.4GHz
wireless network.

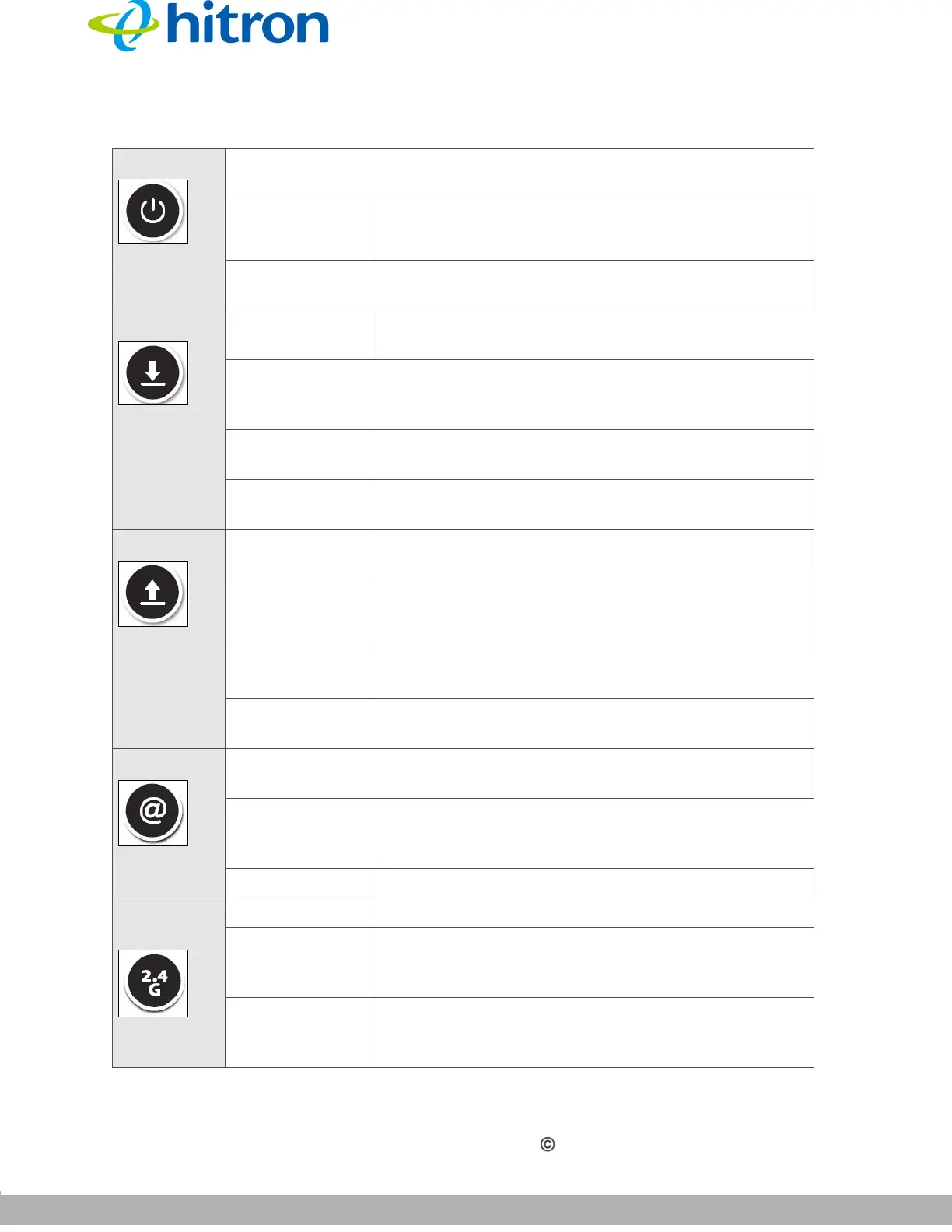

Table 3: LEDs
