Hitron CGNVM User’s Guide

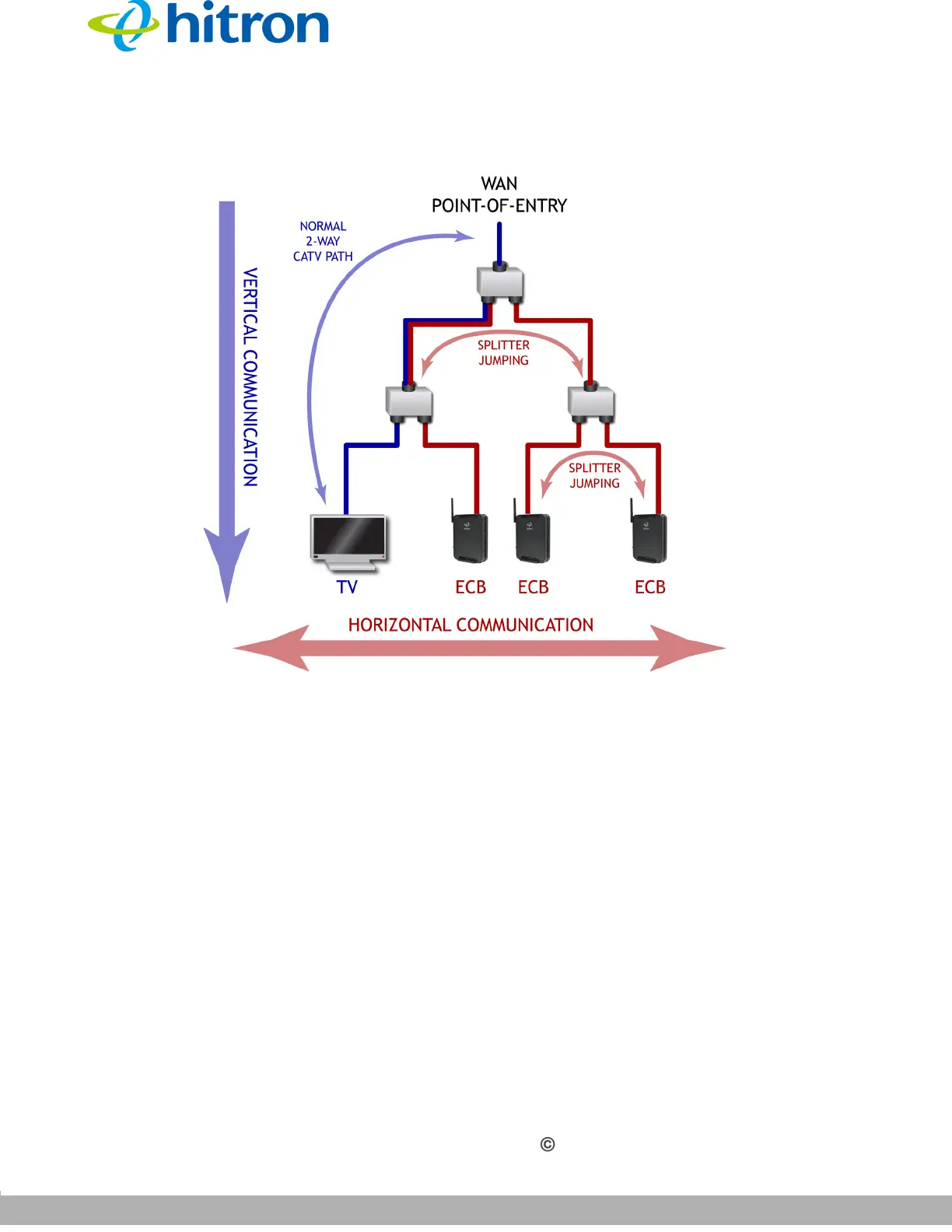

Figure 10: Traditional Vertical CATV vs. Horizontal MoCA Networking
2.1.12.2 Example MoCA Mesh Network
MoCA devices form a full “mesh”, or peer-to-peer network (where all devices
communicate directly with one another). In the following example, four MoCA devices
connect directly to and from one another, via ECBs, forming 12 unique MoCA links
(or 6 bidirectional links).
