Hitron CODA-4x8x User’s Guide
1.3 LEDs
This section describes the CODA-4x8x’s LEDs (lights).
RESET Use this button to reboot or reset your CODA-4x8x to its
factory default settings.
To reboot the CODA-4x8x, press the button and hold it
for less than five seconds. The CODA-4x8x restarts,
using your existing settings.
To reset the CODA-4x8x, press the button and hold it for
five or more seconds. All user-configured settings are
deleted, and the CODA-4x8x restarts using its factory
default settings.
LAN 1 Use these ports to connect your computers and other
network devices, using Category 5 or 6 Ethernet cables
with RJ45 connectors.
Each LAN port’s yellow LED glows when the connection
on the relevant port’s is at 1Gbps, and its green LED
glows when the connection is at 10/100Mbps.
LAN 2
LAN 3
LAN 4
CABLE Use this to connect to the Internet via an F-type RF
cable.
POWER Use the POWER port to connect to the 100~125VAC
power cable that came with your CODA-4x8x

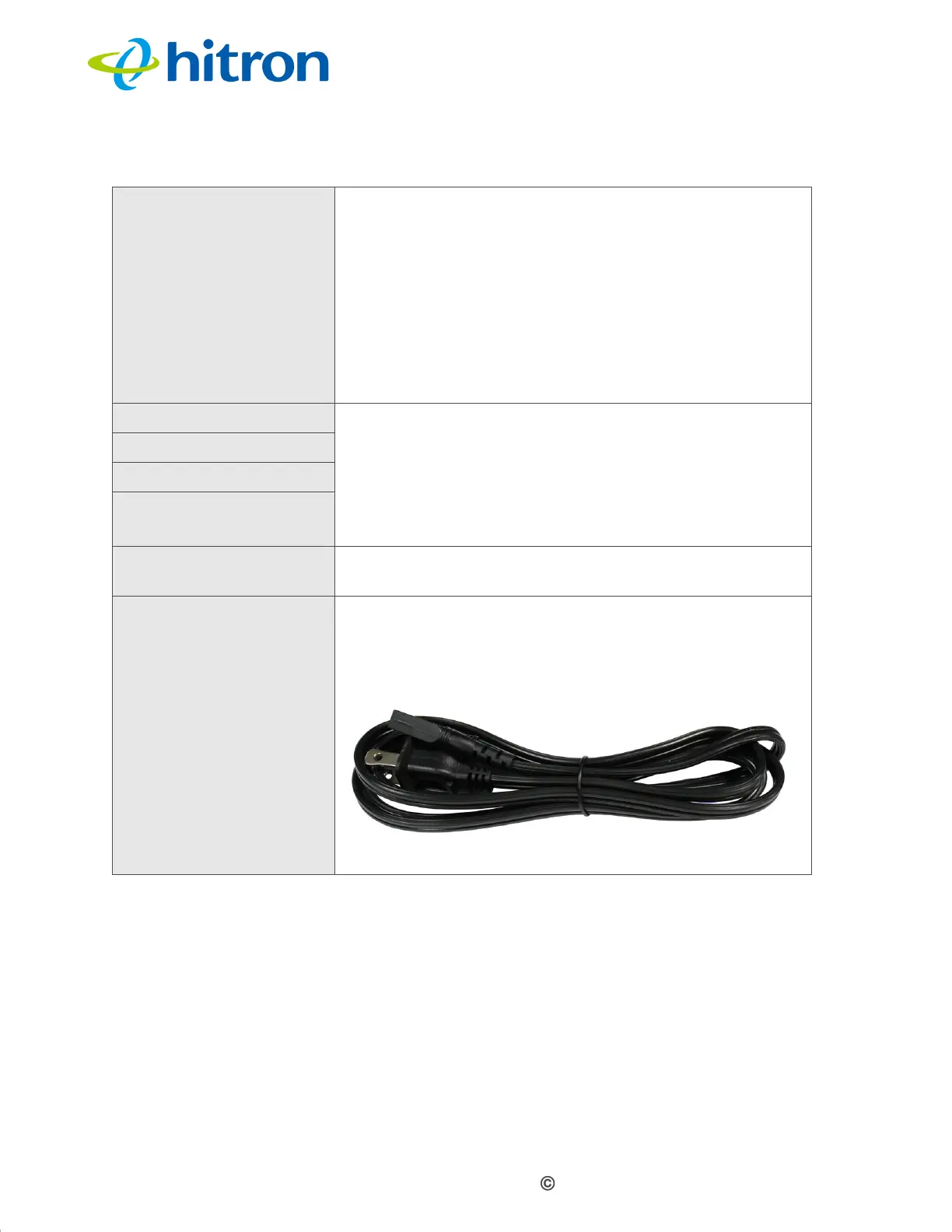

Figure 3: Power Cable
Table 2: Hardware Connections
