HMS AnyBus-X AB7607 - Page 57

EtherNet/IP 6-3
© 2005 HMS Industrial Networks. AB7607 User manual
to another network. There are two ports on the Anybus-X, one for EtherNet/IP and
one for DeviceNet.
I/O Messaging
The Anybus-X allows an EtherNet/IP scanner access to the I/O data of DeviceNet
slaves. The data produced by the DeviceNet slaves is collected in the Input Table
(IN) of the Anybus-X and becomes the EtherNet/IP Input I/O to the EtherNet/IP
scanner. EtherNet/IP Output data from the scanner is stored in the Anybus-X’s
Output Table (OUT) and sent to the DeviceNet slaves which consumes it.

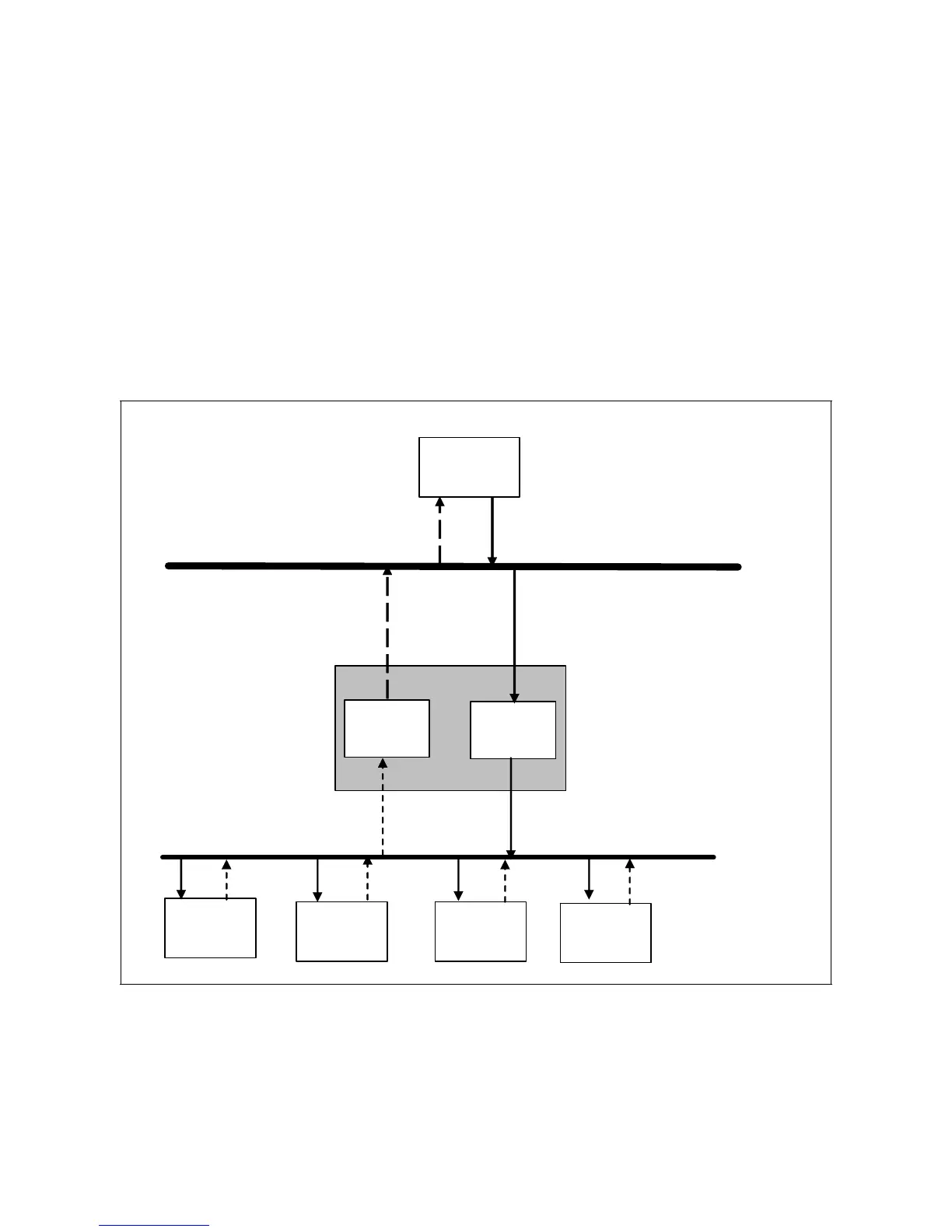

Figure 6-1 Anybus-X I/O Transfer
EtherNet/IP
DeviceNet
Slave
DeviceNet
Slave
DeviceNet
Slave
DeviceNet
Slave
In
p
ut
Out
p
ut
IN
OUT
EtherNet/IP
Input I/O
EtherNet/IP
Output I/O
Anybus-X
DeviceNet
EtherNet/IP
Scanner
