HMS AnyBus-X AB7607 - Mechanical Specifications

Specifications 11-2
© 2005 HMS Industrial Networks AB7607 User manual
Mechanical Specifications
Mechanical Rating
IP20/NEMA 1
Dimensions
I/O Data Sizes
Input
Maximum 508 bytes Input
Output
Maximum 504 bytes Output
Status
128 bytes of Status data

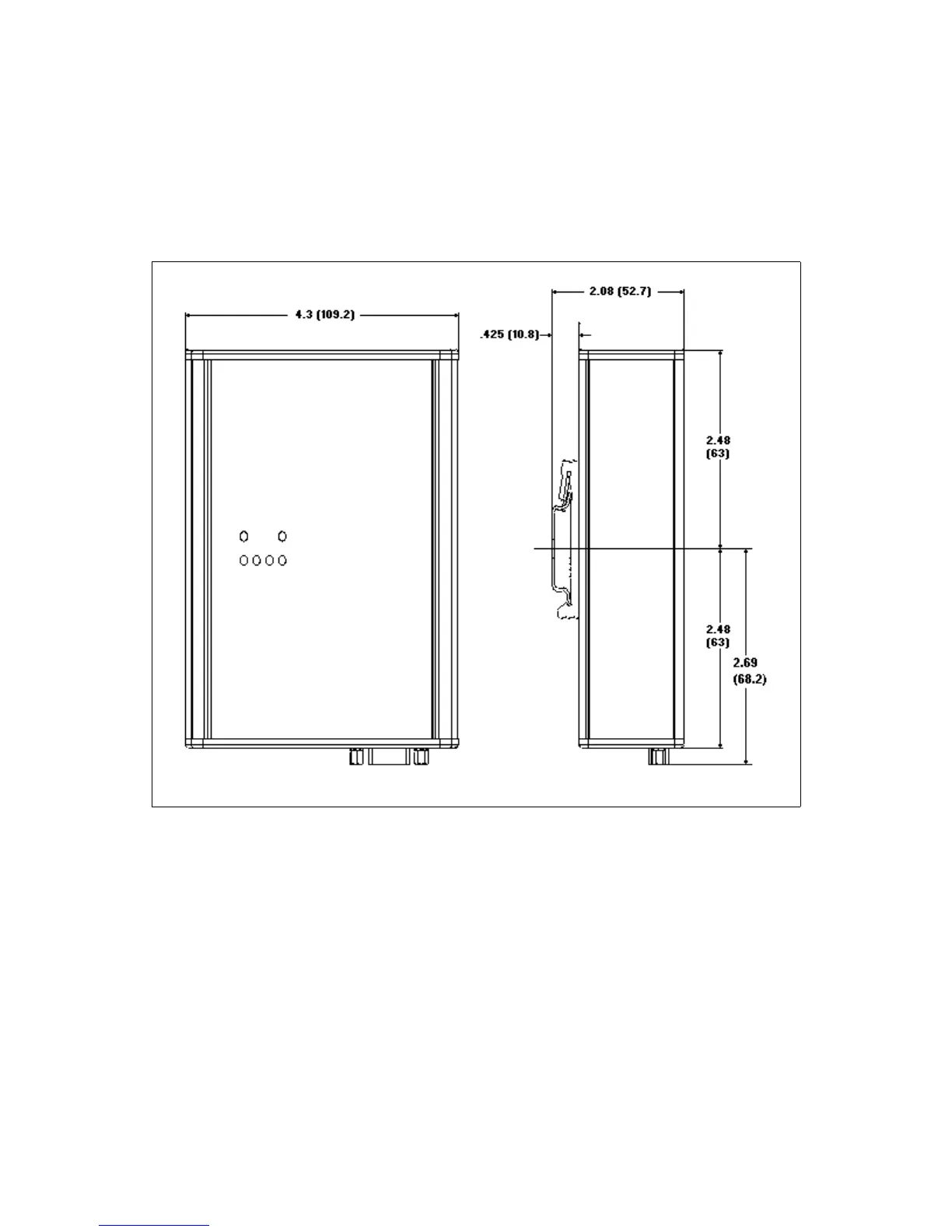

Figure 11-1 Anybus-X Mechanical Dimensions
