Connectors 12-2
© 2005 HMS Industrial Networks AB7607 User manual
DeviceNet
Use Phoenix connector part number MSTB 2,5/5-ST-5,08-ABGYAU
Pin Signal
1V-
2CAN_L
3Shield
4CAN_H
5V+

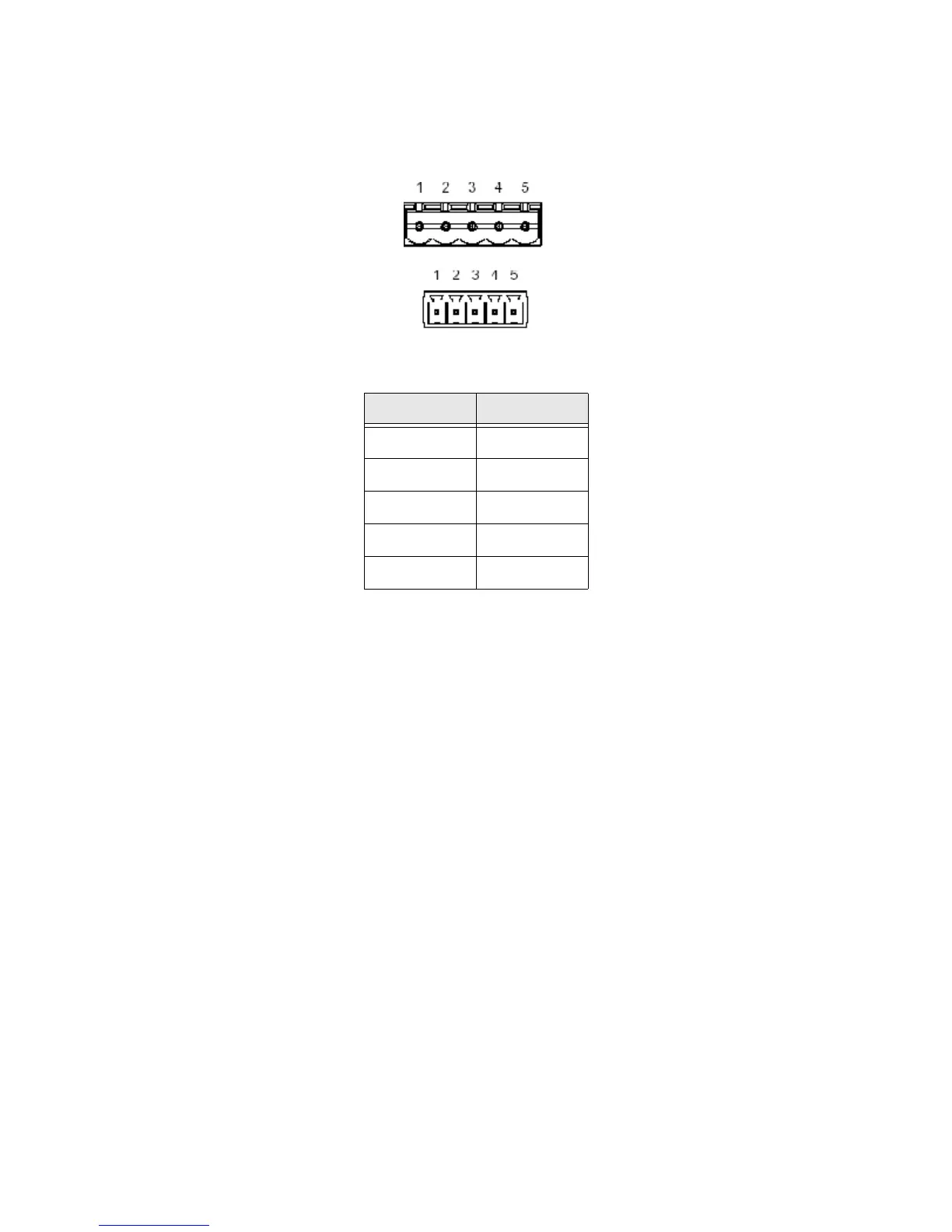

Table 12-2 DeviceNet Pinout
