Connectors 12-3
© 2005 HMS Industrial Networks AB7607 User manual

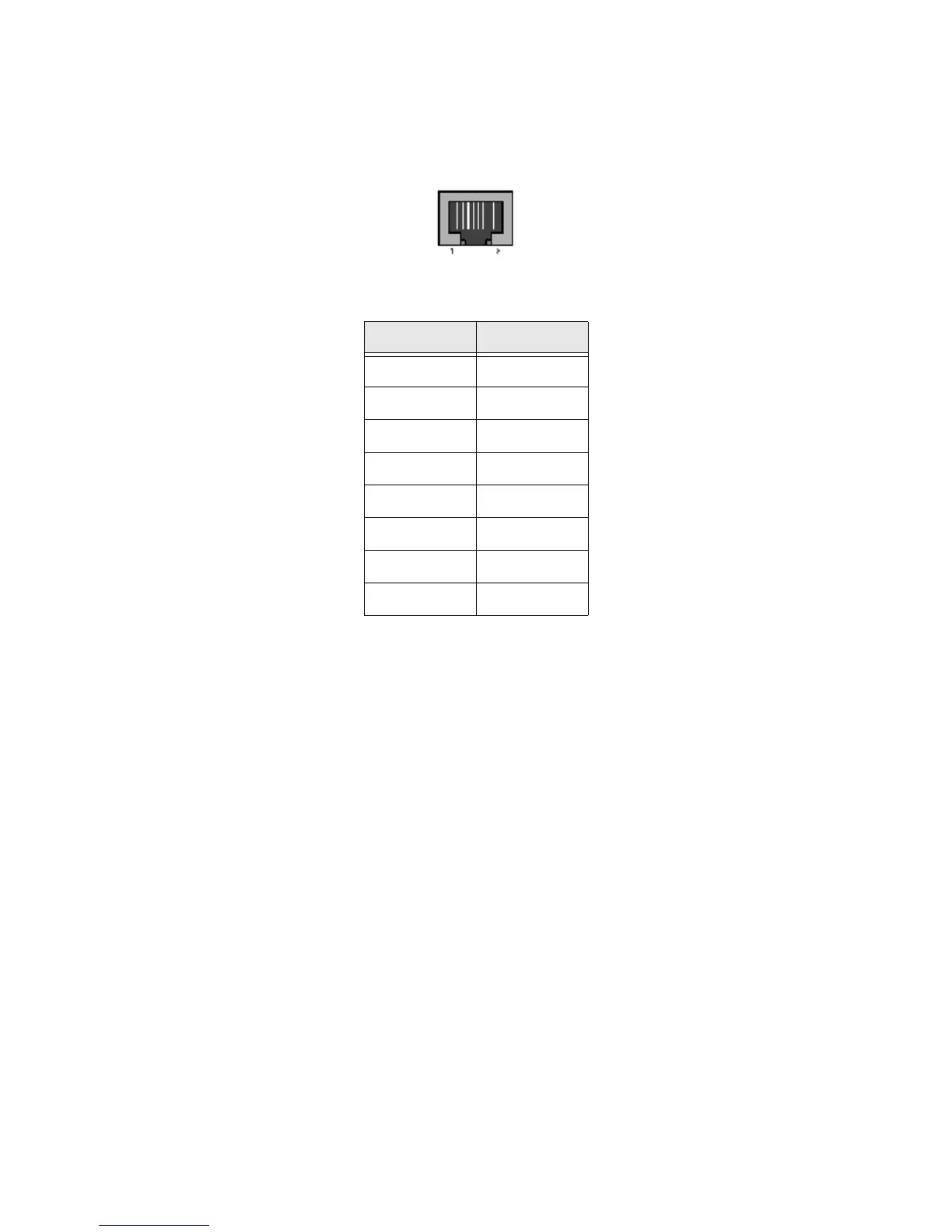

Ethernet RJ45
Pin Signal
1TD+
2TD-
3RD+
4Termination
5Termination
6RD-
7Termination
8Termination
Table 12-3 RJ45 Pinout
