Hobart Handler 140 Technical Manual

TM-258 267 Page 41
Handler 140
246 670-A
1
23
4
5
6
7
8
7
11
9
12
13
10

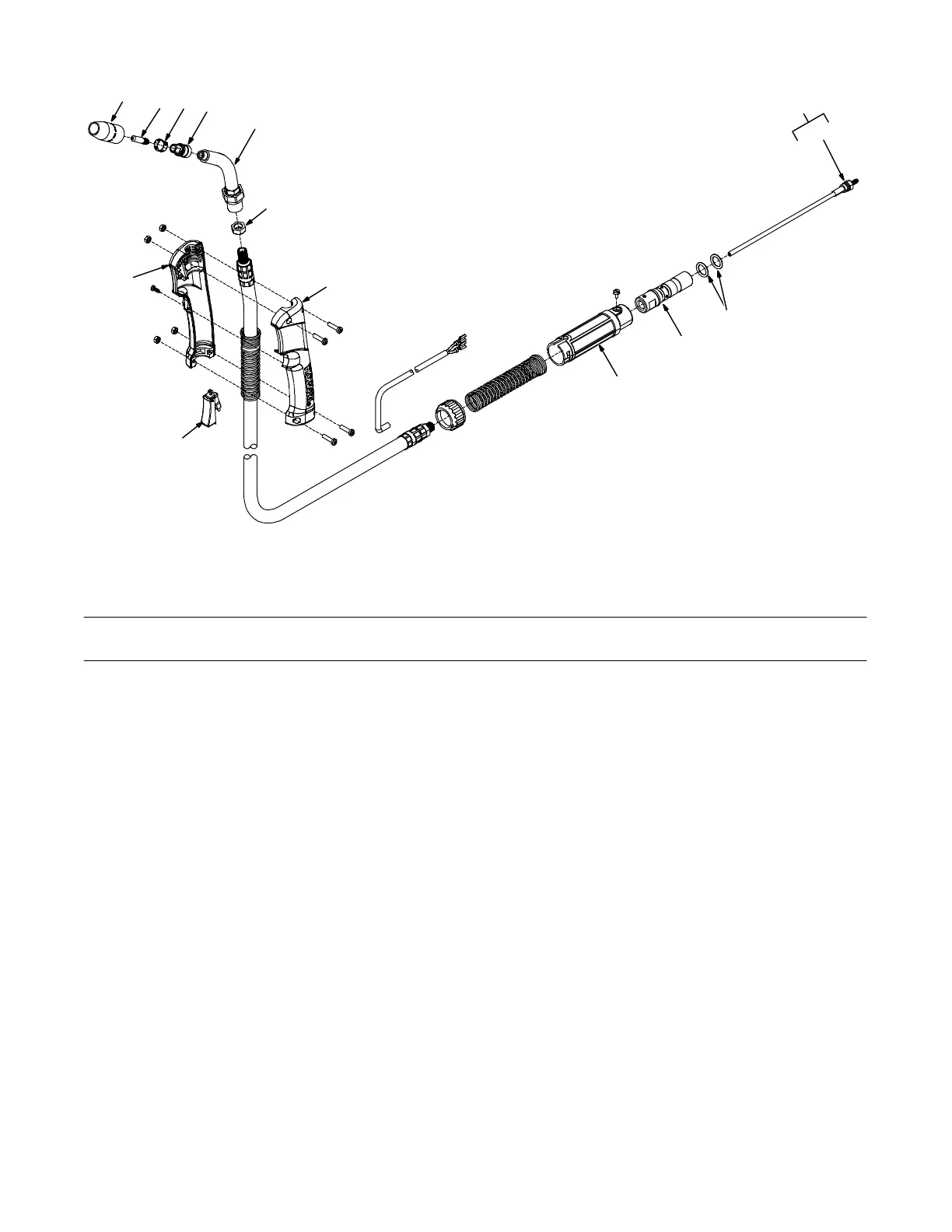

Figure 10-3. H100S2-10 Gun
Description
Part
No.
Dia.
Mkgs.
245 924
Item
No.
Figure 10-3. H100S2-10 Gun
Quantity
1 169 715 NOZZLE, slip type .500 orf flush 1... .......... .. ......................................
1 226 190 NOZZLE, flux cored slip type 1... ........ .. .........................................
2 087 299 TIP, contact scr .023 wire x 1.125 1... ........ .. .....................................
2 000 067 TIP, contact scr .030 wire x 1.125 1... ........ .. .....................................
2 000 068 TIP, contact scr .035 wire x 1.125 1... ........ .. .....................................
2 000 069 TIP, contact scr .045 wire x 1.125 1... ........ .. .....................................
3 170 470 RING, retaining 1... .......... .. .....................................................
4 169 716 ADAPTER, contact tip 1... .......... .. ...............................................
5 246 373 TUBE, head 1... .......... .. ........................................................
6 243 865 NUT, jam 1... .......... .. ..........................................................
7 242 832 HANDLE 1... .......... .. ...........................................................
8 225 410 SWITCH, trigger 1... .......... .. ....................................................
9 246 380 HOUSING, power pin 1... .......... .. ................................................
10 245 927 CONNECTOR, feeder 1... .......... .. ...............................................
11 197 123 O−RING, .312 ID X .062 70 duro buna−n2... .......... .. ..............................
12 194 010 LINER, monocoil .023/.025 wire x 15ft (consisting of) 1... ........ .. ....................
12 194 011 LINER, monocoil .030/.035 wire x 15ft (consisting of) 1... ........ .. ....................
12 194 012 LINER, monocoil .035/.045 wire x 15ft (consisting of) 1... ........ .. ....................
13 079 975 O-RING, .187 ID x .103CS rbr 1... .......... .... ......................................
OPTIONAL
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.

Hobart Handler 140 Specifications

General

Input Voltage	115V
Welding Amperage Range	25-140 A
Duty Cycle	20% @ 90A
Wire Feed Speed Range	40-700 IPM
Weldable Materials	Mild Steel, Stainless Steel, Aluminum
Weight	57 lbs
Processes	MIG (GMAW), Flux-Cored (FCAW)
Input Current	20A
Welding Thickness	24 ga. - 1/4 in.
Input Phase	Single Phase
Maximum Open Circuit Voltage	28V
Wire Size Range	0.023 - 0.035 in
