Hobie Tiger User Manual

8
1.

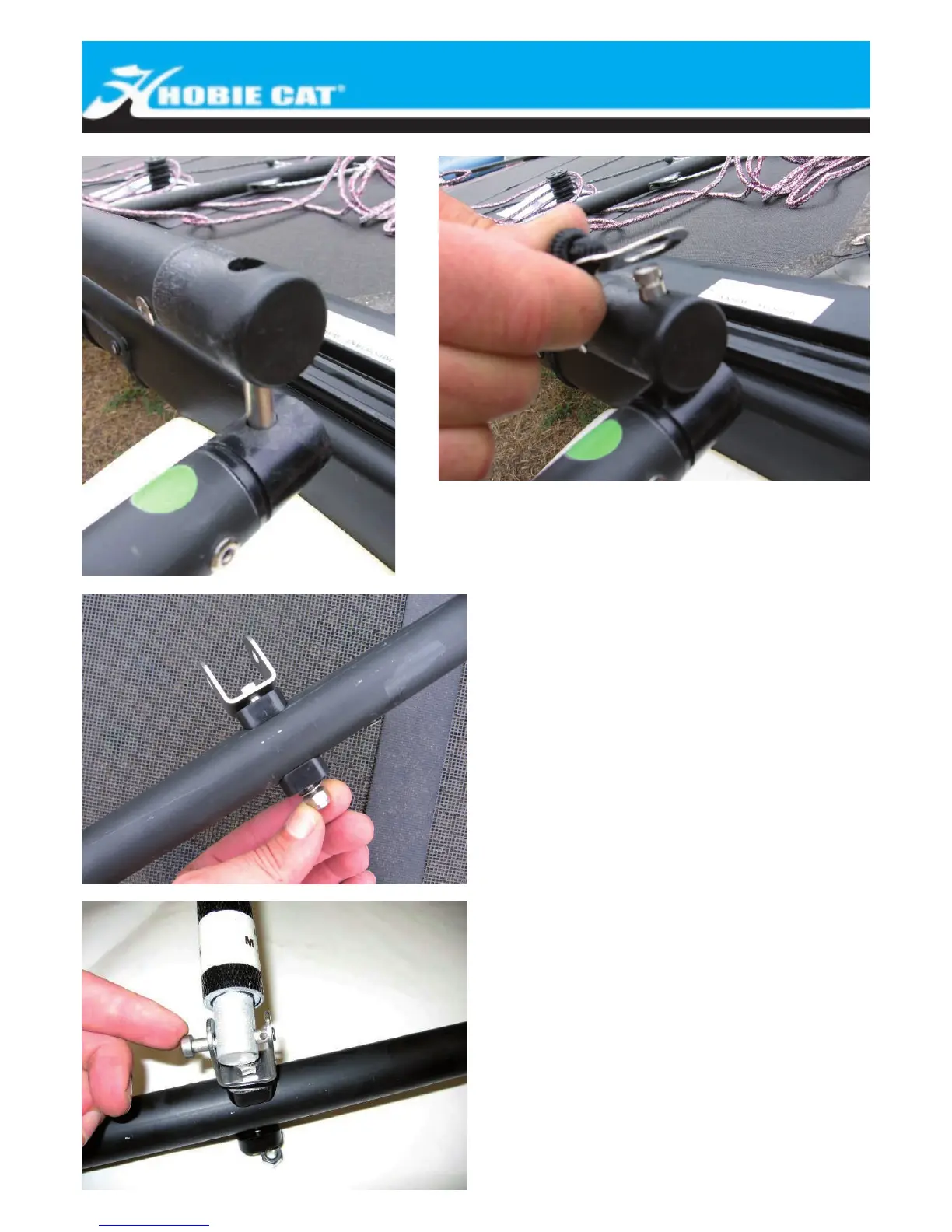

Take the tiller crossbar and insert the right side into the
right rudder arm and the left side into the left rudder arm.
2. Take the yoke connection of the tiller extension
and fix it into the middle of the tiller crossbar
3. Then fix the tiller head into the yoke connection
as shown on the photo.
Tiller crossbar & extension
