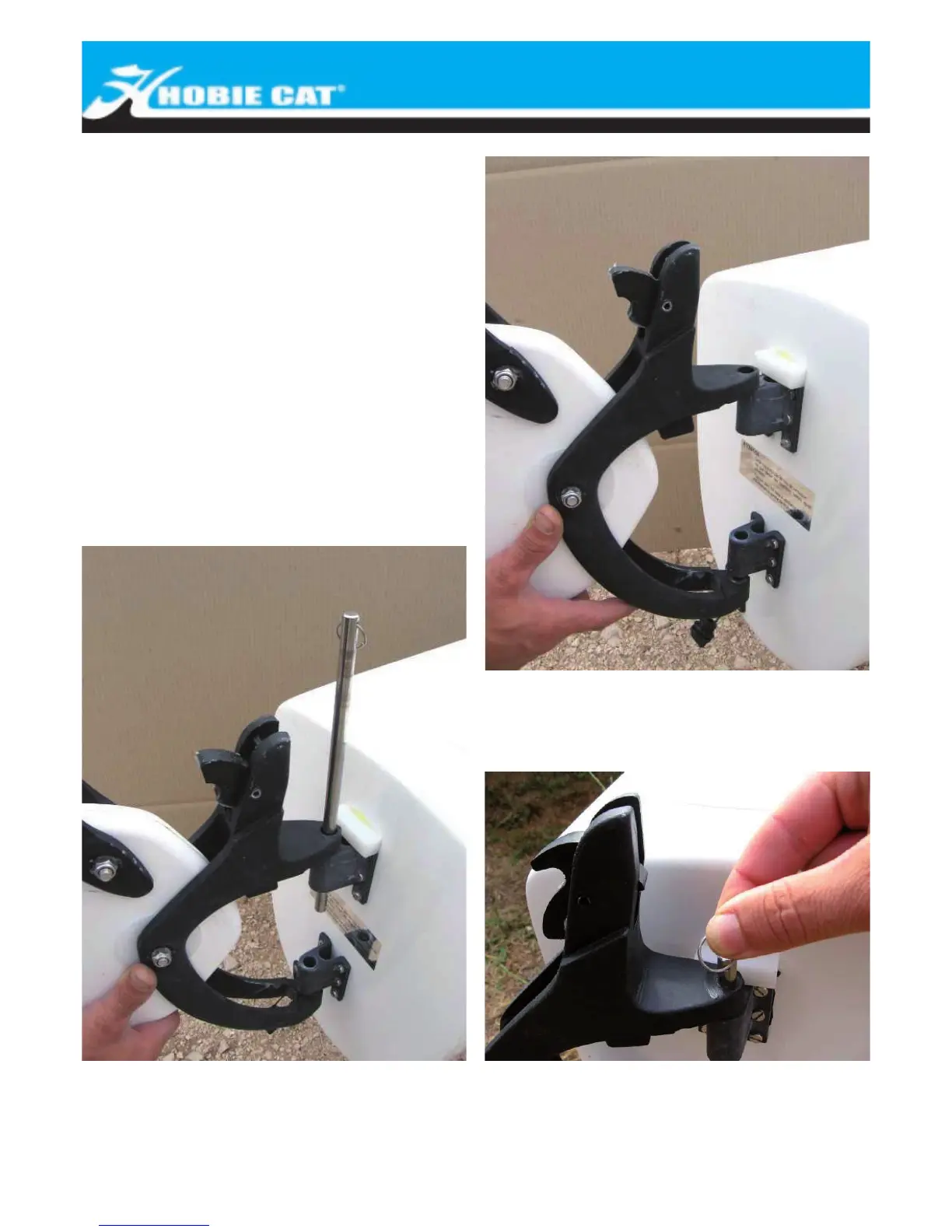

Rudder assembly
1.
Identify the right rudder from the left rudder
(green sticker = right ; red sticker = left)
Take the left rudder, and align the lower rudder
casting onto the rear gudgeon.
2. Insert the rudder pin.
Do not forget to put in the two split rings: one on top and one at the bottom of the rudder pin.
Repeat the procedure for the right rudder assembly.
