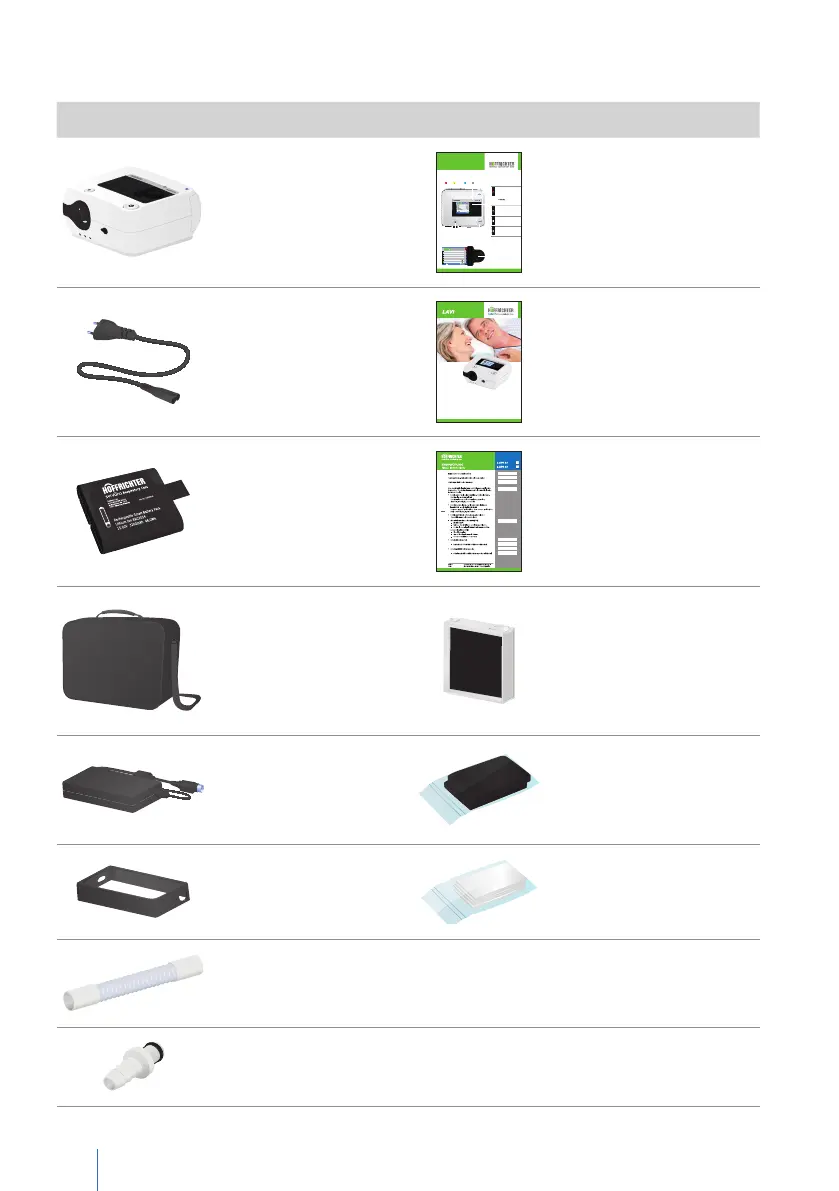

Scope of delivery
Figure Name
FiO
2
LAVI ventilator
Softkeys
The softkeys can be assigned
different functions:
Alarm key
• Confirmation of all current
alarms and no longer
active alarms
• Muting of alarm for
• Cancel alarm sound
suppression
Escape key
• Exit current screen or
selected parameter
• Cancel action
Heater key
Switch the heater of the
plug-in humidifier on and off
Return to Home screen
Unlocking key
Disconnect Aqua-
TREND uni from LAVI
for device types 9LV401 and 9LV402 as of device
software 1.300
LAVI Brief instruction
Operator controls
Info LED
HIGH MEDIUM LOW
Multifunction knob MFK
• Navigate in the menus
• Set parameters
• Other actions
on/off key
• Start ventilation: press briefly
• Stop ventilation: press briefly + MFK
• Switch device on: Press ≥ 4 s
• Switch device off: Press ≥ 4 s
PCV
Set 1
75%
50
40
30
20
10
0
p
19.8
hPa f
12
bpm V
I
0.570
lI:E
1:1.5
Set 3Set 2
Mode
IPAP
PEEP
Frequency
Time Inspiration
I-Slope
E-Slope
PCV
20.0 hPa
5.0 hPa
12 bpm
2.0 s
3
3
Set 1
Device is powering
up or is running on
line power
Brief instructions
Mains cable
Ventilateur pulmonaire
User´s manual
for patients
for device types 9LV401 and 9LV402 as of device software x.xxx
User’s manual for patients
Internal battery RRC2054
(Only LAVI 40)
Final inspection log
Carrying case
Spare filter cassette, com-
plete (open) with filters
Switched-mode power
supply
FSP090-RACM1
Spare course filter,
1 pack (2 units)
Power supply unit
holder with integrated
strain relief
Spare fine filter,
1 pack (5 units)
Leakage tube circuit
(L = 180 cm, ∅ 22 mm)
Straight O
2
connec-
tion adapter
