68 Chapter 6: Alarms and messages
Visible alarm output
Visible alarms are displayed as follows:
• via the info LED
• on the toolbar
• as a textbox
Alarm output via the info LED
The info LED may take on 3 different statuses, to signify the current alarm priority.
• Red, flashes rapidly (2 Hz)
→
high-priority alarm
• Yellow, flashing (0.5 Hz)
→
medium-priority alarm
• Turquoise, glows steadily
→
low-priority alarm
If multiple alarms are triggered simultaneously or in quick succession, the alarm with the
highest priority will be displayed first. Still, all occurring alarms are listed in the event log.
Alarm output on the toolbar
Alarms are shown on the toolbar by the “Alarm active” icon and displayed with an
alarm message. The icon’s colour indicates the alarm priority:
• Red symbol
→
high-priority alarm
• Yellow symbol
→
medium-priority alarm
• Turquoise symbol
→
low-priority alarm
If multiple alarms are triggered simultaneously or in quick succession, the alarm with
the highest priority will be displayed first.
PCV
Set 1
1:45 High Inspiration Volume
50
40
30
20
10
0
p 19,8 hPa f
12 bpm V
I
0,570 lI:E 1:1,5
BA

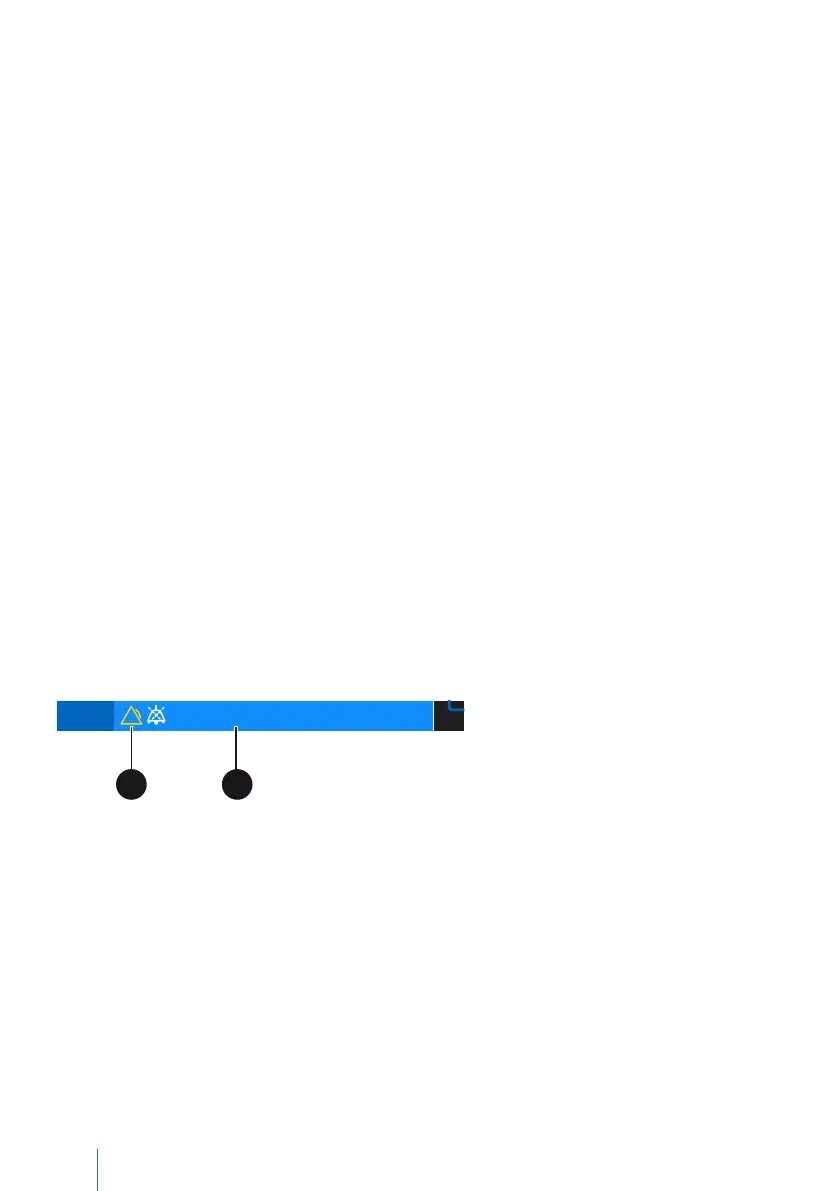

A “Alarm active” symbol B Alarm message
Figure 27: Alarm output on the toolbar
