Chapter 3: Description of device 29

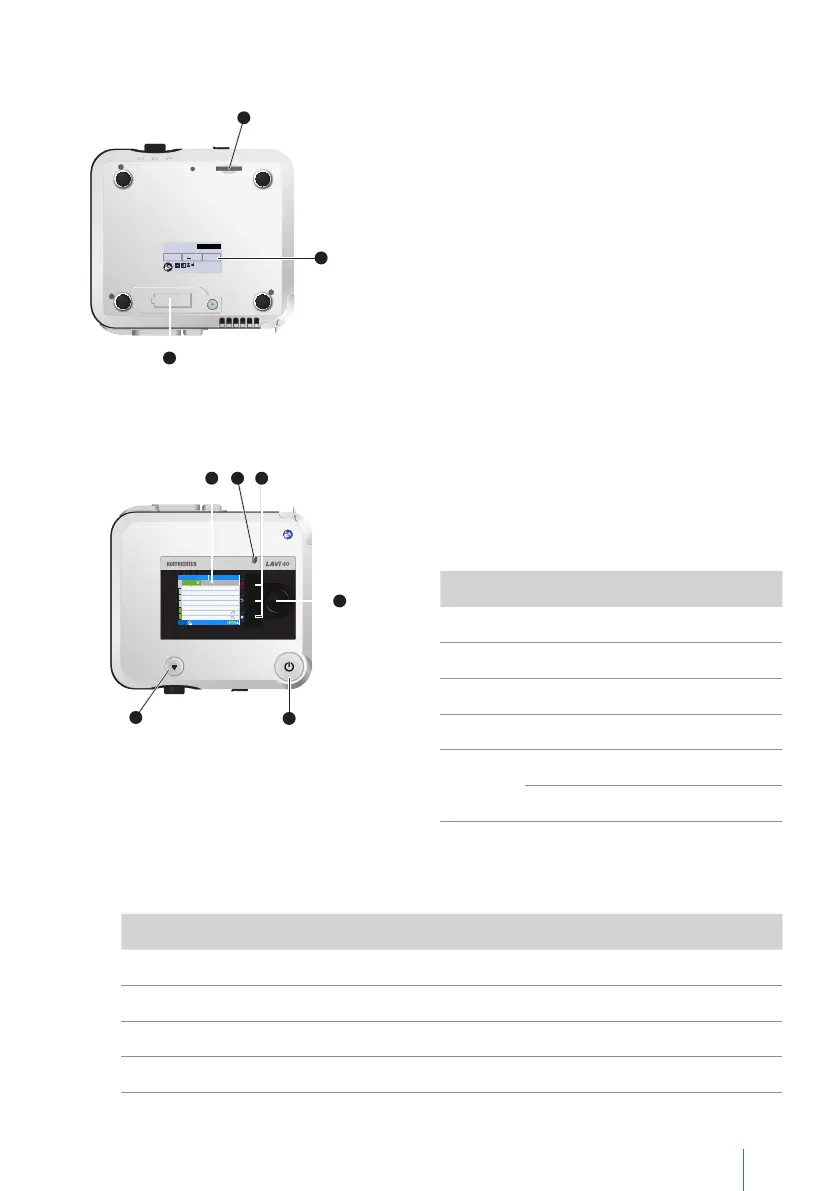

Bottom of device
SN: CEA1700011
LAVI 40
Ventilator
Type: 9LV402
IP22
Made in Germany
HOFFRICHTER GmbH
Mettenheimer Str. 12/14
19061 Schwerin
GERMANY
O
2
-INPUT
max. 15l/min
500 hPa
Li-Ion RRC2054
15V / 3.2Ah / 48Wh
DC-INPUT
24V max. 3.75A
3
2
1
1 SD card slot
An SD card here can be inserted here.
2 Rating plate
3 Battery compartment cover
The internal battery is located under
the cover. See also page 39.
Figure 5: Bottom of device
Top of device
PCV
Set 1
75%
50
40
30
20
10
0
p
19.8
hPa f
12
bpm V
I
0.570
lI:E
1:1.5
Set 3Set 2
Mode
IPAP
PEEP
Frequency
Time Inspiration
I-Slope
E-Slope
PCV
20.0 hPa
5.0 hPa
12 bpm
2.0 s
3
3
Set 1
6
5
4
1 32
1 Display
2 Info LED
3 It also provides information on the
alarm/device status priority
Colour State Priority/status
Red Flashing HIGH
Yellow Flashing MEDIUM
Turquoise Lit LOW
Green Lit Ventilation is running
White
Flashing Device is booting
Lit Device for operation
Figure 6: Top of device
4 Softkeys
See also page 30.
5 Multi-function key MFK
(for navigating the menus)
6 On/off button
Function Action
Start ventilation Press briefly
Stop ventilation Press briefly and confirm with MFK
Switching on the device Press for > 4 s
Switching off the device Press for > 4 s
7 Release button for integrable humidifier AquaTREND uni.
