Chapter 4: Commissioning 43
Setup with external humidifier
Please note:
•
Use an approved humidifier according to DIN EN ISO 8185 with a humidity out-
put of > 33 mg/l.
• Follow the manufacturer user’s manual.
• The humidifier should be positioned below the patient and the device, so that no
water can accumulate in the patient’s lungs or in the ventilator. If water accumu-
lates in the tube circuit, we recommend using water traps.
Connect the components as follows:
FiO
2
P
A
T
I
E
N
T
F
D
B
C
D
E
A

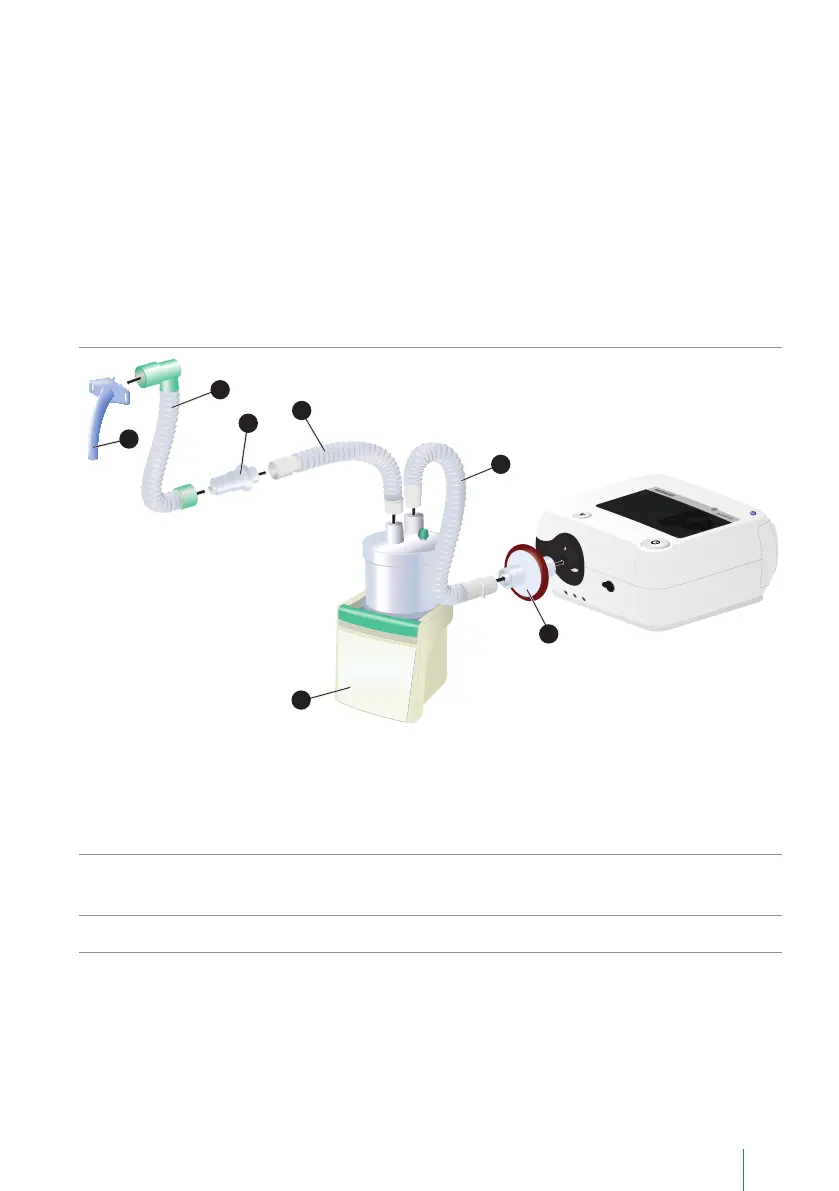

A Tracheal cannula B Catheter mount tube C Passive exhalation valve D Leakage tube
E Bacterial filter F Humidifier
Figure 13: System setup, invasive ventilation with external humidifier
1. Connect all components as per Figure 13.
2. Calibrate the connected tube circuit (see page 45).
