44 Chapter 4: Commissioning
Setup with HME filter
If no humidifier is used, we recommend using an HME filter to maintain the moisture
of the respiratory gas. A “combined filter” consisting of an HME filter and a bacterial
filter is well-suited (e.g. Medisize Hygrovent HMEF).
Please note: When using a HME filter, read the user’s manual from the respective
manufacturer. In particular, follow all information related to replacement intervals.
Connect the components as follows:
FiO
2
P
A
T
I
E
N
T
B
D
E
A
C

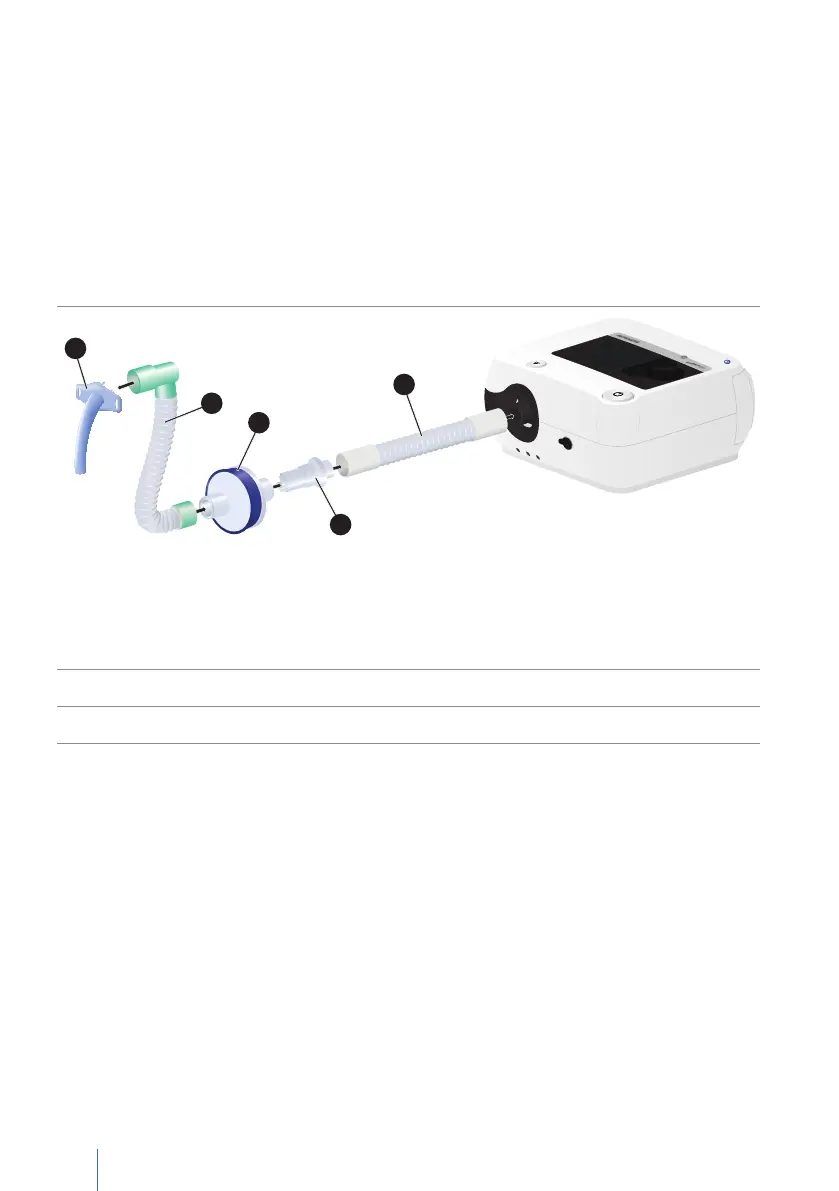

A Tracheal cannula B Catheter mount tube C HME filter D Leakage tube
E Passive exhalation valve
Figure 14: System setup, invasive ventilation with HME filter
1. Connect all components as per Figure 14.
2. Calibrate the connected tube circuit (see page 45).
