Chapter 4: Commissioning 41
System setup, non-invasive ventilation
Risk of injury due to tube circuit and cable!
If laid incorrectly, the tube circuit or other cables (e.g. pulse
oximetry) could cause patient strangulation.
Ö
Tubes and cables must always be positioned so that they
cannot wrap around the neck or limbs of the patient.
Risk of suffocation due to closed exhalation valve!
If the opening of the exhalation valve is closed, the patient
could suffocate.
Ö
Make sure that the opening of the exhalation valve remains
open so that expired air can escape.
During non-invasive ventilation, the user must always be able to exhale (expire). This
can either be accomplished using a vented mask with integrated exhalation valve or a
non-vented mask with separate exhalation valve.
The exhalation valve is optionally available as an accessory.

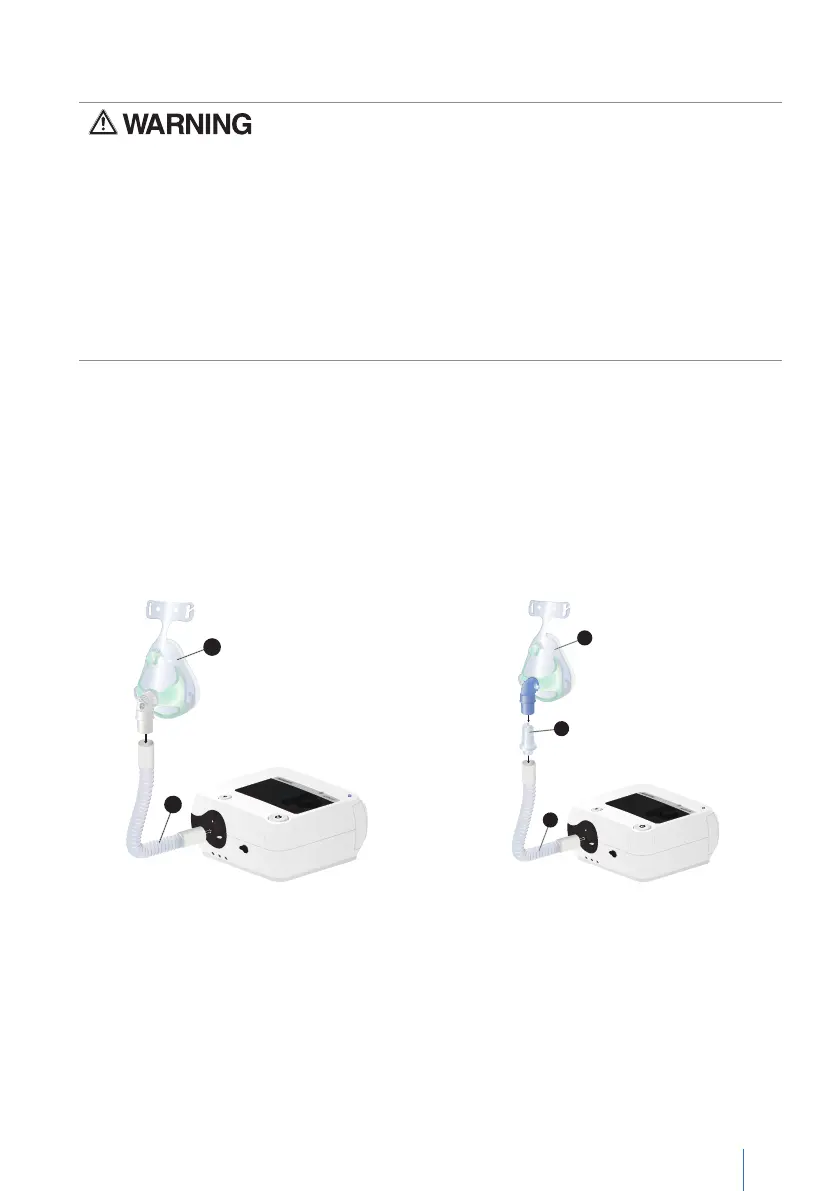

Setup with vented mask Setup with non-vented mask
Connect the components as follows: Connect the components as follows:
FiO
2
B
A
FiO
2
C
A
B
A Vented mask B Leakage tube A Non-vented mask B Passive exhalation
valve C Leakage tube
Figure 11: System setup, non-invasive
ventilation with vented mask
Figure 12: System setup, non-invasive
ventilation with non-vented
mask
