3.

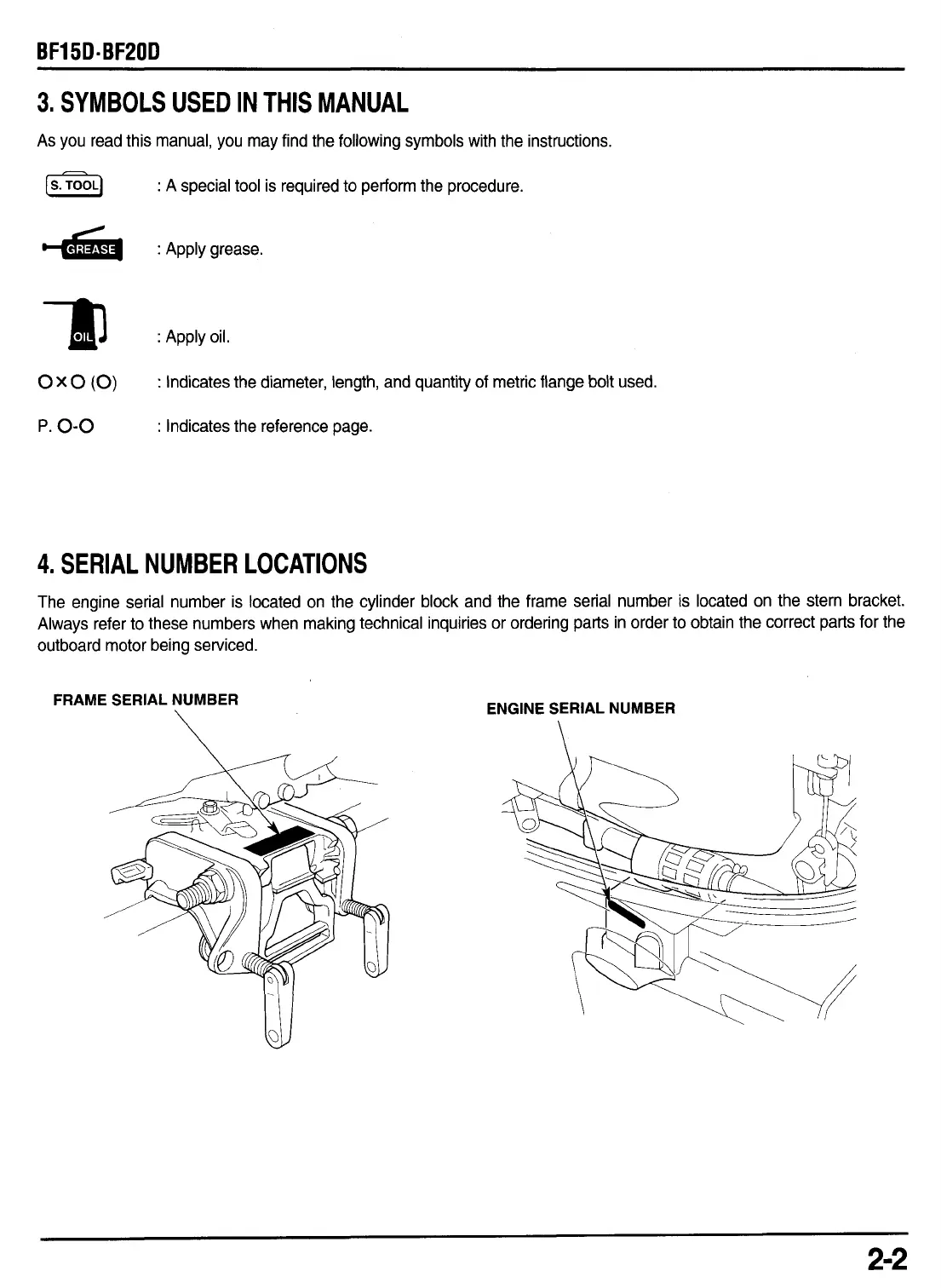

SYMBOLS USED IN THIS MANUAL
As you read this manual, you may find the following symbols with the instructions.
[S.
TOOL]
3
0x0
(0)
P.
0-0
:
A special tool is required
to
perform the procedure.
:
Apply grease.
:
Apply oil.
:
Indicates the diameter, length, and quantity of metric flange
bolt
used.
:
Indicates the reference page.
4.
SERIAL NUMBER LOCATIONS
The engine serial number is located on the cylinder block and the frame serial number is located on the stern bracket.
Always refer to these numbers when making technical inquiries or ordering parts in order to obtain the correct parts for the
outboard motor being serviced.
FRAME SERIAL NUMBER
\
ENGINE SERIAL NUMBER
2-2
